Engineered for micro-machining applications, the ILIX 6019 drill provides superior rigidity and wear resistance through fine-grain carbide construction. The optimized 135° tip angle reduces thrust forces while improving hole quality and positional accuracy. Its straight shank DIN 6535 HA configuration guarantees precise clamping in high-speed machining environments and CNC operations.

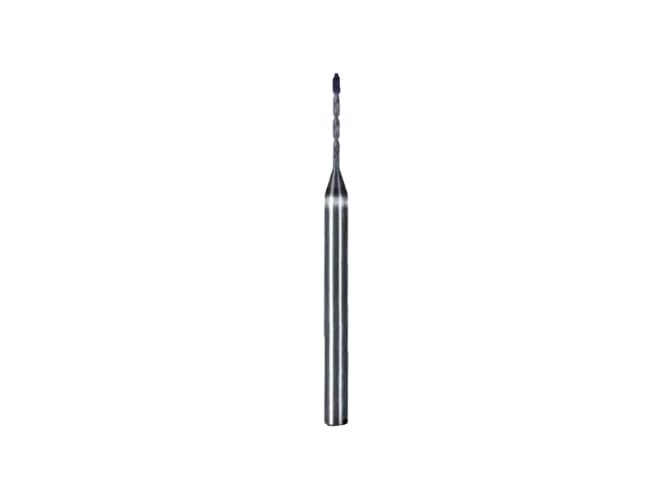

Micro Drills 2 Flute 135° Tip 6019 DIN 6535 HA ILIX
The ILIX 6019 two-flute micro drill offers consistent performance for precision industries such as electronics, medical components, and toolmaking. Advanced flute geometry supports efficient chip removal even at small diameters, while the robust carbide structure increases tool life. Designed for demanding tolerances, it enables smooth drilling with excellent surface finish and dimensional stability.
Features
Overview
| Specification | Details |
|---|---|
| Product Name | Micro Drill 2 Flute 135° Tip 6019 |
| Brand | ILIX |
| Tool Material | Solid Carbide (Micro-grain) |
| Flute Count | 2 Flutes |
| Point Angle | 135° |
| Shank Standard | DIN 6535 HA |
| Diameter Range | Approx. 0.1 – 3.0 mm (depending on model) |
| Cooling | External coolant recommended |
| Applications | Steel, stainless steel, cast iron, non-ferrous materials, plastics |
| Industry Use | Precision engineering, electronics, medical, mold & die |
