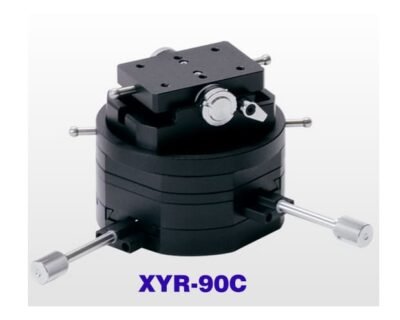

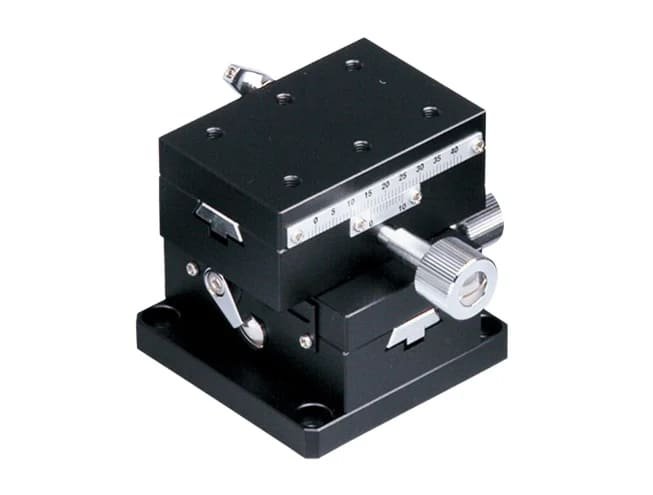

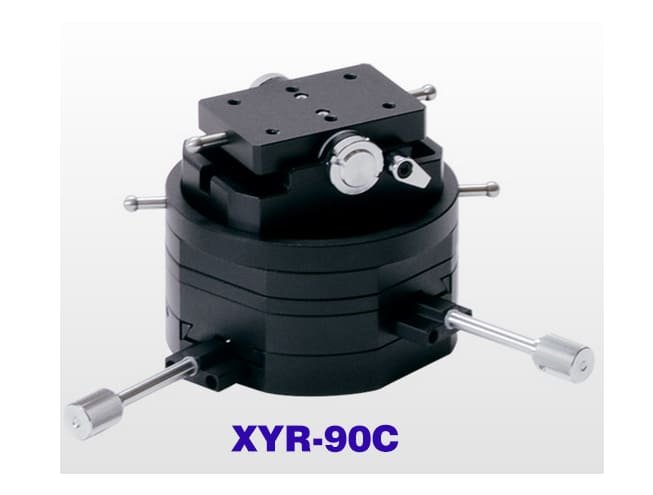

Miruc Dovetail Stage for Microscopy
The Miruc Dovetail Stage is a precision sliding stage tailored for microscopy positioning and inspection tasks. Crafted in Japan, it delivers smooth, play-free travel with excellent load-bearing performance. Its dovetail surface contact design ensures long-stroke accuracy, and it supports custom arrangements and combinations for advanced optical setups.
35 people are viewing this product right now
🔥 5 items sold in last 3 hours
Designed for fine adjustment and positioning in microscopes and inspection equipment, the Miruc Dovetail Stage offers high accuracy with smooth sliding motion. Its craftsmanship minimizes backlash and unevenness, while kit combinations with measuring scopes or lenses further enhance flexibility and measurement precision.
Miruc Dovetail Stage for Microscopy
The Miruc Dovetail Stage series includes slide operation and rack-and-pinion types to suit diverse microscopy applications. Built with premium materials and traditional sliding techniques, these stages deliver reliable positioning control, durable performance, and compatibility with automation and tooling environments. OEM custom options are also available.
Features
Overview
| Specification | Value |
|---|---|
| Stage Type | Dovetail XY Axis Stage (Rack & Pinion) |
| Stage Surface | 40 × 90 mm |
| Travel Distance | ±35 mm |
| Load Capacity | 34.3 N (approx 3.5 kgf) |
| Travel Accuracy (Straightness) | 30 μm |
| Travel Accuracy (Parallelism) | 30 μm |
| Travel per Handle Rotation | 18 mm |
| Minimum Scale Reading | 0.1 mm |
| Material | Aluminum alloy with matte finish |
