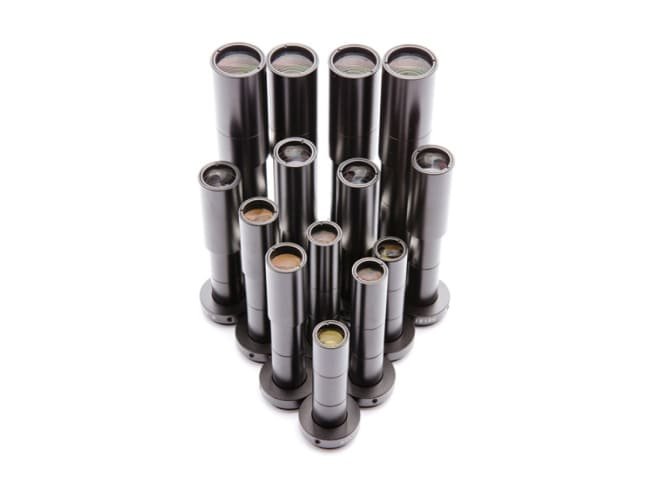

Miruc Telecentric Lens for Inspection
The MIRUC Telecentric Lens series delivers distortion-free imaging ideal for precision inspection and measurement in machine vision systems. These lenses maintain consistent magnification regardless of object height variation, offering high resolution and minimized distortion. Multiple models support different working distances, with straight and coaxial lighting options for versatile industrial applications.
33 people are viewing this product right now
🔥 8 items sold in last 3 hours

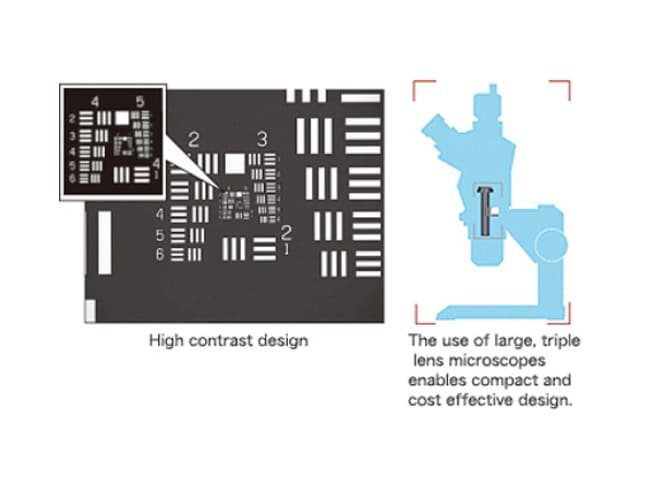

Designed for machine vision and quality control, MIRUC telecentric lenses deliver true telecentricity for accurate size measurement and positioning. Their optical design reduces perspective error and contrast issues, minimizing software correction requirements. Compact and cost-effective, they are suitable for automated inspection, PCB checking, and high-precision metrology tasks.
Miruc Telecentric Lens for Inspection
MIRUC’s telecentric optics are optimized for industrial imaging tasks where measurement accuracy and low distortion are critical. With series covering a range of working distances (40 mm to 170 mm), these lenses ensure consistent imaging performance for device mounting in production systems, reducing perspective effects and enabling precise visual inspection.
Features
Overview
| Model | Magnification | Working Distance (WD) | Depth of Field | Resolution | TV Distortion | Weight (Without Coaxial) | Weight (With Coaxial) | C-Mount | Field of View (1/2″) | Field of View (1/3″) |
|---|---|---|---|---|---|---|---|---|---|---|
| MRC2-40 | 2x | 40.2 mm | 0.29 mm | 4.8 μm | -0.01% | 27 g | 33 g | Yes | 2.4 × 3.2 mm | 1.8 × 2.4 mm |
| MRC4-40 | 4x | 40 mm | 0.14 mm | 4.8 μm | -0.01% | 27 g | 33 g | Yes | 1.2 × 1.6 mm | 0.9 × 1.2 mm |
| MRC6-40 | 6x | 39.5 mm | 0.10 mm | 4.8 μm | 0.004% | 32 g | 38 g | Yes | 0.8 × 1.07 mm | 0.6 × 0.8 mm |
| MRC8-40 | 8x | 39.2 mm | 0.07 mm | 4.8 μm | 0.004% | 37 g | 43 g | Yes | 0.6 × 0.8 mm | 0.45 × 0.6 mm |
| MRC08-65 | 0.8x | 65 mm | 1.85 mm | 12.4 μm | -0.003% | 41 g | 47 g | Yes | 6 × 8 mm | 4.5 × 6 mm |
| MRC1-65 | 1x | 65.3 mm | 1.33 mm | 11.2 μm | -0.001% | 36 g | 42 g | Yes | 4.8 × 6.4 mm | 3.6 × 4.8 mm |
| MRC2-65 | 2x | 65 mm | 0.33 mm | 5.6 μm | -0.005% | 35 g | 41 g | Yes | 2.4 × 3.2 mm | 1.8 × 2.4 mm |
| MRC4-65 | 4x | 64.2 mm | 0.13 mm | 4.3 μm | -0.01% | 34 g | 40 g | Yes | 1.2 × 1.6 mm | 0.9 × 1.2 mm |
| MRC6-65 | 6x | 63.8 mm | 0.09 mm | 4.4 μm | 0.004% | 40 g | 46 g | Yes | 0.8 × 1.07 mm | 0.6 × 0.8 mm |
| MRC8-65 | 8x | 63.8 mm | 0.06 mm | 4.4 μm | 0.004% | 46 g | 52 g | Yes | 0.6 × 0.8 mm | 0.45 × 0.6 mm |
