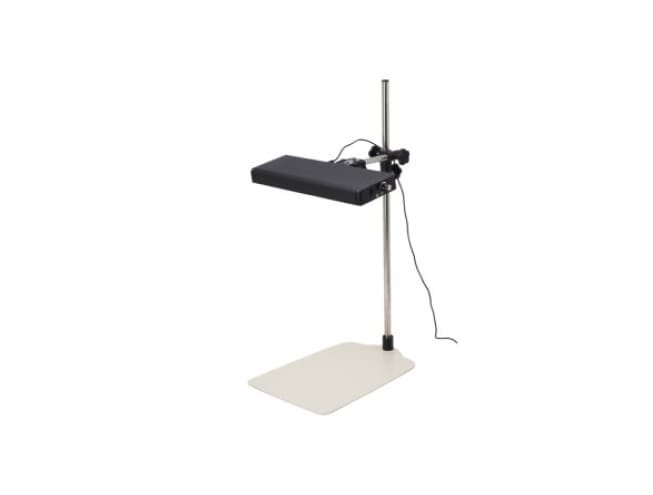

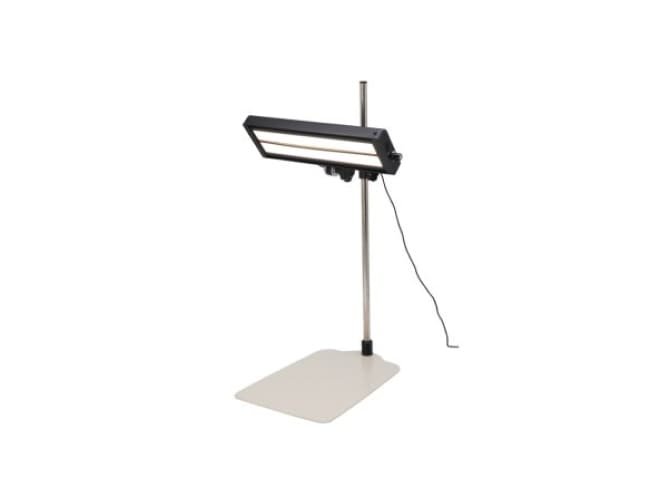

Modelight Series EL270B Otsuka Optics
The Modelight Series EL270B delivers high-intensity, uniform illumination for precision inspection and assembly tasks. Designed by Otsuka Optics, it combines advanced optical engineering with durable construction to ensure reliable performance in industrial environments. The system minimizes shadows and glare, improving visual clarity and reducing operator fatigue during prolonged, detail-oriented work sessions.
45 people are viewing this product right now
🔥 11 items sold in last 3 hours
Engineered for professional workstations, the EL270B Modelight provides stable, flicker-free lighting optimized for accuracy and comfort. Its robust structure supports continuous use in manufacturing and laboratory settings. The lighting design enhances contrast and visibility, helping users detect fine defects, perform intricate assembly, and maintain consistent quality standards with confidence and efficiency.
Modelight Series EL270ST Otsuka Optics
The EL270B is part of Otsuka Optics’ Modelight series, known for precision illumination technology and ergonomic usability. It offers dependable brightness with energy-efficient performance, making it suitable for electronics inspection, medical device manufacturing, and research environments. The adjustable positioning allows users to direct light exactly where needed for optimal workflow productivity.
Features
Spesification
| Illumination | |
|---|---|
| Light source | OLED lighting panel |
| Input rated input voltage | 100～240V・50/60Hz・A plug ※it can be used from 125 to 240V,By changing the cord with AC plug. |
| Rated power consumption | 13W |
| Dimming function | Yes（100％〜10％） |
| Illuminance directly under the center (Max) | 3200LX/150mm 1100LX/300mm 430LX/500mm (measured by our measurement method) |
| Illuminance directly under the center (Min) | 240LX/150mm 80LX/300mm 30LX/500mm (measured by our measurement method) |
| Color temperature | 4000K( white ) |
| Average color rendering index （Ra） | 90 |
| Luminous surface size (mm) | L273×W30 |
| Total luminous flux （lm） | 200 (パネル1枚あたり） |
| AC adapter model, rating | UNIFIVE336-2415(24V/1.5) weigh：270ｇ |
| 本 体 | |
| Weight(Kg) | 3.5 (Main body weight)) |
| Dustproof/waterproof protection class | P20 (for indoor use only) |
