The TE270D from Otsuka’s Modelight Series uses an advanced OLED panel to deliver consistent, glare-free lighting with adjustable brightness. With a balanced 4000 K color temperature and Ra ≈ 90, it enhances visual clarity during meticulous work. Its flexible positioning supports ergonomic inspection setups.

Modelight Series TE270D Otsuka Optics

Otsuka Optics’ Modelight TE270D offers next-generation under-shelf lighting for inspection and precision tasks. Its dimmable OLED illumination and clamp-mount flexibility adapt to varied workstations. Operating at 7–13 W and compatible with global voltages, it’s ideal for indoor industrial and lab applications requiring accurate visual assessment.

Otsuka TE270D 2

Features

01
OLED Lighting

Uses high-quality OLED panels for smooth, even illumination.

02
Dimmable Brightness

Adjustable from 100 % to 10 % for visual comfort.

03
High Color Rendering

Ra around 90 for accurate color perception.

04
Flexible Mounting

Clampable to shelves / work surfaces (15–60 mm).

05
Wide Input Voltage

Compatible with 100–240 V AC systems.

Spesification

Otsuka TE270D 2
Illumination
Light sourceOLED lighting panel
Input rated input voltage100~240V・50/60Hz・Aplug
※it can be used from 125 to 240V,By changing the cord with AC plug.
Rated power consumption7W
Dimming functionYes(100%〜10%)
Illuminance directly under the center (Max)1120LX/150mm 360X/300mm 150LX/500mm (measured by our measurement method, Per panel)
Illuminance directly under the center (Min) 80LX/150mm 25LX/300mm 10LX/500mm (measured by our measurement method, Per panel)
Color temperature4000K (white)
Average color rendering index  (Ra)90

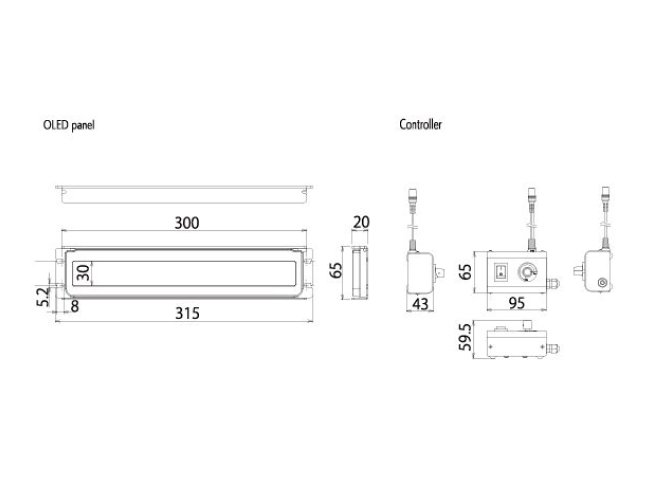

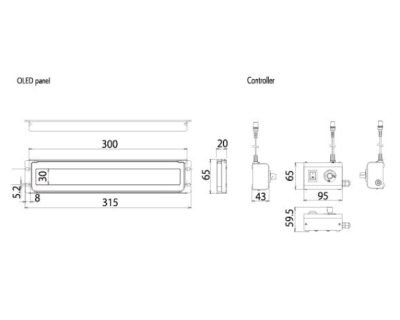

Luminous surface size (mm)L273×W30
Total luminous flux(lm)200 (per panel)
AC adapter model, ratingUNIFIVE336-2415(24V/1.5) Weight:270g
Main body
Weight (Kg)1.0 (including main body weight controller)
Dustproof/waterproof protection classIP20 (for indoor use only)
Clampable width (mm)15-60 (board thickness)
