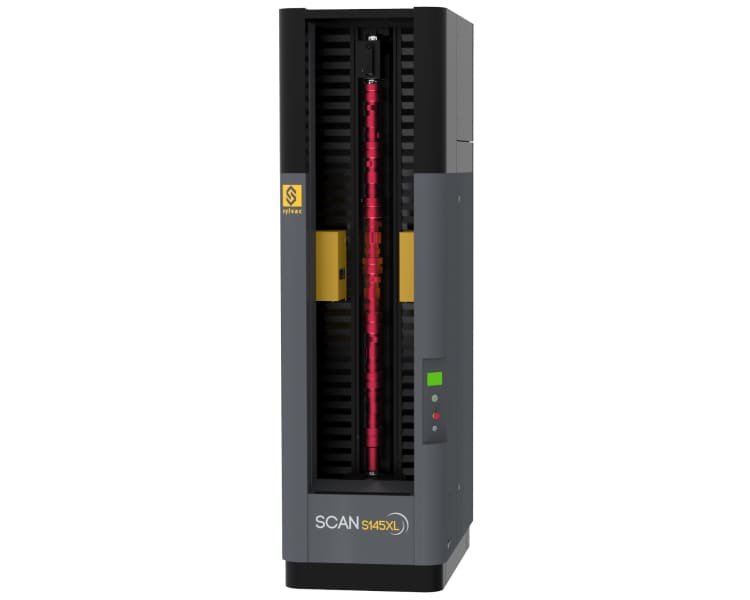

Optical Measurement Scan S145XL Sylvac
Introducing the Sylvac Optical Measurement Scan S145XL, designed for precise measurement of extra-large cylindrical parts up to 145mm wide and 1800mm long. This device offers rapid 2D scanning, intuitive operation, and exceptional precision.
Features
Overview
| 902-4148 | ||
| EAN | 7640125696677 | |
| Diameter | Length | |
| Measuring range (mm) | 145 | 1800 |
| Resolution up to (mm) | 0.0001 | |
| Max. error (µm) | 1.5 + (D[mm]/100) µm ¹ | 4 + (L[mm]/200) µm ¹ |
| Repeatability 2δ (µm) | 0.5 | 1.0 |
| Holding capacity (mm) | 254 | 1800 |
| Axial positioning speed (mm/s) | Up to 160 | |
| Headstock | Rotary headstock for static and dynamic measurements | |
| Max. weight of part (kg) | 100 | |
| Machine’s weight (kg) | 797 | |
