The RF-31N2F features a 1.5 HP motor with 12 standard spindle speeds (60 Hz: 150-3000 rpm; 50 Hz: 125-2500 rpm), optional 2-speed version for more range. It includes spindle power down feed (0.12-0.18-0.25 mm per revolution) for controlled drilling / milling. Its table size is 730×210 mm, X travel 460 mm, Y travel 190 mm. Column diameter is Ø115 mm. Machine weight about 230 kg (net) without stand.

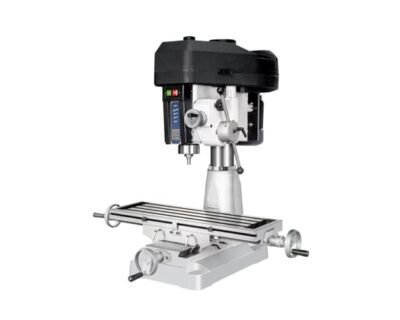

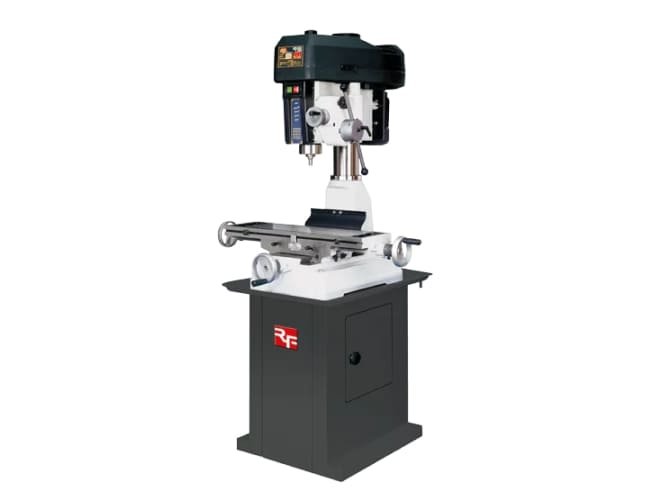

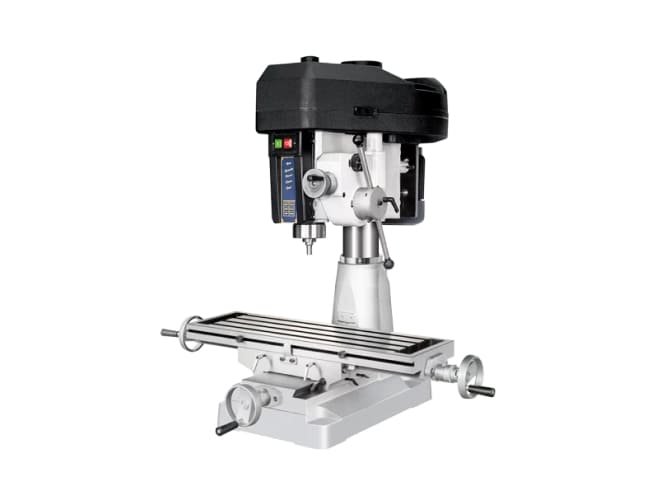

Rong Fu Bench Milling & Drilling RF-31N2F
Meet the RF-31N2F: your reliable partner for tough shop jobs. It drills up to 32 mm, mills wide faces, cuts keys, routes, and handles a power down feed that gives you control. Swivel head, large work table, steady steel construction—real strength you can feel every time you clamp a workpiece.
Features
Overview
| Specification Item | Unit | Value (RF-31N2F) |
|---|---|---|
| Main Motor | HP | 1.5 HP |
| Spindle Speed (12 speeds) | rpm | 60Hz: 150-3000; 50Hz: 125-2500 |
| Spindle Speed (optional 2-speed) | rpm | 60Hz: 75-3000; 50Hz: 62-2500 |
| Spindle Taper | — | MT3 or R8 |
| Spindle Stroke (Quill travel) | mm | 130 mm |
| Table Size | mm | 730 × 210 mm |
| X Travel (Table longitudinal) | mm | 460 mm |
| Y Travel (Cross feed) | mm | 190 mm |
| Column Diameter | mm | Ø115 mm |
| No. of T-Slots on Table | — | 4 slots |
| T-Slot Size | mm | 16 × 26 mm |
| Net / Gross Weight | kg | 230 / 255 kg |
