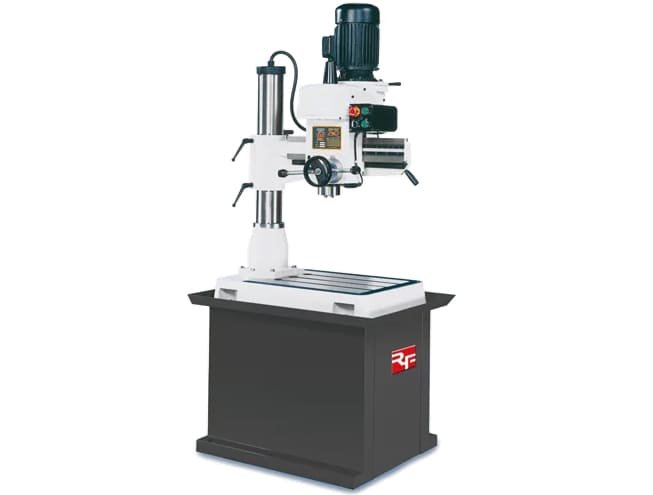

This bench-type radial drill has a standard single-speed motor (1.5 HP) running at 340-3000 rpm (60 Hz) or 280-2500 rpm (50 Hz). Optionally, a 2-speed motor is available giving 170-1500 rpm (60 Hz) / 140-1250 rpm (50 Hz). It has a spindle stroke of 130 mm, and its spindle head can travel 380 mm along the radial arm. The machine includes a 550×500 mm table with 16×26 mm T-slots, Ø115 mm column diameter, and a stand option. It weighs 250 kg (machine) and 35-36 kg for stand. Clearance and swing make it suitable for bulky workpieces.

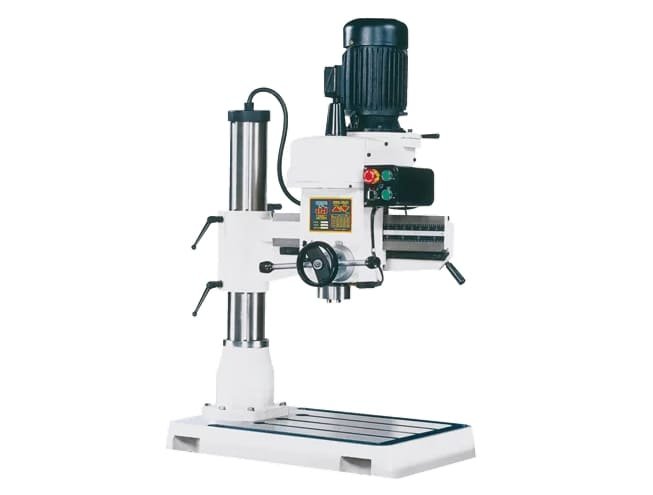

Rong Fu Light Radial Drill RF-35
Need a radial drill that gives you more reach? The Rong Fu RF-35 lets you swing the drilling head out to where the work is, not the other way around. With its solid cast iron column and arm, big table, reverse/forward switch, plus optional two-speed motor, it handles big holes in steel, alloy, or mild parts. Less repositioning means more speed and less hassle.
Features
Overview
| Specification | Detail |
|---|---|
| Product | Rong Fu Light Radial Drill RF-35 |
| Main Motor Power | 1.5 HP standard |
| Standard Motor Speeds | • 60 Hz: 340-3000 rpm • 50 Hz: 280-2500 rpm |
| Optional 2-Speed Motor Speeds | • 60 Hz: 170-1500 rpm • 50 Hz: 140-1250 rpm |
| Spindle Taper | MT3 |
| Spindle Stroke | 130 mm |
| Travel of Spindle Head (Arm Slide) | 380 mm |
| Table Size | 550 × 500 mm |
| Column Diameter | Ø115 mm |
| T-Slot Size | 16 × 26 mm |
| Machine Weight (No Stand) | 250 kg |
| Weight of Stand | 35-36 kg |
| Packing Dimensions (Machine) | 610 × 890 × 160 mm |
| Packing Dimensions (Stand) | 965 × 800 × 203 mm |
