E-TOUCH XL provides permanent marking via tungsten carbide stylus impact in a 120×50 mm window. At 2.6 kg, its internal metal structure, ergonomic grip, and three contact faces allow stable orientation on parts of different shapes. It includes a 5 m cable, HD colour touch screen, and supports up to 20,000 files in 100 MB memory. Marking types include linear, radial, angular text, DataMatrix, and logos, with character size down to 1 mm, depth up to 0.3 mm, impact force adjustable in 9 levels.

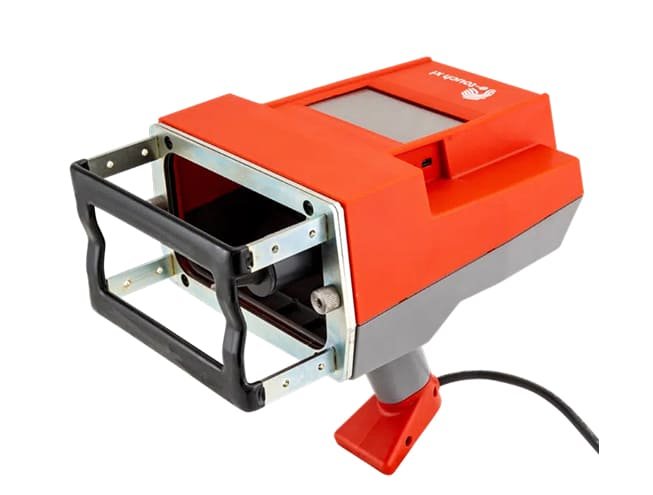

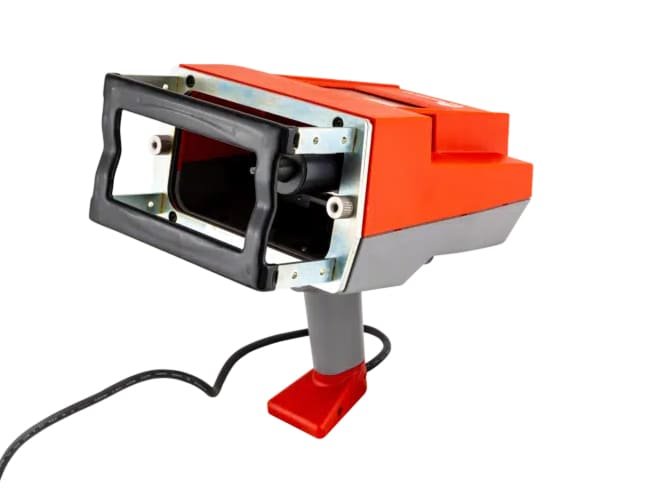

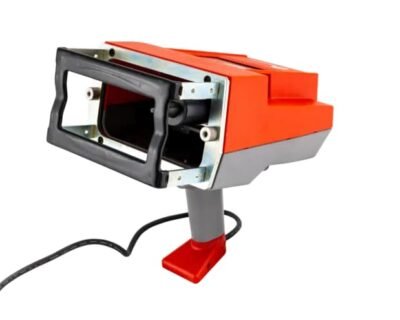

SIC Marking E-TOUCH XL marking machine

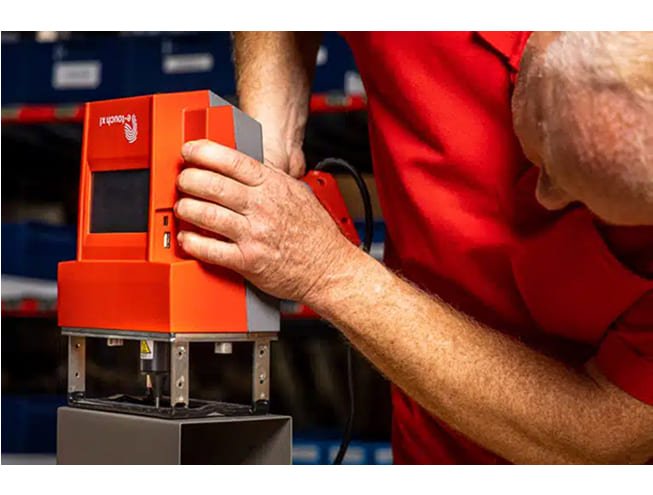

If you need to mark big, heavy parts where space is tight, the E-TOUCH XL gives you a large marking area, tough build, and ease of use. You can program via a touch screen (even with gloves), preview what the mark will look like, and mark codes, logos, or text—all without dragging the part to a big station. Lightweight, mobile, and made for rugged conditions.
Features
Overview
| Specification | Detail |
|---|---|
| Marking Window | 120 × 50 mm |
| Dimensions | 272 × 194 × 251 mm |
| Weight | 2.6 kg |
| Cable Length | 5 m connection cable |
| Stylus Material | Tungsten carbide |
| Screen | Colour HD screen, 95 × 54 mm |
| Marking File Capacity | Up to ~20,000 files |
| Memory | 100 MB |
| Types of Marking | Alphanumeric, serial number, date/time, barcode, logos, DataMatrix etc. |
| Fonts Supported | Courier, 4×6, OCR-Bold, OCRA, OCR etc. |
| Character Size (Min) | 1 mm |
| Impact Force Levels | 1 to 9 |
| Depth of Mark | Up to ~0.3 mm depending on material/settings |
| Resolution between Dots | 0.05 mm |
| Max Stylus Stroke | 9 mm |
| Communication Ports | USB and coaxial cable connection |
