Built for industrial use, the e1 P63C offers electromagnetic dot-peen marking with high precision (stylus carbide) and variable impact force over 9 levels. Its mechanical unit is compact (215×135×203 mm), weighs 2.6 kg, and includes a 3-meter robotic cable. The e1 controller is independent (no constant PC required), equipped with an HD color screen, protected membrane keyboard, USB for file transfer, and supports marking of data matrix codes, logos, serials, date/time, barcodes etc. Depth up to 0.3 mm, minimal character height 1 mm, and resolution between dots 0.05 mm.

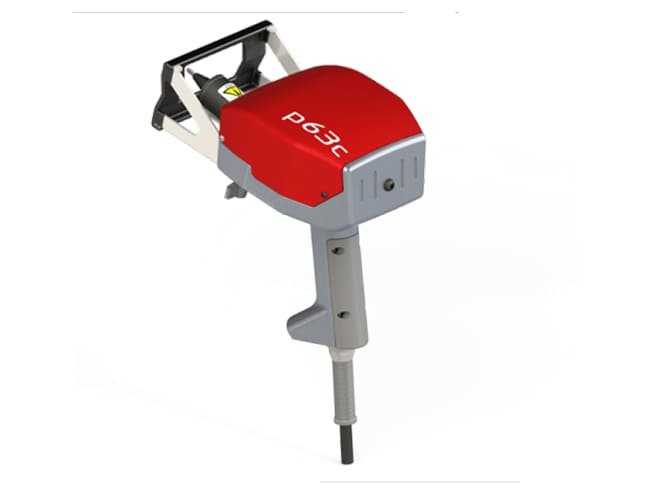

SIC Marking e1 P63C Portable Marking System

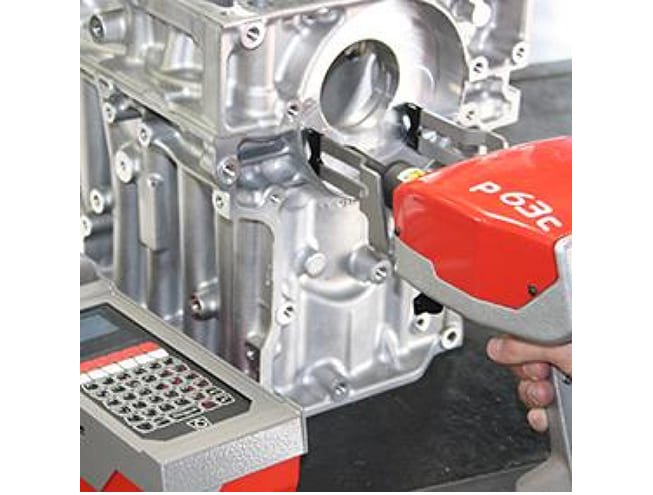

Need to mark big, heavy, or awkward parts without dragging them to a station? The SIC e1 P63C is your tool. It’s lightweight, balanced, and fits into tight spots. With the stylus poking permanent dots—whether letters, logos, or data matrix codes—you get sharp, deep marking even on hard surfaces. No PC needed every time. Just load the design, pick force, and go. Perfect for workshops, field work, or factory floors.

Features

Large Marking Window (60 × 25 mm)

Allows marking of relatively large characters, codes or logos at once, reducing repositioning. Good for readability and speed when marking data matrix or serials.

Portable, Balanced Design

The unit is compact (215×135×203 mm) and lightweight ( 2.6 kg). Ergonomic handle, sturdy body (cast aluminium), designed for working in awkward or tight spaces with less operator fatigue.

Electromagnetic Stylus with Tungsten Carbide Tip

Ensures strong, sharp and permanent marking even in tougher materials. Stylus is capable of producing deep marks and precise, clear patterns.

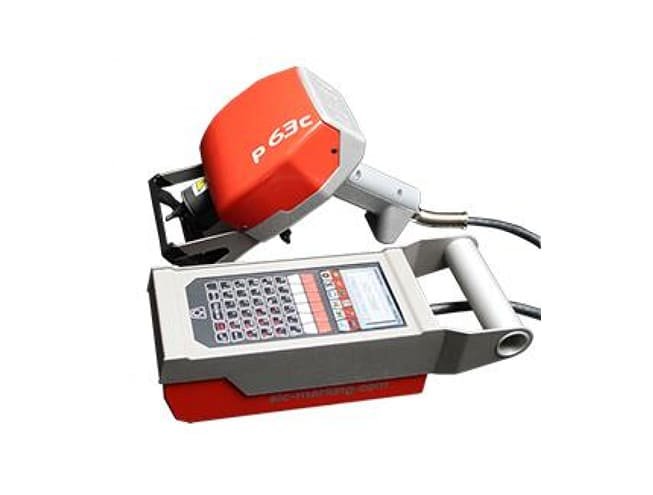

Independent e1 Controller

Built-in controller with display, membrane keyboard, USB port for file transfer; allows offline programming and operation without constant PC. Simplifies use onsite. Reliability enhanced since it has minimal openings.

Adjustable Mark Depth and Fine Resolution

Provides up to ~9 levels of impact force, minimal character size ~1 mm, dot resolution ~0.05 mm, with marking depth up to ~0.3 mm depending on material and settings. Enables fine control over how shallow or deep the marking is.

Overview

Specification	Detail
Product Name	SIC Marking e1 P63C Portable Dot Peen Marking System
Marking Type	Dot peen (electromagnetic stylus)
Marking Window	60 × 25 mm (2.4 × 1 in)
Machine Dimensions	Approximately 215 × 135 × 203 mm
Weight	2.6 kg (machine only)
Stylus Material	Tungsten carbide
Cable / Robotic Cable Length	3m cable for the marking gun
Controller	e1 Controller; independent, with HD color screen, membrane keyboard; USB port; no PC needed for normal use.
Power Supply	100–240 VAC, 50/60 Hz
Power Consumption	Approximately 100 W
Communication Ports	USB; inputs/outputs; some versions may include external options (barcode reader, etc.)
Character / Code Types	Alphanumeric text, serial numbers, date/time, logos, 2D codes (DataMatrix), barcodes.
Character Size Range	Minimum ~1 mm height (depending on marking window, material)
Impact Force Levels	1–9 adjustable levels
Marking Depth	Up to 0.3 mm depending on material and settings
Resolution Between Dots	0.05 mm
Character Speed	Up to 2.5 characters per second (varies)
