This flagship marking workstation supports shallow or deep etching on metals and select plastics using a pulsed Ytterbium-doped fiber laser. Its ergonomic design includes three-sided access, LED-lit interior, and user-friendly SIC Laser PC software. Optional integration into robotic cells and safety compliance (Class 1 enclosure, PL-E rated) make it ideal for modern production lines.

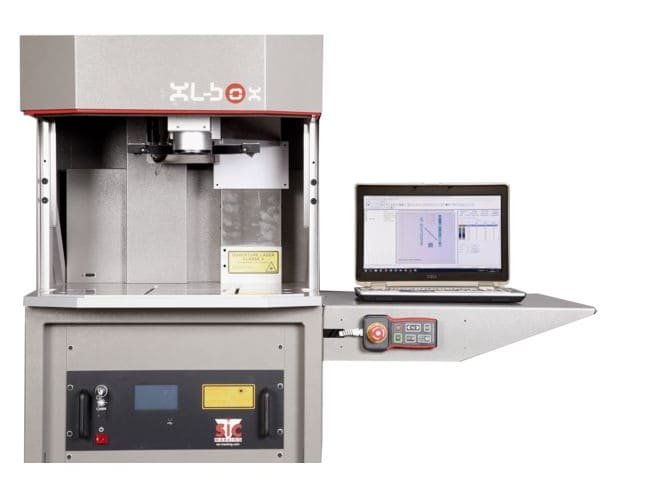

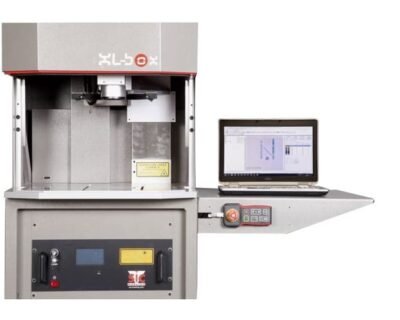

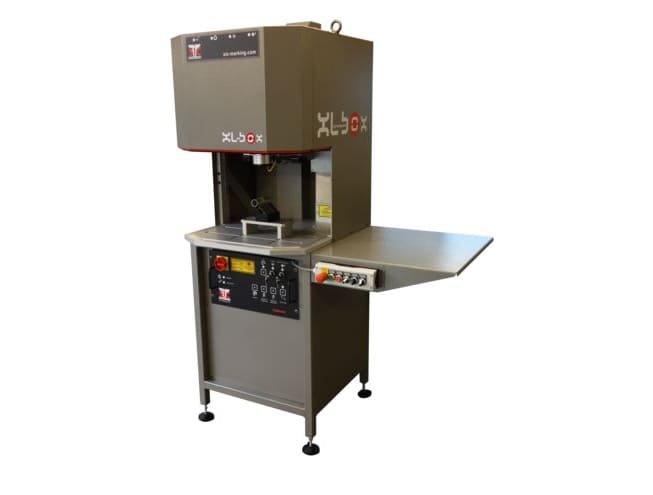

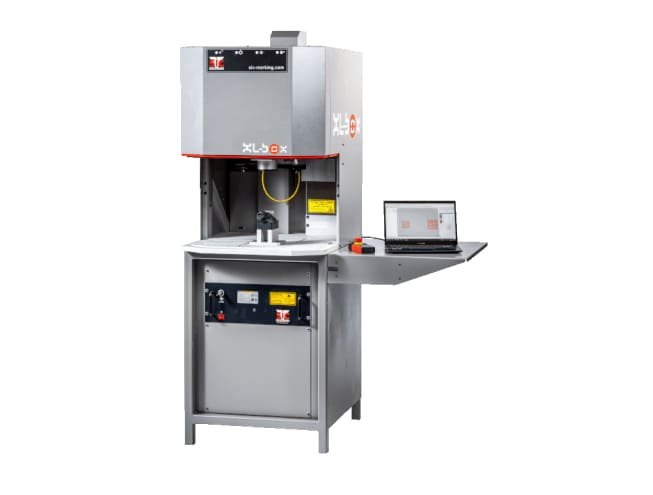

SIC Marking XL-Box Laser system
The XL-BOX is engineered for seamless industrial integration. With automatic door locking, one-cable robotic cell control, and powerful software for marking setup, code generation, and PLC connectivity, it caters to high-volume direct part marking (DPM) applications requiring traceability, quality, and zero-touch operation.
Features
Overview
| Specification | Details |
|---|---|
| Work Zone (X × Y) | 570 × 564 mm |
| External Dimensions (L × D × H) | 655 × 755 × 995 mm |
| Max Part Size (Height × Length) | 370 mm × 570 mm |
| Laser Type | Ytterbium-doped pulsed fiber laser (20 W, optional 30 W) |
| Wavelength | 1064 nm |
| Operating Mode | Pulsed, variable frequency |
| Cooling | Air-cooled |
| Safety Rating | Class 1 enclosure per EN 60825-1, PL-E standard (ISO 13849-1) |
| Software Interface | SIC Laser PC (Windows) with USB |
| Supported Marking | TrueType text, images, barcodes, DataMatrix, logos, decorative / deep marking |
| Optional Extensions | Rotary D-axis, 3D marking, integrated code reader, custom tooling |
| Integration Capability | Robot cell PLC control via single cable, automatic door & fume control |
