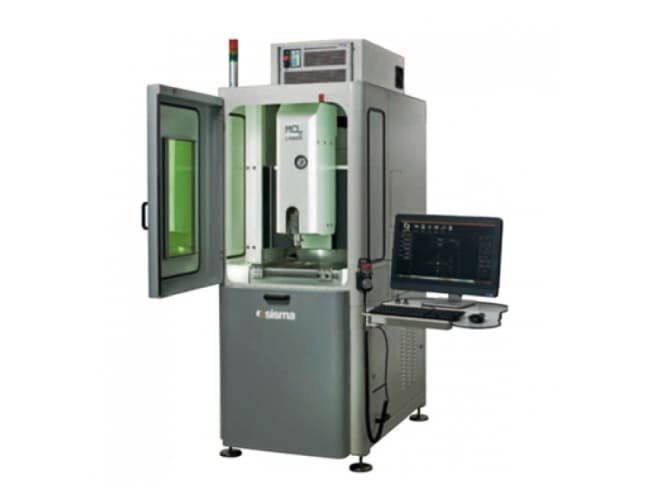

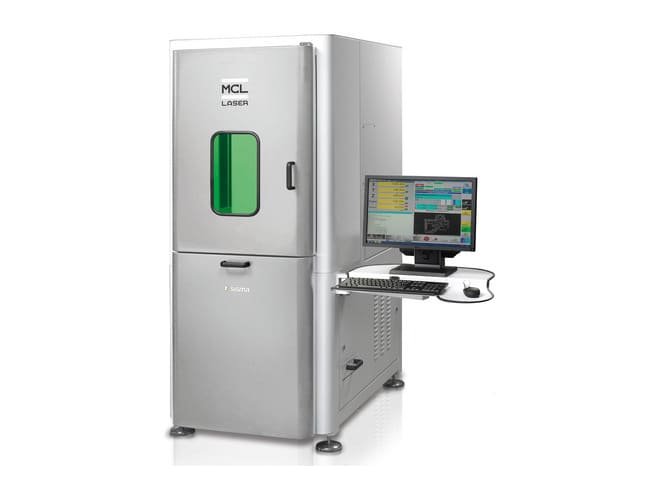

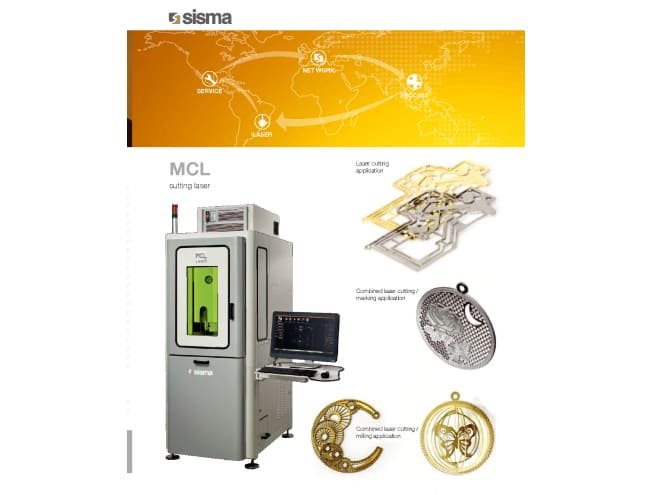

Sisma Fiber Ytterbium cutting laser MCL Series
Sisma MCL Series Fiber Ytterbium Cutting Laser is a high‑performance laser cutting system using ytterbium fiber laser technology. Designed with ball‑screw axis motion and a robust steel frame, it delivers precision metal cutting with excellent speed and accuracy for industrial fabrication needs.
28 people are viewing this product right now
🔥 10 items sold in last 3 hours
The MCL Series combines stable mechanics with advanced cutting head sensors, ensuring consistent performance even under high‑acceleration movements. Its modular design enables integration with laser marking or milling processes for enhanced workshop versatility.
Sisma Fiber Ytterbium cutting laser MCL Series
Built for demanding production environments, the Sisma MCL supports various power configurations and offers reliable laser output with minimal maintenance. Its capacitive anti‑collision sensor and CAD/CAM interface enable precise path control and superior cut quality.
Features
Overview
| Specification | Detail |
| Model | MCL 300/3000, MCL 500, MCL 1000 |
| Source Type | Fiber |
| Output Power | 300/3000 W, 500 W, 1000 W |
| Wavelength | 1070 nm |
| Cooling | No (for 300 W), External (for 500 W, 1000 W, 3000 W) |
| Power Supply | 230V 50/60Hz 1ph |
| Overall Power Consumption | 6 KW (300 W), 7.5 KW (500 W), 8.5 KW (1000 W), 8.5 KW (3000 W) |
| Working Area (Cutting box version) | X, Y: 340 x 350 mm |
| Max. Width with Internal Dragger | max 120 mm |
| Max. Width with External Dragger | max 200 mm |
| Axis Precision | +/- 0.025 mm |
| Axis Resolution | +/- 0.010 mm |
| Axis Max Speed | 30 m/min |
| Machine Dimensions (w x l x h) | 900 x 1470 x 2400 mm |
| Total Weight | 800 kg |
