The Sisma MYSINT100 is a pioneering 3D laser metal printer for industrial applications. Using Laser Metal Fusion (LMF) technology, it generates metal prototypes from a variety of powders, including steel, gold, silver, bronze, and chrome cobalt. This process offers a new approach to metallurgical manufacturing and a reasonable value investment to gain a competitive advantage.

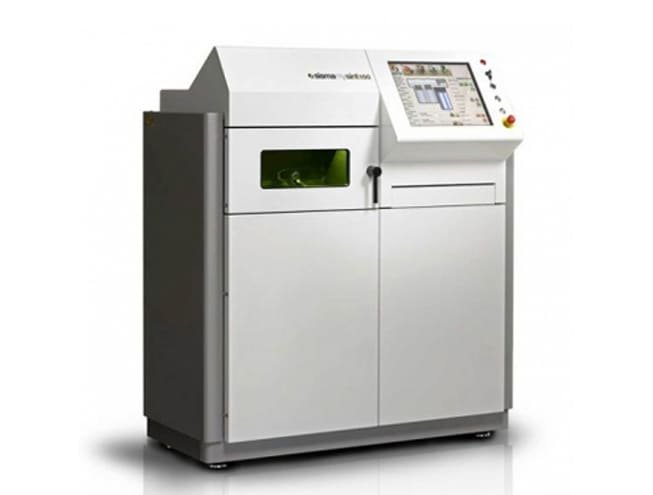

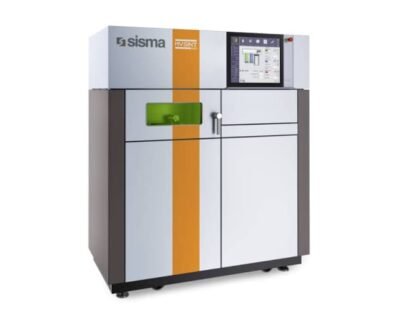

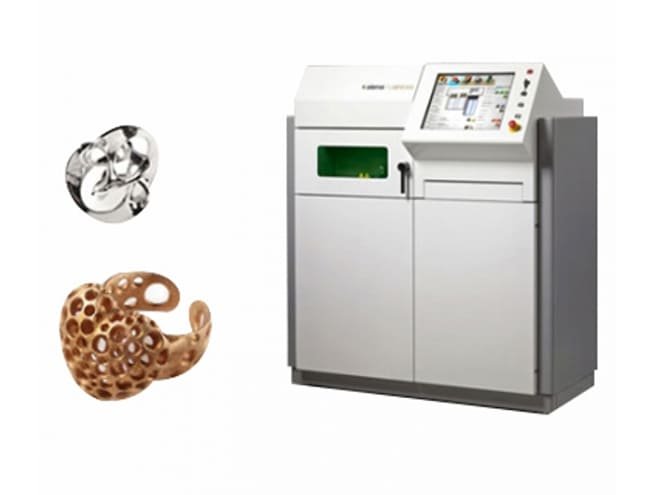

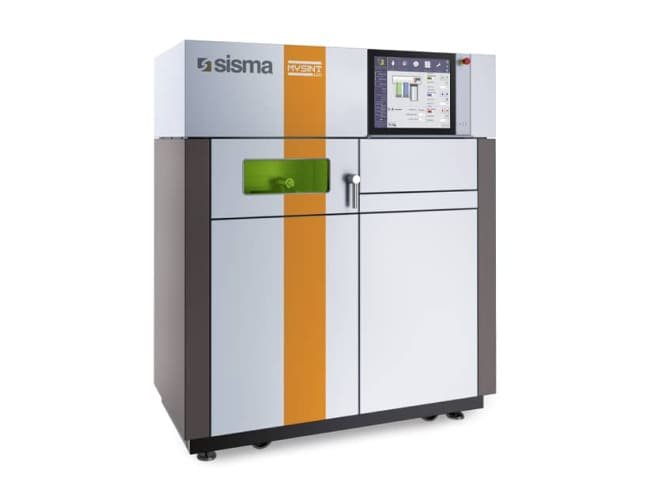

Sisma Laser Metal Fusion MYSINT100
The Sisma MYSINT100 redefines the object creation process with its ability to laser-melt fine metal powder into a perfectly shaped workpiece. The machine is capable of crafting complex and precise parts, such as aircraft components, medical implants, and security locking systems. It offers a lightweight yet robust result due to its trabecular structure and allows for the reuse of residual powder, which significantly reduces costs and environmental impact. The process also provides total confidentiality for intellectual property by avoiding conventional methods.
Features
Overview
| MODEL | MYSINT100 |
| Effective cylinder volume | dia. 100 x 100 mm |
| Max output power | 150 W |
| Laser spot diametre | 50 µm |
| Layer thickness | 10 µm |
| Power supply | 230 V – 50/60 Hz |
| Max. power absorbed | 1000 VA |
| Inert gas supply | nitrogen, argon |
| Protection gas consumption | <0.3 l/min |
| Building speed rate | 5 cm³/h (stainless steel) |
| Materials | bronze, cobalt/chromium, stainless steel |
| Machine dimensions (WxLxH) | 1390 x 760 x 1600 mm |
| Net weight | 650 kg |
