SWS Series from Sisma provides high-performance laser welding for small to large-scale industrial processes. With power ranging from 25 W to 1000 W and options for Nd:YAG or fiber lasers, the system ensures precise welds with programmable pulse durations. The robust structure and XYZ precision guarantee repeatable results, while compact dimensions allow seamless integration into production workflows.

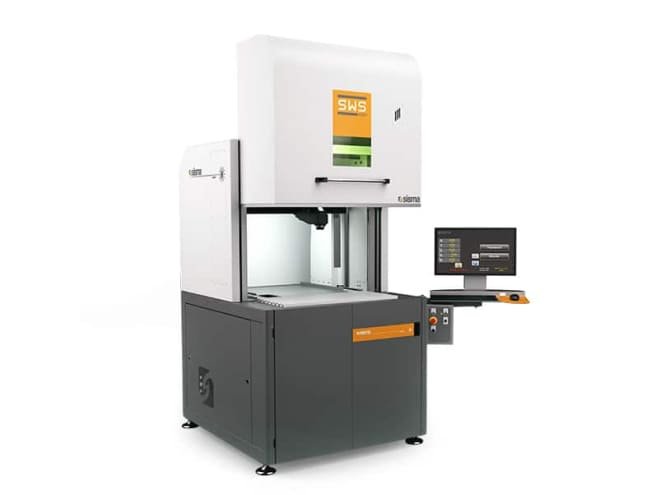

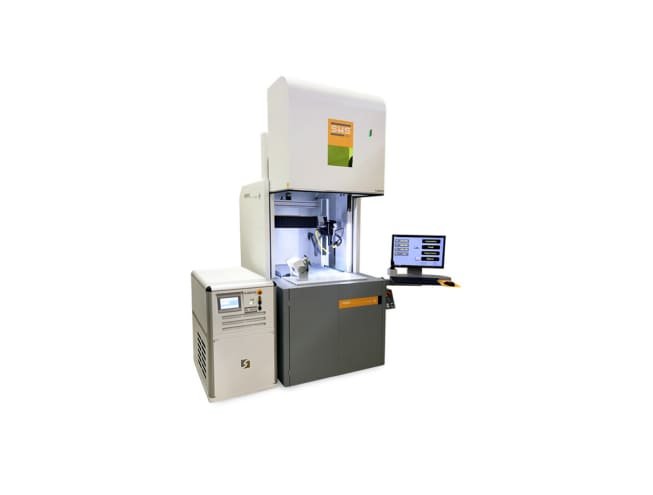

Sisma Laser Welding Station SWS Series
The Sisma SWS Series combines flexibility, precision, and robustness for advanced laser welding applications. Featuring programmable pulse shaping, micron-level motion control, and a compact design, these stations handle both delicate and heavy workpieces. Nd:YAG and fiber laser options allow welding of diverse materials with consistent quality. Ideal for automated and high-speed production lines.
Features
Overview
| Parameter | SWS 25–80 | SWS 150–300 | SWS 150F–450F | SWS 1000F |
|---|---|---|---|---|
| Source type | Nd:YAG (flash lamp) | Nd:YAG (flash lamp) | Fiber laser | Fiber laser |
| Wavelength | 1064 nm | 1064 nm | 1070 nm | 1070 nm |
| Average laser power | 25–80 W | 150–300 W | Up to 450 W | 1000 W |
| Max peak power | Up to 7.5 kW | 10.5–12 kW | Up to 4.5 kW | 1000 W |
| Max pulse energy | Up to 70 J | 75–150 J | Up to 45 J | – |
| Pulse duration | 0.2–20 ms | 0.2–25 ms | 0.2–10 ms / CW | CW |
| X axis stroke | 520 mm | 520 mm | 520 mm | 520 mm |
| Y axis stroke | 400 mm | 400 mm | 400 mm | 400 mm |
| Z axis stroke | 400 mm | 400 mm | 400 mm | 400 mm |
| Axes precision | ±60 μm | ±60 μm | ±60 μm | ±60 μm |
| Axes repeatability | ±30 μm | ±30 μm | ±30 μm | ±30 μm |
| Dimensions (laser source excluded) | 120 × 135 × h 200 cm | 120 × 135 × h 200 cm | 120 × 135 × h 200 cm | 120 × 135 × h 200 cm |
| Weight (laser source excluded) | 450 kg | 450 kg | 450 kg | 450 kg |
| Power supply | 1Ph 230 V ±10% 50/60 Hz | 3Ph 380 V ±10% 50/60 Hz | 1Ph 230 V ±10% 50/60 Hz | 1Ph 230 V ±10% 50/60 Hz |
