SWA 300F/450F revolutionizes mold repair with fiber laser technology. Its high-quality laser beam allows welding in narrow grooves and intricate edges with consistent hardness and minimal collateral damage. Maintenance-free and powered by energy-efficient lasers, the system offers intuitive software controls for circular, inclined, and overlapping welds, increasing productivity while ensuring flawless results.

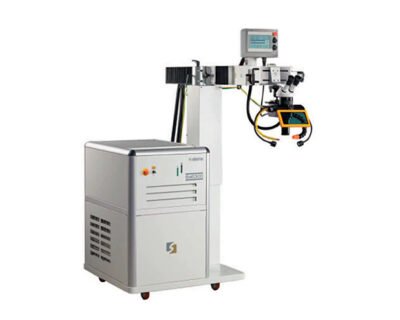

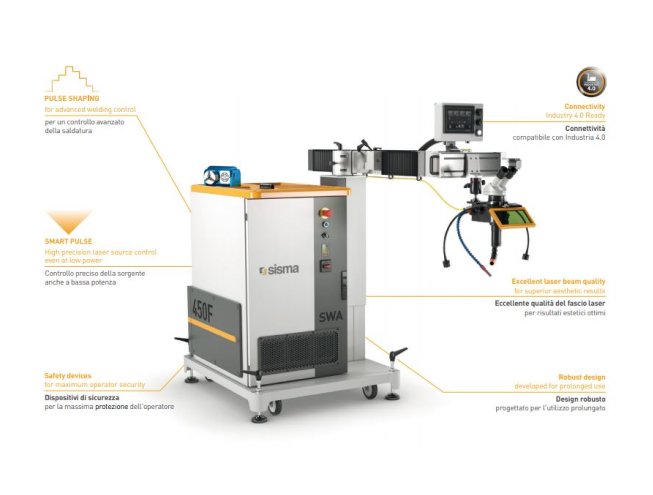

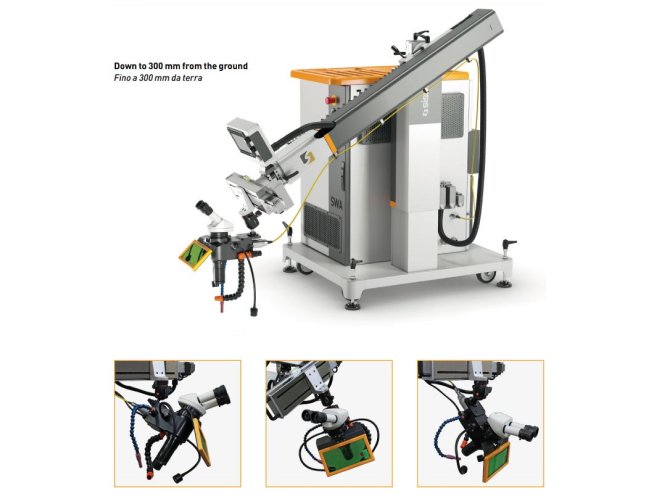

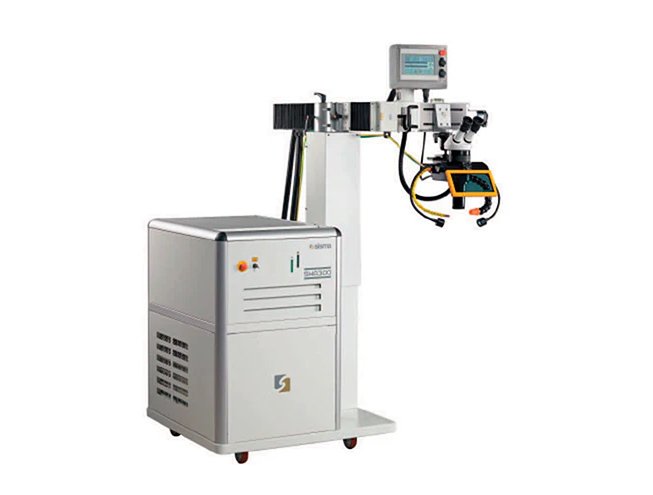

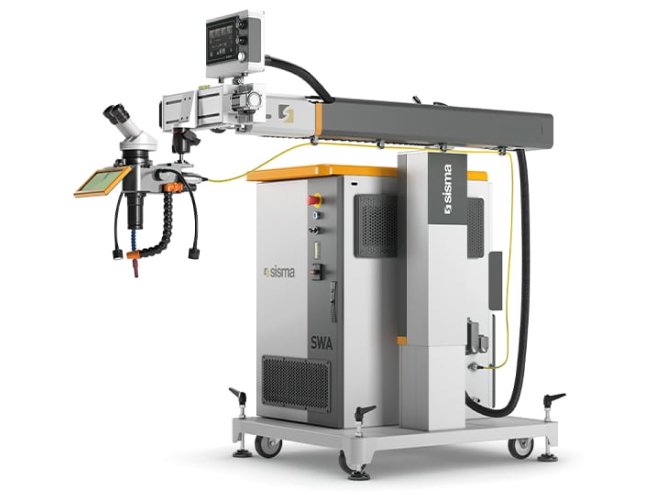

Sisma Laser Welding SWA 300F/450F
The Sisma SWA 300F/450F laser welding system delivers precise and reliable mold repairs. Its fiber laser enables high-quality welding on steels, copper alloys, and aluminum without preheating, minimizing distortion. Maintenance-free, energy-efficient, and equipped with intuitive software, it ensures fast, repeatable, and flawless results for complex and narrow geometries.
Features
Overview
| Description | SWA 300F | SWA 450F |
|---|---|---|
| Source type | Fiber laser | Fiber laser |
| Wavelength | 1070 nm | 1070 nm |
| Average laser power | 300 W | 450 W |
| Max peak power | 3 kW | 4.5 kW |
| Max pulse energy | 30 J | 45 J |
| Pulse duration | 0.1–10 ms / CW | 0.1–10 ms / CW |
| Shot frequency | 0.5–50 Hz | 0.5–50 Hz |
| Spot diameter | 0.1–2 mm | 0.1–2 mm |
| Integrated cooling | Air | Air |
| Focusing optics | 120 mm | 120 mm |
| X axis stroke | 300 mm | 300 mm |
| Y axis stroke | 150 mm | 150 mm |
| Z axis stroke | 500 mm | 500 mm |
| Axes speed | 0.1–30 mm/s | 0.1–30 mm/s |
| Power supply | 230V 50/60Hz 1ph 2 kW | 230V 50/60Hz 1ph 2.6 kW |
| Weight | 320 kg | 325 kg |
