The LM-B Automatic Series is a semi-automatic laser welding system designed for precise mold repairs. Smart Spot technology ensures stable and repeatable welding from the first pulse. Ergonomic design, low noise, and advanced consumables monitoring enhance operator comfort and productivity, delivering consistent, high-quality results across complex geometries and diverse industrial applications.

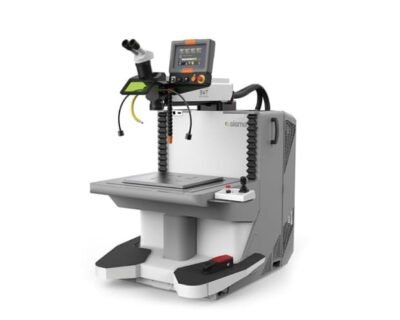

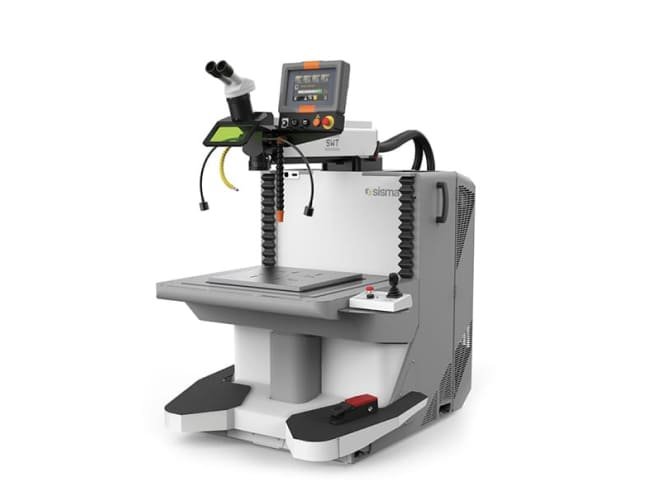

Sisma Welding Laser LM-B Automatic Series
The LM-B Automatic Series offers stable, repeatable laser welding with wide depth of field and precise pulse control. Smart Spot technology ensures consistent quality on complex molds. Its ergonomic structure, low noise, and advanced consumables monitoring maximize operator comfort and productivity, while the semi-automatic design reduces maintenance and delivers efficient, high-quality industrial welding performance.
Features
Overview
| LM-B 180 | LM-B 210 | |
|---|---|---|
| Source type | Nd:YAG (flash lamp) | Nd:YAG (flash lamp) |
| Wavelength | 1064 nm | 1064 nm |
| Average laser power | 80 W | 85 W |
| Peak laser power (max) | 9 kW | 10.5 kW |
| Max pulse energy | 180 J (at 20 ms) | 210 J (at 20 ms) |
| Laser pulse duration | 0,3–25 ms | 0,3–25 ms |
| Laser spot diameter | 0,2–2 mm (0,1 mm optional) | 0,2–2 mm (0,1 mm optional) |
| X-Y axes stroke | 150 x 150 mm | 150 x 150 mm |
| Z axis stroke | 175 mm | 175 mm |
| Max load weight | 25 kg | 25 kg |
| Max mold size | 300 x 300 x 270 mm | 300 x 300 x 270 mm |
| Power supply | 1Ph 230V ±10% 50/60 Hz | 1Ph 230V ±10% 50/60 Hz |
| Dimensions (WxDxH) | 698 x 801 x 1465 mm | 698 x 801 x 1465 mm |
| Weight | 200 kg | 200 kg |
