The LM-D Vision Series offers professional-grade manual laser welding with enhanced visualization. Its integrated vision system and Smart Spot ensure consistent, accurate results. Ergonomic design, ECO function, and advanced connectivity make it efficient and user-friendly, while remote control capabilities provide flexibility for industrial and workshop applications.

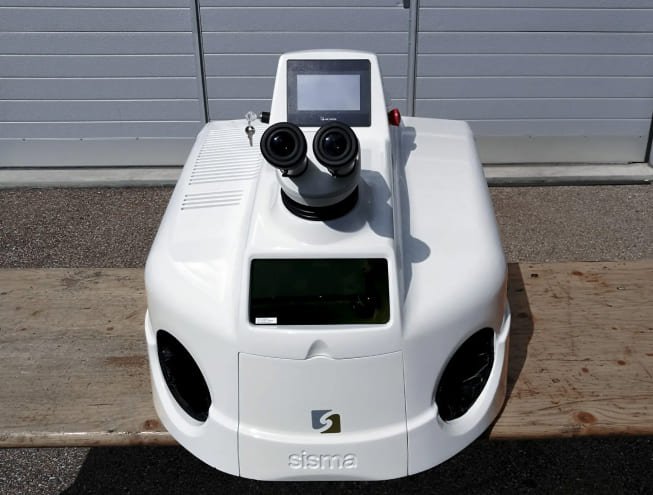

Sisma Sisma Welding Laser LM-D Vision Series

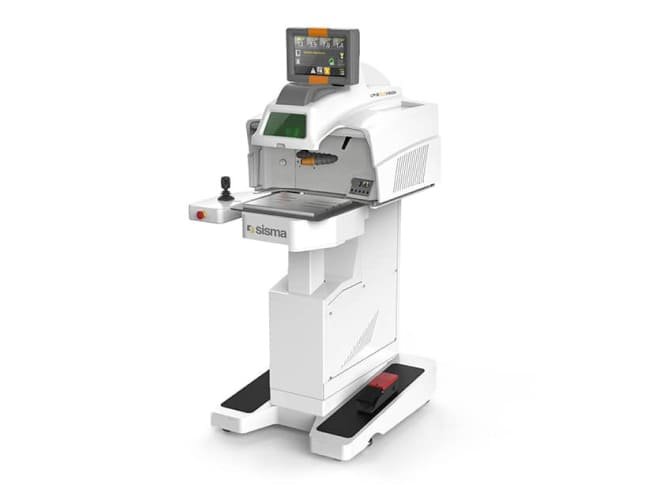

Designed for precision and operator ease, the LM-D Vision Series is a manual laser welding solution enhanced with built-in vision technology. The system combines Smart Spot for stable welding performance, ergonomic comfort, and energy-saving ECO mode. With USB/Ethernet connectivity and remote access, LM-D Vision ensures reliable, versatile, and technologically advanced welding operations.
Features
Overview
| Technical Data | LM-D Vision 180 | LM-D Vision 210 |
|---|---|---|
| Source type | Nd:YAG (flash lamp) | Nd:YAG (flash lamp) |
| Wavelength | 1064 nm | 1064 nm |
| Average laser power | 80 W | 85 W |
| Pulse duration | 0.3–25 ms | 0.3–25 ms |
| Pulse frequency | 0–50 Hz | 0–50 Hz |
| Max peak power | 9 kW | 10.5 kW |
| Max pulse energy at 20 ms | 180 J | 210 J |
| Spot diameter | 0.2–2 mm (0.1 mm opt.) | 0.2–2 mm (0.1 mm opt.) |
| Smart Spot | ✔ | ✔ |
| Integrated vision system | ✔ | ✔ |
| USB / Ethernet connectivity | ✔ | ✔ |
| Power supply | 230 V ±10% 50/60 Hz | 230 V ±10% 50/60 Hz |
| Dimensions | 567 x 744 x 512 mm | 567 x 744 x 512 mm |
| Weight | 60 kg | 60 kg |
