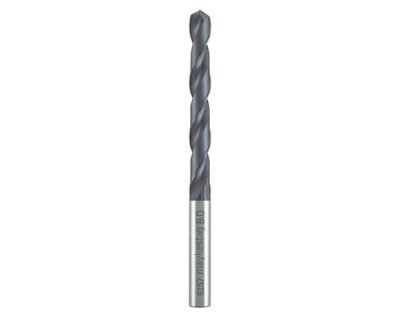

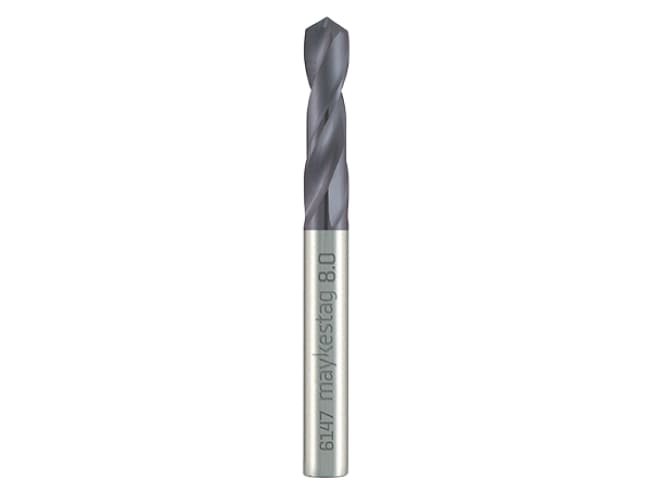

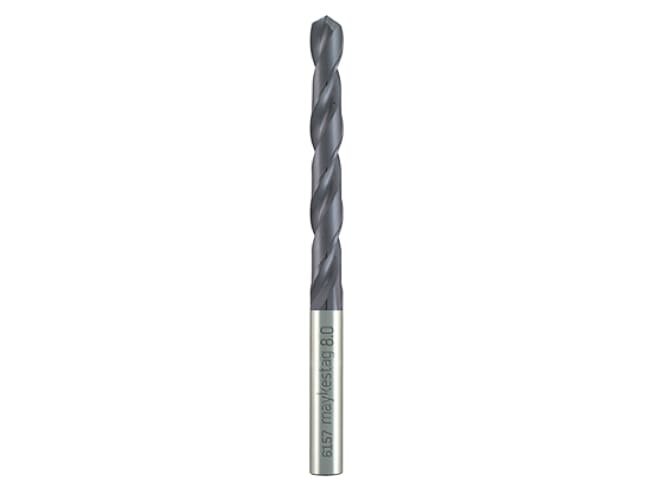

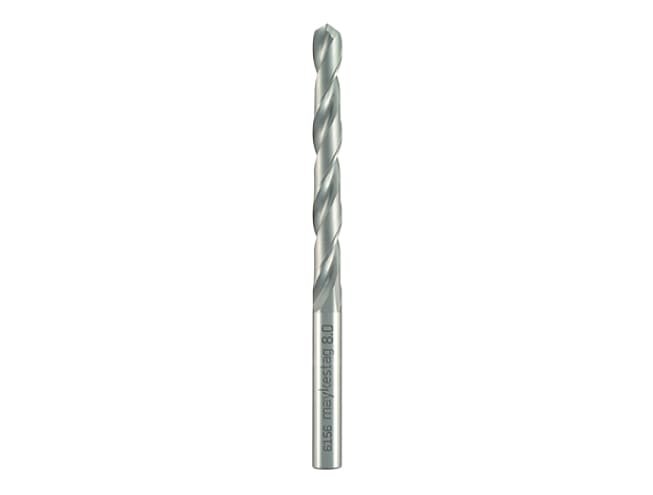

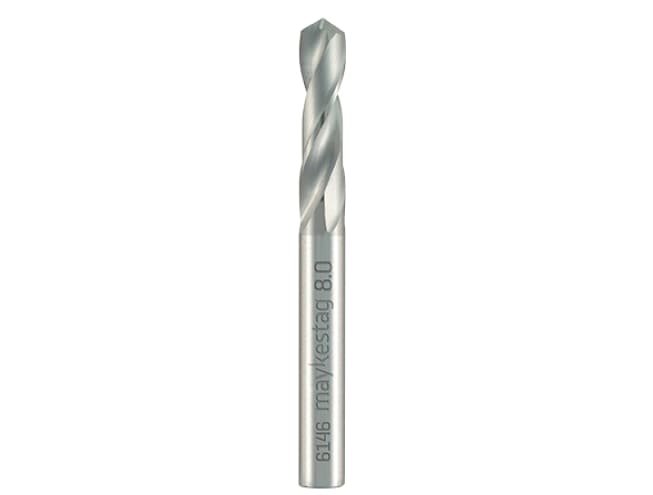

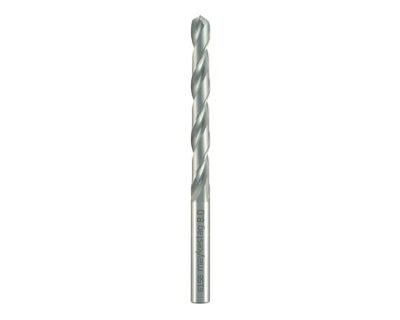

The Maykestag SPEED-DRILL solid carbide stub drill series delivers excellent stability in short hole drilling operations. Its robust design minimizes deflection and vibration, improving hole quality and accuracy. Advanced coatings such as ALUNIT or NANODUR enhance wear resistance, heat protection, and tool longevity when machining steels, stainless steels, and non-ferrous materials.



Solid Carbide Drills Carbide Stub Drills Maykestag

Engineered for demanding machining environments, Maykestag solid carbide stub drills provide reliable performance at high feed rates and cutting speeds. Internal coolant options improve heat dissipation and chip removal in deep or continuous drilling processes. These tools ensure consistent results, reduced cycle times, and cost-efficient productivity in modern CNC manufacturing operations.

Solid carbide stub drills3

Features

01
Ultra-Micrograin Solid Carbide

High rigidity and superior wear resistance

02
Stub Length Design

Maximum stability with reduced tool deflection

03
Advanced Coatings

ALUNIT, NANODUR, or similar high-performance coatings

04
Optimized Flute Geometry

Efficient chip evacuation and smooth cutting

05
Internal Coolant Options

Improved cooling and process reliability

Overview

Solid carbide stub drills3
SpecificationDetails
Product TypeSolid Carbide Stub Drill
SeriesSPEED-DRILL / HPC Solid Carbide
StandardDIN 6537 K / DIN 6537 L (depending on model)
MaterialUltra-Micrograin Solid Carbide
CoatingALUNIT, NANODUR, ANTRADUR (varies by application)
Point AngleTypically 140°
Shank TypeCylindrical shank
Diameter RangeApprox. 1.0 mm – 20.0 mm
Length Variants3×D, 5×D, and short stub versions
CoolingWith or without internal coolant channels
Workpiece MaterialsSteel, stainless steel (INOX), cast iron, aluminum, non-ferrous alloys
Machine CompatibilityCNC machining centers, drilling machines
