The SPEEDDRILL 4.0 series from Maykestag delivers superior drilling performance with optimized cutting edge geometry and advanced coatings such as ANTRADUR or NANODUR. Designed for steels, stainless steels, and difficult alloys, these drills support high cutting parameters while maintaining excellent accuracy, long tool life, and consistent process reliability.

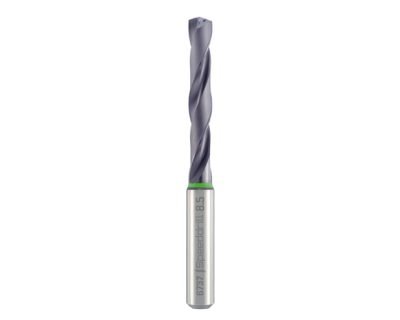

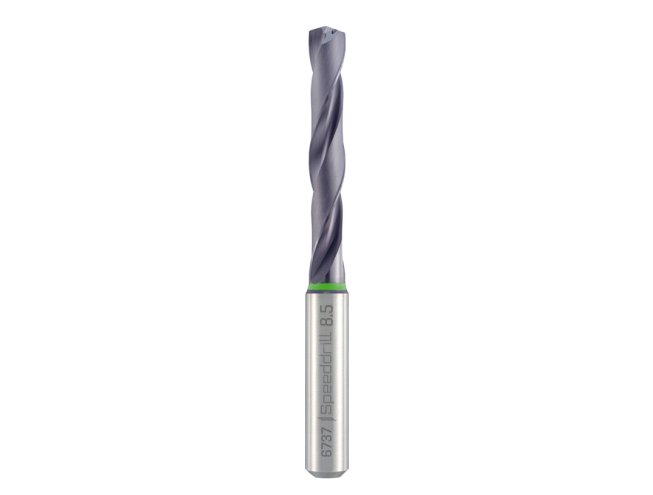

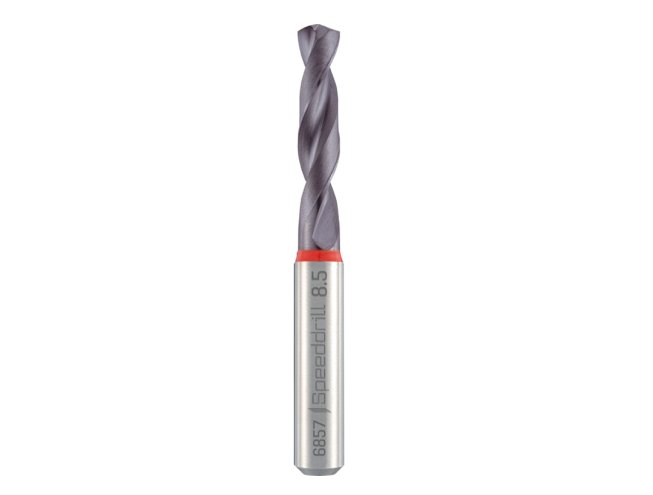

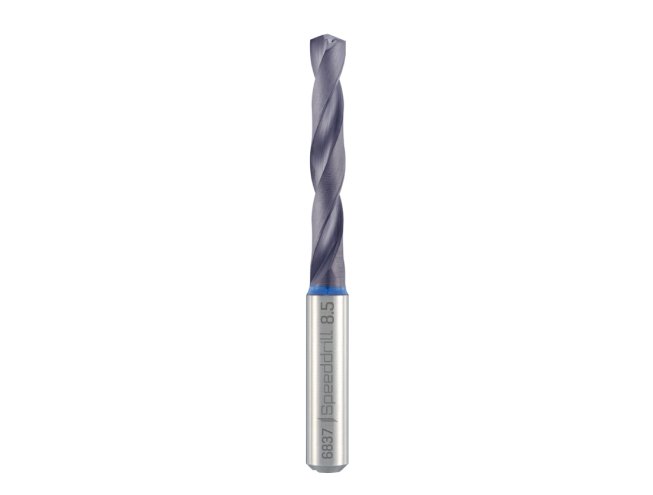

Solid Carbide Drills Speedrill Maykestag

Designed for modern production requirements, Maykestag SPEEDDRILL solid carbide drills feature internal coolant options, reinforced shanks, and precision manufacturing tolerances. Four guide chamfers improve hole quality and stability, while specialized coatings reduce friction and heat generation. These tools enable increased productivity, reduced cycle times, and cost-efficient machining across industrial applications.

Features

Ultra-Micrograin Carbide

High rigidity and superior wear resistance

4 Guide Chamfers

Improved hole roundness and stability

Advanced Coatings

ANTRADUR / NANODUR for longer tool life

Optimized Cutting Geometry

Reduced cutting forces and better chip control

Intelligent Power Management

enefit from the automatic wake-up feature (Absolute System S.I.S) when moving the electronic on its frame and enjoy the energy-saving sleeping mode (Absolute System S.I.S) after 20 minutes of inactivity.

Overview

Specification	Details
Product Type	Solid Carbide High-Performance Drill
Series	SPEEDDRILL 4.0 / HPC
Standard	DIN 6537 K (3×D) / DIN 6537 L (5×D)
Material	Ultra-Micrograin Solid Carbide
Coating	ANTRADUR, NANODUR, ALUNIT-S (varies by model)
Point Angle	Typically 140°
Guide Chamfers	4 margins
Diameter Range	Approx. 1.0 mm – 20.0 mm
Drilling Depth	3×D, 5×D, and extended versions
Cooling	With or without internal coolant channels
Shank	Reinforced cylindrical shank DIN 6535-HA
Applications	Steel, stainless steel, cast iron, titanium, aluminum, special alloys
Machine Compatibility	CNC machining centers, drilling machines
