Designed for versatility, the Widia Series 022849 end mill supports roughing through finishing with one tool, reducing tooling costs and setup changes. High concentricity accuracy ensures stable cutting performance, while the square-end geometry allows ramping and radial machining. It is suitable for aluminum alloys and composite materials such as HDPE and PEHD.

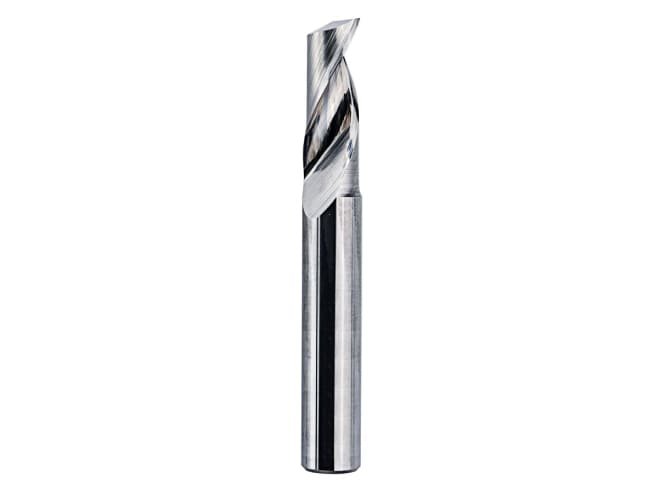

Solid Carbide End Mills 1 Flute 022849 Widia
This uncoated K10F-grade solid carbide tool combines precision tolerances with reliable machining performance. The center-cutting capability enables plunging and helical interpolation, supporting multiple milling strategies in CNC environments. Available in diameters from 2 mm to 12 mm, the tool offers flexibility for diverse machining requirements and consistent surface quality across applications.
Features
Spesification
| order number | K10F | Adapter Style Machine Side | D1 | D | length of cut Ap1 max | length L |
| 2281545 » | 022849-000020 | Straight-Cylindrical | 2,0 | 2 | 10,00 | 40 |
| 2281546 » | 022849-000030 | Straight-Cylindrical | 3,0 | 3 | 10,00 | 40 |
| 2281547 » | 022849-000040 | Straight-Cylindrical | 4,0 | 4 | 14,00 | 50 |
| 2281548 » | 022849-000050 | Straight-Cylindrical | 5,0 | 5 | 16,00 | 60 |
| 2281549 » | 022849-000060 | Straight-Cylindrical | 6,0 | 6 | 20,00 | 60 |
| 2281550 » | 022849-000080 | Straight-Cylindrical | 8,0 | 8 | 25,00 | 75 |
| 2281551 » | 022849-000100 | Straight-Cylindrical | 10,0 | 10 | 25,00 | 75 |
| 2281552 » | 022849-000120 | Straight-Cylindrical | 12,0 | 12 | 25,00 | 75 |
