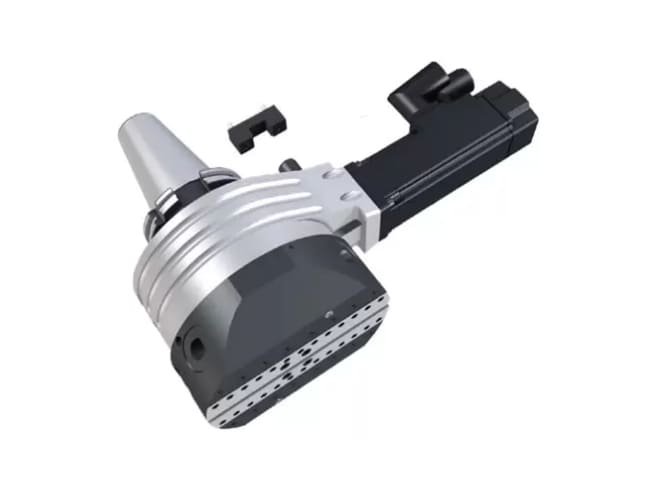

Engineered for advanced machining performance, the TA-Tronic 2 features automatic balancing counterweights and programmable slide movement through the machine’s U-axis. Its modular arbor compatibility and integrated coolant delivery enhance machining stability, insert life, and surface finish quality, making it suitable for demanding production processes requiring precision and repeatability.
TA-Tronic 2 D`Andrea

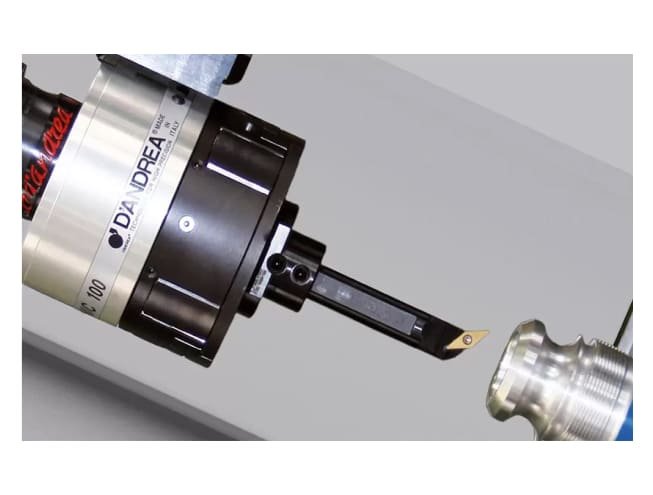

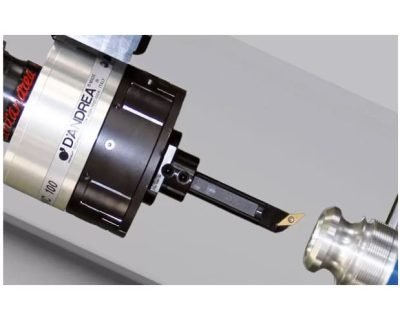

The TA-Tronic 2 combines intelligent CNC control with robust mechanical construction to execute complex internal and external machining cycles efficiently. Capable of interpolation with multiple machine axes, it supports conical boring, radii machining, spiral cutting, and threading, delivering exceptional versatility for modern manufacturing systems requiring automated precision tooling solutions.
Features
Overview
| Specification | Details |
|---|---|
| Product Name | TA-Tronic 2 (TA-T2) |
| Brand | D’Andrea |
| Tool Type | CNC Boring and Facing Head |
| Available Sizes | Ø110 mm / Ø170 mm |
| Control System | CNC connection via U-axis |
| Drive System | Integrated servo motor |

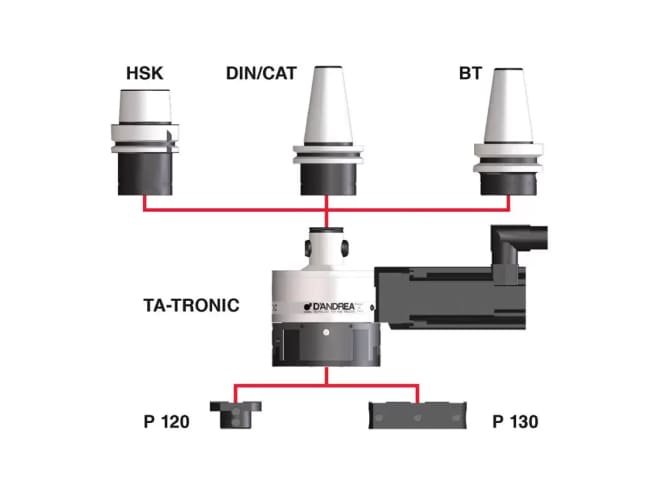

| Mounting | Taper shank with anti-rotation pin or flange |
| Machine Compatibility | Machining centers, boring machines, special machines |
| Coolant Supply | Through body with adjustable nozzles (≤ 50 bar recommended) |

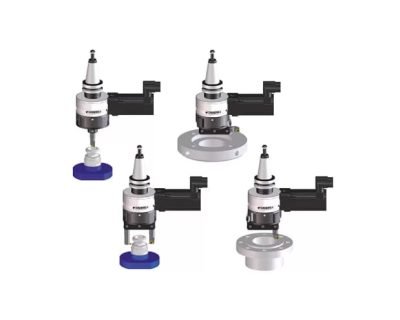

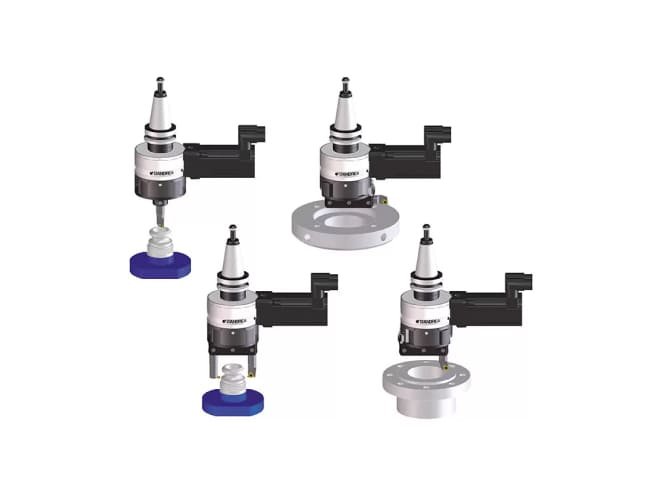

| Operations | Boring, internal/external facing, turning, grooves, threads, conical machining, radii |
| Balancing | Automatic counterweight system |
