The TP915 Series by Taipu features a power arm that can swing or be positioned over workpieces without moving them. The TP915-12A supports tapping capacity from M2 to M12, while the TP915-16A handles up to M2 to M16. Working radius is 915 mm, chuck size Ø19 mm, and speed variable 0-600 rpm. Power requirement is 1.2 kW. Designed for both vertical and horizontal tapping operations with floating arm designs for flexibility.

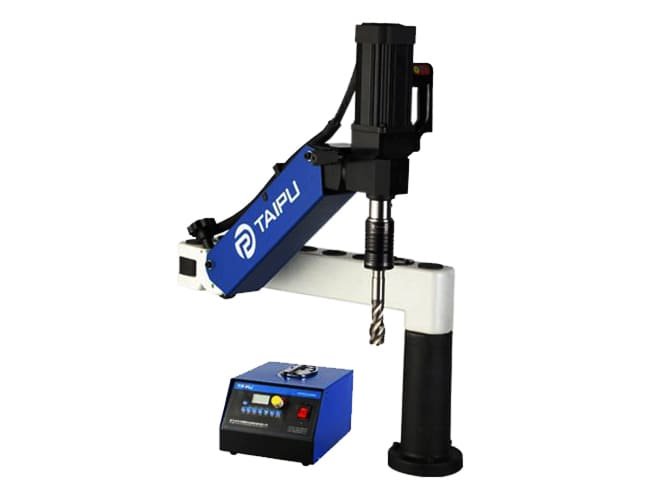

Taipu Arm Tapping Machine TP915 Series

Want easier tapping without moving the part? The Taipu TP915 Series gives you a long arm (915 mm reach), solid power (1.2 kW), and flexibility for taps from tiny (M2) up to M16. The quick-change chuck and variable speed let operators work faster with less setup. Good fit for workshops and production lines with lots of tapping jobs.

Features

Reachable Swing Radius (915 mm Arm)

The long arm gives a 915 mm radius, allowing the tapping head to reach over larger work-pieces without repositioning them. This improves efficiency and reduces handling.

Tapping Capacity from M2 to M16

Depending on model: TP915-12A covers M2-M12; TP915-16A covers up to M16. Good for a variety of thread sizes in workpieces.

Variable Speed up to 600 rpm

Adjustable rotational speed (0-600 rpm) lets you match speed to material type and tap size, helping to reduce wear or breakage.

Chuck Size Ø19 mm

The chuck can accommodate taps/tooling up to Ø19 mm, allowing for larger or more robust tap tools when needed.

Power 1.2 kW Motor

The 1.2 kW power provides sufficient torque to reliably drive tapping over the range of thread sizes supported, especially when larger taps or harder materials are used
