Taipu’s TP1800 Series offers flexibility and performance: a large arm span of 1800 mm lets operators reach wide areas, while its electric motor drives a planetary two-speed gear system. With tapping capacities up to M16, tool change in 3-5 seconds, stable speed control, and reduced vibration, it’s designed for versatile shop-floor usability.

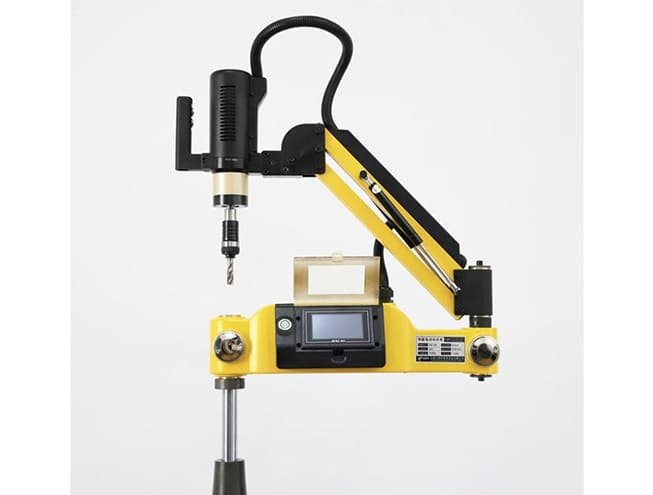

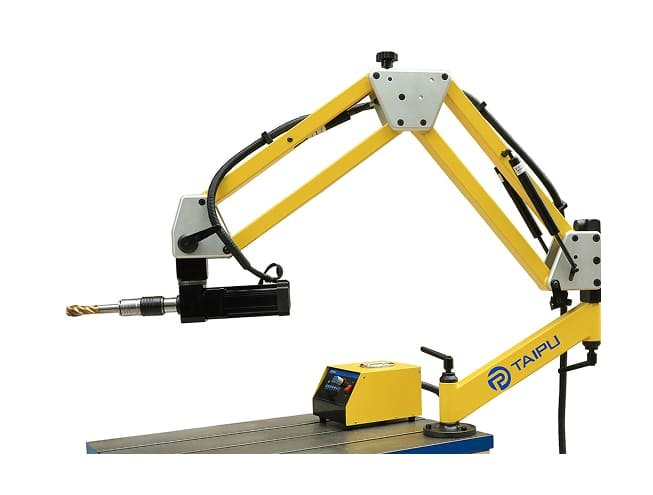

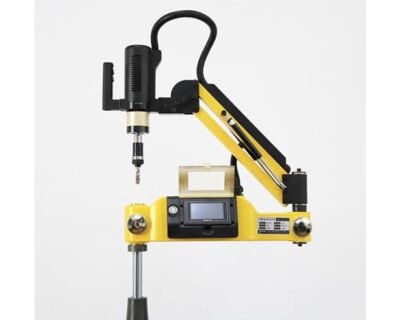

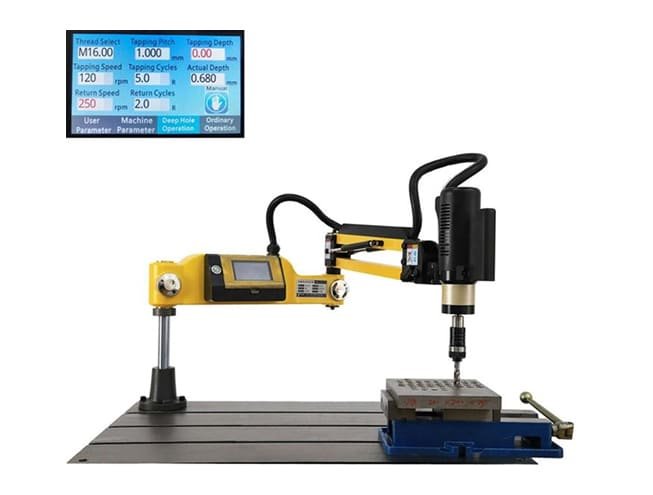

Taipu Tapping Machine TP1800 Series

Make thread-tapping faster and cleaner with the TP1800 Series. Whether you’re tapping tiny holes or medium-size bolts, its wide reach (1800 mm), quick-swap chuck, programmable electric drive, and consistent torque give you more control, less downtime, and more comfort for your operators.

Features

Wide Working Radius (1800 mm)

Enables tapping across large work areas without repositioning workpiece.

Quick-Change Chuck (Φ19 mm)

Allows tool swaps in about 3-5 seconds; minimizes downtime.

Electric Motor, Speed up to 600 rpm

Offers smoother, programmable tapping with less vibration compared to pneumatic systems.

Tapping Capacity M2-M16

Covers a wide range of thread sizes for small to medium parts.

Compact, Light Arm Design with Stable Torque

Despite large reach, the arm is light; locking and fluid arm reduce operator fatigue.

Overview

Specification Item	Unit	TP1800-12A(U)	TP1800-16A(U)
Tapping Capacity	—	M2-M12	M2-M16
Working Radius	mm	1800	1800
Chuck Size	mm	Φ19	Φ19
Power	kW	1.2	1.2
Speed (rpm)	rpm	0-600	0-250
Net / Gross Weight	kg	30 / 38	32 / 40
Package Size (L×W×H)	mm	675×450×250	675×450×250
