Engineered for heavy-duty machining, the U-Tronic features programmable radial slide movement and interpolation with multiple machine axes for advanced machining cycles. Internal coolant passages and optional counterweight balancing improve stability and tool life, making it ideal for large-diameter machining applications requiring accuracy, productivity, and reliability in industrial production environments.

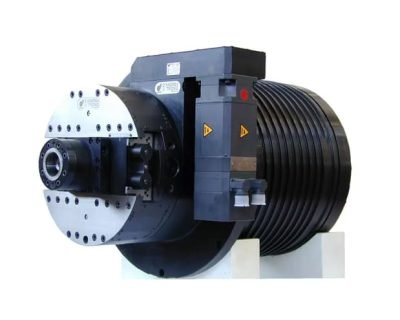

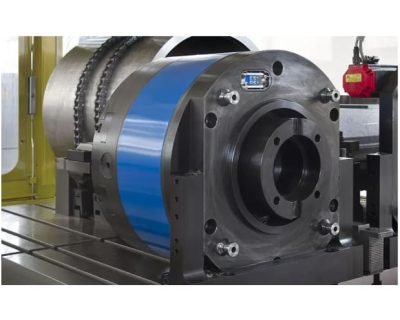

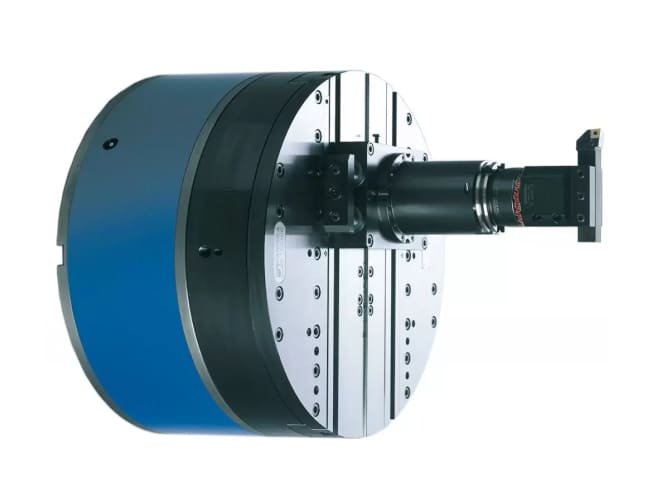

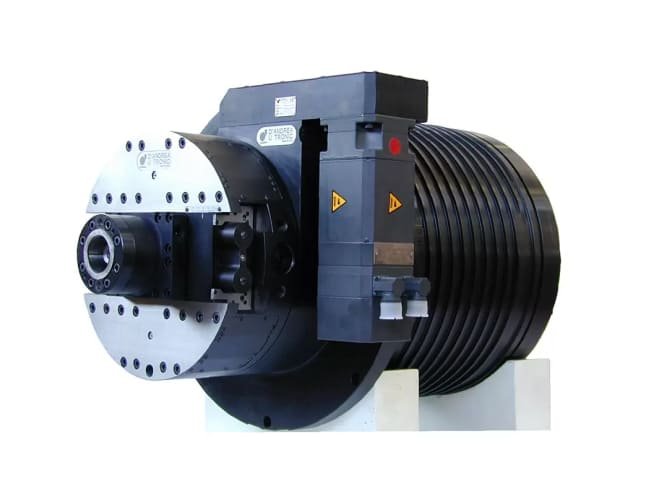

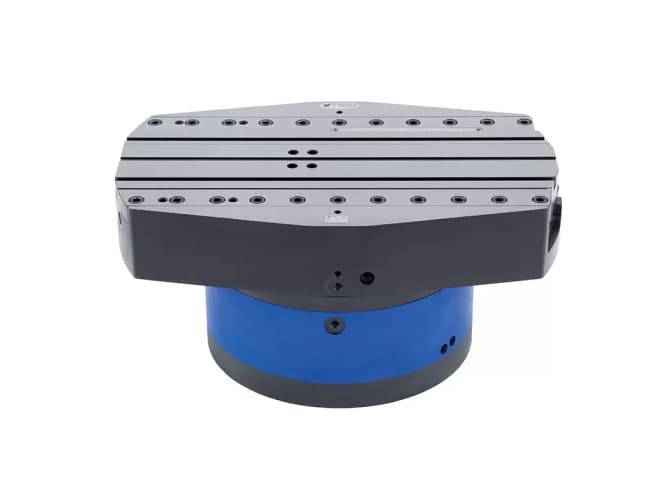

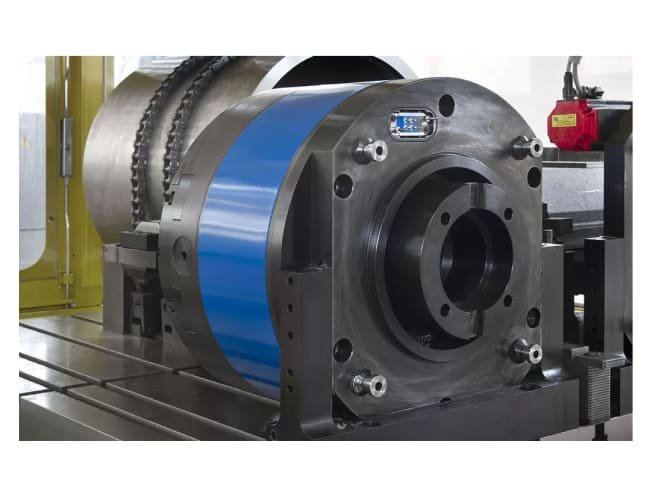

U-Tronic D`Andrea
The U-Tronic series transforms machine tools into multifunction machining systems capable of turning-like operations. Supporting concave and convex radii, spherical profiles, and complex geometries, it offers flexibility for automated or manual integration, pallet systems, and special machine configurations, ensuring superior performance for demanding large-scale machining operations across diverse manufacturing industries.
Features
Overview
| Specification | Details |
|---|---|
| Product Name | U-Tronic (UT Series) |
| Brand | D’Andrea |
| Tool Type | CNC Boring and Facing Head |
| Standard Models | 6 models (e.g., UT 3-360 to UT 8-1000) |
| Diameter Range | Ø360 mm to Ø1000 mm (special up to Ø1600 mm) |
| Control System | CNC connection via machine U-axis |
| Mounting | Manual, automatic, or palletized installation |
| Coolant Supply | Internal coolant passage |
| Machine Compatibility | Boring machines, machining centers, special machines |
| Optional Configurations | Double slide, reduction gear, counterweights |
| Operations | Internal/external facing, boring, threading, conical machining, radii, spherical machining |
