Designed for versatility and performance, the M1200 Mini milling bodies provide maximum teeth density per diameter, enabling increased feed rates and reduced cycle times. The cutters deliver stable operation with optimized chip evacuation and improved wear resistance. Ideal for light to medium machining, they support consistent results in industrial milling applications.

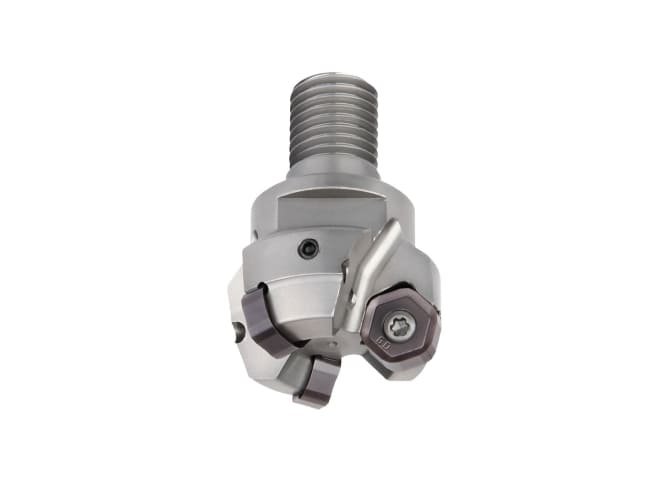

Victory M1200 Body Mini Series Widia
WIDIA Victory M1200 Mini tool bodies combine durable construction with advanced insert technology to achieve reliable machining performance. The 45-degree lead angle design reduces cutting forces while improving tool life. Suitable for steel, stainless steel, cast iron, and non-ferrous materials, the system ensures dependable productivity in modern manufacturing operations.
Features
Spesification
| Specification | Details |
|---|---|
| Brand | WIDIA |
| Series | Victory™ M1200 Mini (Body Mini Series) |
| Tool Type | Indexable Face Mill / Shell Mill Body |
| Lead Angle | 45° |
| Insert Compatibility | HNGJ / HN.. series inserts (12 cutting edges) |
| Maximum Depth of Cut | Up to 3.5 mm (0.138 in) |
| Diameter Range | Approx. 25 mm – 125 mm+ (model dependent) |
| Number of Inserts | 2 – 16 (depending on cutter size) |
| Mounting Style | Cylindrical shank, screw-on, or shell mill arbor |
| Coolant Supply | Through coolant available (model dependent) |
| Workpiece Materials | Steel, stainless steel, cast iron, non-ferrous alloys |
| Application | Face milling, shoulder milling, chamfering |
