Manufactured from micro-grain solid carbide, the ILIX 6052XB provides superior rigidity, wear resistance, and dimensional accuracy. The DIN 6537L long-series design supports drilling depths up to 5×D, while polished flutes improve chip flow. Its advanced coating technology enhances durability, making it suitable for high-speed industrial production environments.

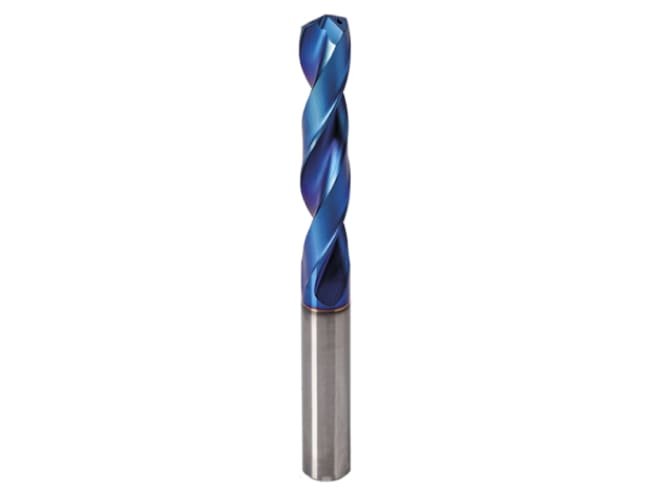

6052XB Drill Bit DIN 6537L ILIX

Equipped with internal cooling capability, the ILIX 6052XB delivers coolant directly to the cutting edges, improving lubrication and thermal stability during machining. Optimized for stainless steel, titanium alloys, and heat-resistant materials, this drill offers consistent hole quality, higher productivity, and significantly longer service life compared with conventional carbide drills.

Features

Solid Carbide Micrograin

High toughness and wear resistance (K40F grade)

Internal Coolant Channels

Efficient heat dissipation and chip evacuation

TiAlN Multilayer Coating

Improved durability and cutting performance

DIN 6537L Long Series

Drilling depth up to 5×D

Polished Flutes

Reduced friction and enhanced surface quality

Spesification

Material	Vc (m/min)	Feed f (mm/r) for ø
Material	6052XB	3 – 5 5 xd	5 – 8 5xd	8 – 12 5xd	12 – 16 5xd
Stainless, heat and acid resistant steel (Ni < 3%)	70	0.04 – 0.055	0.06 – 0.08	0.08 – 0.12	0.12 – 0.20
Stainless, austentic, heat and acid resistant steel (Ni > 4%)	45	0.025 – 0.035	0.035 – 0.06	0.06 – 0.10	0.10 – 0.15
Special alloys based on Ni-Co 900 – 1,200 N/mm²	40	0.03 – 0.05	0.05 – 0.08	0.08 – 0.11	0.11 – 0.15
Titanium and titanium alloys up to over 700 N/mm²	50	0.03 – 0.05	0.05 – 0.08	0.08 – 0.10	0.10 – 0.14

Spesification

N.Cod.						6052XB	N.Cod.						6052XB
Type Record						VA i	Type Record						VA i
Cutting direction						Right hand	Cutting direction						Right hand
Material						K 40F	Material						K 40F
ø mm d₂ m7	l1	l2	l3	l4	h6		ø mm d₂ m7	l1	l2	l3	l4	h6
3.0	66	28	23	36	6	•	6.7	91	53	43	36	8	•
3.1	66	28	23	36	6	•	6.8	91	53	43	36	8	•
3.2	66	28	23	36	6	•	6.9	91	53	43	36	8	•
3.3	66	28	23	36	6	•	7.0	91	53	43	36	8	•
3.4	66	28	23	36	6	•	7.1	91	53	43	36	8	•
3.5	66	28	23	36	6	•	7.2	91	53	43	36	8	•
3.6	66	28	23	36	6	•	7.3	91	53	43	36	8	•
3.7	66	28	23	36	6	•	7.4	91	53	43	36	8	•
3.8	74	36	29	36	6	•	7.5	91	53	43	36	8	•
3.9	74	36	29	36	6	•	7.6	91	53	43	36	8	•
4.0	74	36	29	36	6	•	7.7	91	53	43	36	8	•
4.1	74	36	29	36	6	•	7.8	91	53	43	36	8	•
4.2	74	36	29	36	6	•	7.9	91	53	43	36	8	•
4.3	74	36	29	36	6	•	8.0	91	53	43	36	8	•
4.4	74	36	29	36	6	•	8.1	103	61	49	40	10	•
4.5	74	36	29	36	6	•	8.2	103	61	49	40	10	•
4.6	74	36	29	36	6	•	8.3	103	61	49	40	10	•
4.7	74	36	29	36	6	•	8.4	103	61	49	40	10	•
4.8	82	44	35	36	6	•	8.5	103	61	49	40	10	•
4.9	82	44	35	36	6	•	8.6	103	61	49	40	10	•
5.0	82	44	35	36	6	•	8.7	103	61	49	40	10	•
5.1	82	44	35	36	6	•	8.8	103	61	49	40	10	•
5.2	82	44	35	36	6	•	8.9	103	61	49	40	10	•
5.3	82	44	35	36	6	•	9.0	103	61	49	40	10	•
5.4	82	44	35	36	6	•	9.1	103	61	49	40	10	•
5.5	82	44	35	36	6	•	9.2	103	61	49	40	10	•
5.6	82	44	35	36	6	•	9.3	103	61	49	40	10	•
5.7	82	44	35	36	6	•	9.4	103	61	49	40	10	•
5.8	82	44	35	36	6	•	9.5	103	61	49	40	10	•
5.9	82	44	35	36	6	•	9.6	103	61	49	40	10	•
6.0	82	44	35	36	6	•	9.7	103	61	49	40	10	•
6.1	91	53	43	36	8	•	9.8	103	61	49	40	10	•
6.2	91	53	43	36	8	•	9.9	103	61	49	40	10	•
6.3	91	53	43	36	8	•	10.0	103	61	49	40	10	•
6.4	91	53	43	36	8	•	10.1	118	71	56	45	12	•
6.5	91	53	43	36	8	•	10.2	118	71	56	45	12	•
6.6	91	53	43	36	8	•	10.3	118	71	56	45	12	•

Spesification

Type Record						Va i
Cutting Direction						Right hand
Material						K 40F
ø mm d₂ m7	l1	l2	l3	l4	h6
10.4	118	71	56	45	12	•
10.5	118	71	56	45	12	•
10.6	118	71	56	45	12	•
10.7	118	71	56	45	12	•
10.8	118	71	56	45	12	•
10.9	118	71	56	45	12	•
11.0	118	71	56	45	12	•
11.1	118	71	56	45	12	•
11.2	118	71	56	45	12	•
11.3	118	71	56	45	12	•
11.4	118	71	56	45	12	•
11.5	118	71	56	45	12	•
11.6	118	71	56	45	12	•
11.7	118	71	56	45	12	•
11.8	118	71	56	45	12	•
11.9	118	71	56	45	12	•
12.0	118	71	56	45	12	•
12.5	124	77	60	45	14	•
13.0	124	77	60	45	14	•
13.5	124	77	60	45	14	•
14.0	124	77	60	45	14	•
14.5	133	83	63	48	16	•
15.0	133	83	63	48	16	•
15.5	133	83	63	48	16	•
16.0	133	83	63	48	16	•
