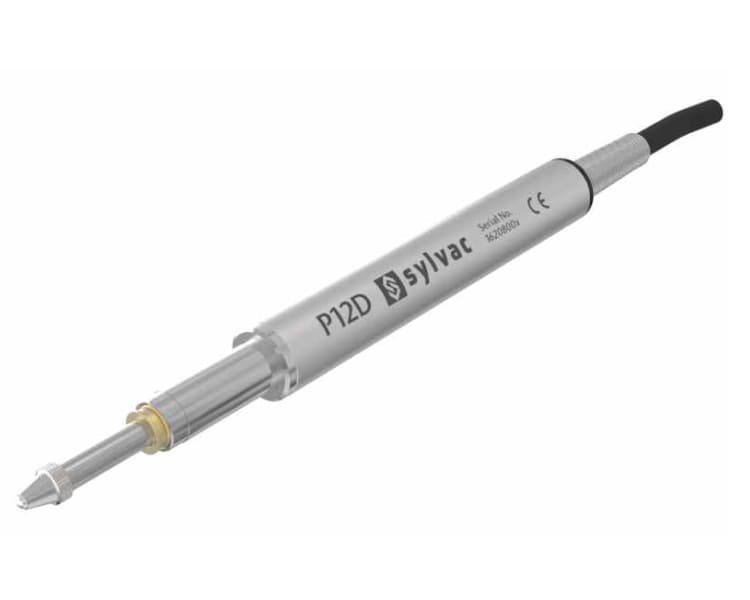

Absolute Digital Measuring Probes P12D Sylvac

Discover the Absolute Digital Measuring Probes P12D, offering a 12.7mm (1⁄2in) range and a choice between 0.1µm or 0.01µm resolution for precise measurements.

Features

Extensive Measuring Range

Experience a measuring range of 12.7mm (1⁄2in), catering to a wide range of measurement needs.

Flexible Resolution Options

Choose between a resolution of 0.1µm (standard) or 0.01µm (high resolution), allowing and detailed measurements.

Superior Accuracy and Repeatability

Benefit from very high accuracy and repeatability, with maximum errors ranging from 0.6µm.

Innovative Dual Measuring System

Our instrument features a patented dual inductive and capacitive measuring system.

Robust and Durable Construction

Enjoy the reliability of an extremely robust ball bearing guide, guaranteeing a minimum of 100 million cycles.

Absolute System with Integrated Error Correction

Experience the convenience of an absolute system with integrated electronic error correction, eliminating the need for pairing.

Overview

PRO	801-1012	801-1018	801-1212	801-1218
EAN	7640125681352	7640125688771	7640125715552	7640125715668
Resolution type	High resolution
Type	P12D HR USB	P12D HR USB CF ²	P12D HR M8	P12D HR MB CF ²
Force ¹ (N)	0.2 – 0.3	0.08	0.2 – 0.3	0.08
Measuring range (mm)	12.7
Resolution (µm)	0.01
Max. Error (µm)	0.6
Repeatability (µm)	0.08
Nb measures/s	up to 100/s, according to configuration ³
Output data	USB		M8
Cable output	Straight

STANDARD	801-2012	801-2017	801-2212
EAN	7640125681208	7640125681222	7640125712384
Resolution type	Standard

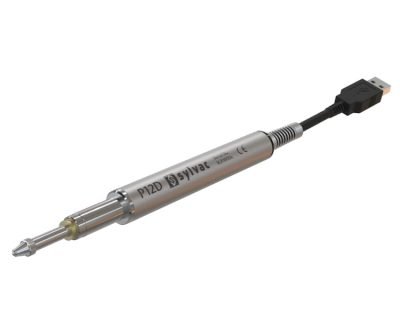

Type	P12D USB	P12D USB LF ⁴	P12D M8
Force ¹ (N)	0.4 – 0.8	0.2 – 0.3	0.4 – 0.8
Measuring range (mm)	12.7
Resolution (µm)	0.1
Max. Error (µm)	1
Repeatability (µm)	0.2
Nb measures/s	up to 100/s, according to configuration ³
Output data	USB		M8
Cable output	Straight

WORK	801-0212	801-0012
EAN	7640125698800	7640125698817
Resolution type	Standard
Type	P12D WORK M8	P12D WORK USB
Force ³ (N)	0.4 – 0.8
Measuring range (mm)	12.7
Resolution (µm)	0.1
Max. Error (µm)	1.8
Repeatability (µm)	0.2
Nb measures/s	up to 100/s, according to configuration ³
Output data	M8	USB
Cable output	Straight

OPEN	801-0412
EAN	7640125689280
Resolution type	Standard
Type	P12D OPEN
Force ³ (N)	0.4 – 0.8
Measuring range (mm)	12.7
Resolution (µm)	0.1
Max. Error (µm)	1.8
Repeatability (µm)	0.2
Nb measures/s	up to 100/s, according to configuration ³
Output data	OPEN
Cable output	Straight
