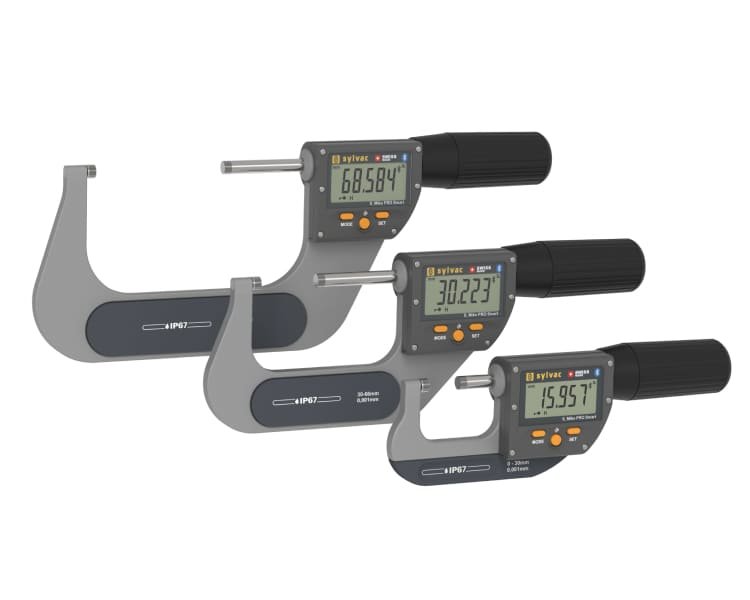

Professional Micrometer S_MIKE Pro Cylindrical Ø6.5 Smart Sylvac
The Sylvac Professional Micrometer S_MIKE Pro Cylindrical Ø6.5 Smart offers high-speed, precise measurements across three ranges with a resolution of 0.001 mm. Featuring integrated Bluetooth® for seamless data transfer, it ensures stability, reliability, and efficiency in quality control and precision manufacturing tasks.
43 people are viewing this product right now
🔥 4 items sold in last 3 hours
Professional Micrometer S_MIKE Pro Cylindrical Ø6.5 Smart Sylvac
The Sylvac Professional Micrometer S_MIKE Pro Cylindrical Ø6.5 Smart provides high-speed, precise measurements across three ranges with a 0.001 mm resolution.
Features
Overview
| 803-0306 | 903-0606 | 903-1006 | |
| EAN | 7640125711905 | 7640125713237 | 7640125713244 |
| Measuring range (mm) | 0-30 | 30-66 | 66-102 |
| Max. Error MPEյ¹ (µm) | 3 | 4 | 5 |
| Repeatability² (µm) | 1 | 1 | 1 |
| Anvils types | Ø6.5 ³ | ||

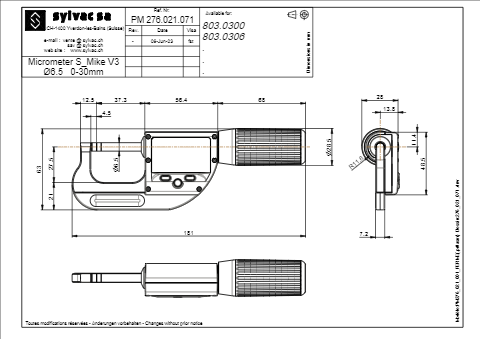

| A (mm) | 37.3 | 73.3 | 109.3 |
| B (mm) | 27.5 | 43 | 60 |
| C (mm) | 68 | 74 | 74 |
| D (mm) | 12.5 | 13.5 | 14.5 |
| E (mm) | 63 | 86 | 106 |
| F (mm) | 181 | 230 | 269 |
| G (mm) | 7.2 | 9 | 9 |
| Output data | Bluetooth® wireless technology | ||
| Prot. rating accor. to IEC 60529 | IP67 even connected | ||
| Setting by PC | ⬤ | ||
| Adjustable measuring force | 5N / 10N | 10N | |
| Non-rotating spindle | ⬤ | ||
| Fast movement | ⬤ | ||
| Preset function | ⬤ | ||
| Smart Inductive Sensor | ⬤ | ||
