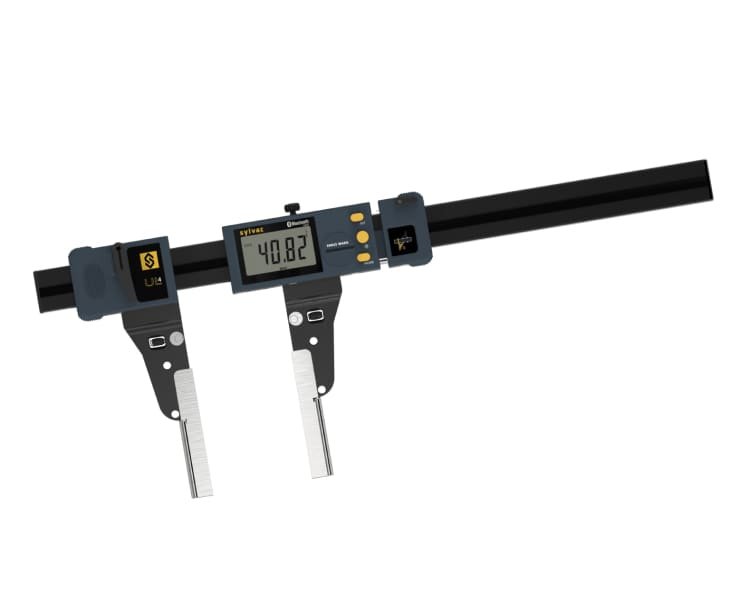

Ultra Light Caliper UL4 Special Jaws Type C Sylvac

The Sylvac Ultra Light Caliper UL4 Special Jaws Type C offers unmatched portability with a wide measuring range from 400 to 3000 mm. Crafted with a special aluminum frame reinforced with stainless steel guide rods, it ensures durability and accuracy. Featuring Bluetooth® Smart for seamless data transmission and a user-friendly design with an XXL display unit, it enhances productivity and convenience in measurement tasks.

45 people are viewing this product right now

🔥 10 items sold in last 3 hours

Categories: Calipers, Hand Tools, Measurement

Estimated delivery:May 27, 2026 - May 29, 2026

Description

Ultra Light Caliper UL4 Special Jaws Type C Sylvac

The Sylvac Ultra Light Caliper UL4 Special Jaws Type C combines unmatched portability with a wide measuring range of 400 to 3000 mm. Its durable design features a special aluminum frame reinforced with stainless steel guide rods. Equipped with Bluetooth® Smart for seamless data transmission and an XXL display unit.

Features

Unprecedented Size, Unmatched Portability

Our large callipers offer impressive measuring ranges from 400 to 3000 mm, making them perfect for accurately measuring large dimensions.

Seamless Data Aquisition

Integrated Bluetooth® Smart data transmission, allowing you to transmit measurements wirelessly, quickly and error-free for enhanced productivity. Also features a Proximity data output.

Built to last

rafted with a frame made of special aluminum profile reinforced with 4 stainless steel guide rods, our IP67 callipers are built to withstand the demands of rigorous use while maintaining stability and accuracy.

User-Friendly Design

The XXL display unit, with digits 20 mm high, offers excellent readability. With three buttons, including a central button with a selectable favorite function.

Controlled force

To ensure accurate and consistent measurements, our callipers are equipped with an integrated force control device. This feature allows the operator to verify.

Adaptable to your needs

Jaws available in ≤200mm or ≤300mm for optimal precision and performance in internal measurements.

Overview

	811-2319-99
EAN	7640125681857
Special jaws (pair)	Lenght L to specify with order (max 300 mm)
L max (mm)	300
M (mm)	L – 75

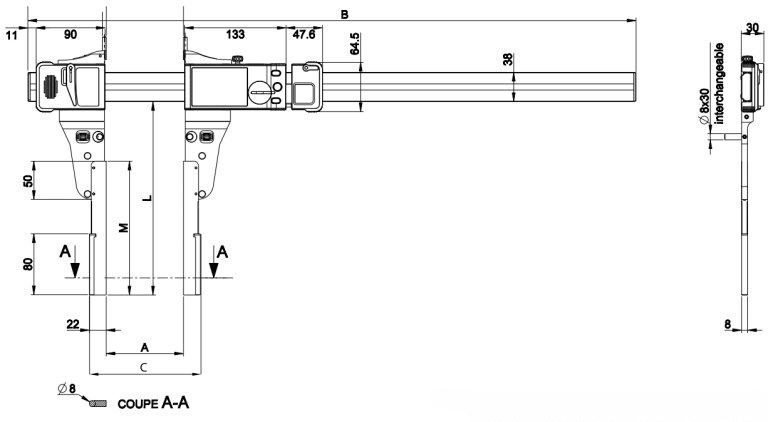

	UL 400	UL 600	UL 1000	UL 1500	UL 2000	UL 2500	UL 3000
UL specification	Max. error. (μm) / Repeatability (μm)
With Jaws ≤ 200 (mm)	40/20	50/20	70/30	120/30	170/30	210/30	300/40
With Jaws ≤ 300 (mm)	50/30	60/30	90/30	150/30	200/40	300/40	400/50
Measuring range (mm)	400	600	1000	1500	2000	2500	3000
A (mm)	0-478	0-683	0-1093	0-1608	0-2123	0-2638	0-3153
C (mm)	44-522	44-727	44-1137	44-1652	44-2167	44-2682	44-3197
B (mm)	796	1001	1411	1926	2441	2956	3471
Resolution (mm)	0.01
Measuring Force (N)	7.5 – 11.5 (±20%)
Output data	Bluetooth® wireless technology/ RS232 / USB
IP67 Protection	⬤
Preset max.	±9999.99 mm / ±399.9995 IN
Setting by PC	⬤
2 references	⬤
Min/Max function	⬤
Tolerance limit indicators	⬤
