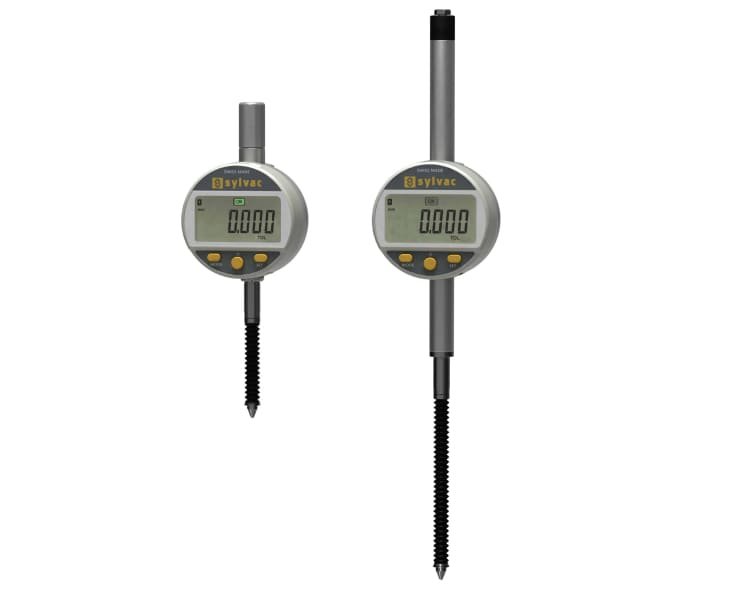

Digital Indicator S_DIAL Work Advanced IP67 Sylvac
The Sylvac Digital Indicator S_DIAL Work Advanced IP67 offers enhanced protection with its robust IP67 rating and bellows-protected stem. It features easy readings with a rotatable display and offers MIN/MAX/DELTA functions, LED tolerance status, and battery-free operation for streamlined workflow.
23 people are viewing this product right now
🔥 12 items sold in last 3 hours
Digital Indicator S_DIAL Work Advanced IP67 Sylvac
The Sylvac Digital Indicator S_DIAL Work Advanced IP67 provides enhanced durability with an IP67 rating and a bellows-protected stem. It has a rotatable display for easy reading, MIN/MAX/DELTA functions, LED tolerance indicators, and operates without a battery, streamlining workflows.
Features
Overview
| 805-5305 | 805-5505 | 805-5625 | |
| EAN | 7640125716375 | 7640125716405 | 7640125697568 |
| Measuring range (mm) | 12.5 | 25 | 50 |
| Resolution (mm) | 0.001 | ||
| Max. Error fe (µm) | 3 | 4 | 5 |
| Repeatability (µm) | 2 | ||
| IP rating | IP67 | ||
| A (mm) | 59.6 | 85.4 | 104.4 |
| B (mm) | 78.4 | 99.7 | 175.3 |
| C (mm) | 50.5 | 50.5 | 88 |
| D (mm) | 36.6 | 49.4 | – |
| Output data | USB / RS232 | ||
| Programmable by PC | ⬤ | ||
| Standard functions (customized by PC) | mm/inch, ref I/II, preset (max 999.999) min/max/delta, toleances, resolution, direction of measurement, multiplication factor, automatic or manual switch off, key lock | ||
| Measuring Force | P 12.5 | P 25 | P 50 | 810-1532 |
| Standard (N) | 0.7 – 1.4 | 0.65 – 1.8 | 0.9 – 2.8 | 7640125682366 |
