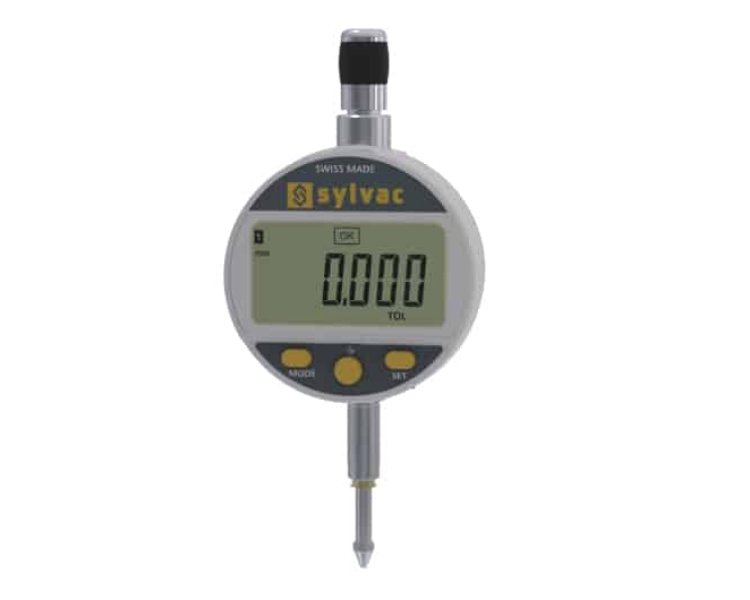

Digital Indicator S_DIAL Work Advanced Sylvac
The Sylvac Digital Indicator S_DIAL Work Advanced offers easy readings with a large rotatable display and LED tolerance status. It operates without batteries using proximity and power data outputs and boasts water and coolant resistance. With various functions and flexible measuring ranges, it enhances efficiency and convenience.
17 people are viewing this product right now
🔥 4 items sold in last 3 hours
Digital Indicator S_DIAL Work Advanced Sylvac
The Sylvac Digital Indicator S_DIAL Work Advanced features a large, rotatable display and LED tolerance indicators for easy readings. This battery-free device, powered by proximity and data outputs, is resistant to water and coolant.
Features
Overview
| 805-5201 | 805-5301 | 805-5401 | 805-5501 | 805-5601 | 805-5621 | |
| EAN | 7640125697483 | 7640125716368 | 7640125697513 | 7640125716344 | 7640125697544 | 7640125697551 |
| Measuring range (mm) | 12.5 | 25 | 50 | |||
| Resolution (mm) | 0.01 | 0.001 | 0.01 | 0.001 | 0.01 | 0.001 |
| Max. Error fe (µm) | 10 ¹ | 3 | 10 ¹ | 4 | 20 ¹ | 5 |
| Repeatability (µm) | 2 | |||||
| IP rating | IP54 | |||||
| A (mm) | 56.7 | 69.4 | 121 | |||
| B (mm) | 66.1 | 78.5 | 142 | |||
| C (mm) | 50.5 | 50.5 | 88 | |||
| D (mm) | 36.6 | 49.4 | – | |||
| Output data | USB / RS232 | |||||
| Programmable by PC | ⬤ | |||||
| Standard functions (customized by PC) | mm/inch, ref I/II, preset (max 999.999) min/max/delta, toleances, resolution, direction of measurement, multiplication factor, automatic or manual switch off, key lock | |||||
| 805-5641 | 805-5661 | 805-5671 | 805-5681 | |
| EAN | 7640125697575 | 7640125697582 | 7640125697599 | 7640125697605 |
| Measuring range (mm) | 100 | 150 | ||
| Resolution (mm) | 0.01 | 0.001 | 0.01 | 0.001 |
| Max. Error fe (µm) | 20 ¹ | 6 | 20 ¹ | 10 |
| Repeatability (µm) | 2 | |||
| IP rating | IP54 | |||
| A (mm) | 172 | 224 | ||
| B (mm) | 244 | 349 | ||
| C (mm) | 139 | 193 | ||
| D (mm) | – | – | ||
| Output data | USB / RS232 | |||
| Programmable by PC | ⬤ | |||
| Standard functions (customized by PC) | mm/inch, ref I/II, preset (max 999.999) min/max/delta, toleances, resolution, direction of measurement, multiplication factor, automatic or manual switch off, key lock | |||
| Measuring force | 12.5 | 25 | 50 | 100 | 150 |
| Standard (N) | 0.65 – 0.9 | 0.65 – 1.15 | 1.1 – 2.6 | 1.8 – 3.8 | 2.6 – 5.7 |
| Low ² (N) | 0.4 – 0.55 | 0.45 – 0.9 | – | – | – |
| High ² (N) | 1.0 – 1.6 | 0.9 – 1.8 | – | – | – |
