Digital Indicator S_DIAL Work Analog Nano Smart Sylvac
The Sylvac Digital Indicator S_DIAL Work Analog Nano Smart offers unparalleled precision with a micron resolution and a large adaptive analog display. With integrated Bluetooth® technology and customizable functionality, it enhances productivity while operating without batteries for efficient performance. Built to last with versatile measuring ranges.
44 people are viewing this product right now
🔥 9 items sold in last 3 hours
Digital Indicator S_DIAL Work Analog Nano Smart Sylvac
The Sylvac Digital Indicator S_DIAL Work Analog Nano Smart delivers unparalleled precision with micron resolution and a large adaptive analog display.
Features
Overview
| 805-6307 | 805-6507 | |
| EAN | 7640125712971 | 7640125697650 |
| Measuring range (mm) | 12.5 | 25 |
| Resolution (mm) | 0.0001 | |
| Max. Error fe (µm) | 1.2 | 1.6 |
| Repeatability (µm) | 0.3 | |
| IP rating | IP54 | |

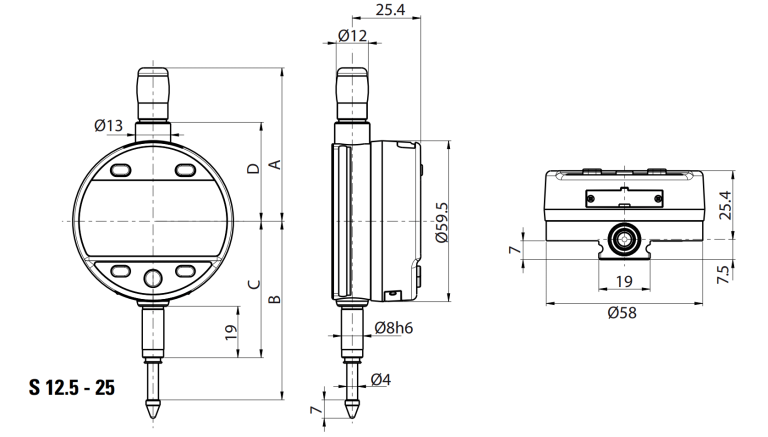

| A (mm) | 56.7 | 69.4 |
| B (mm) | 66.1 | 78.5 |
| C (mm) | 50.5 | 50.5 |
| D (mm) | 36.6 | 49.4 |
| Output data | Bluetooth® wireless technology / USB / RS232 | |
| Programmable by PC | ⬤ | |
| Standard functions (customized by PC) | mm/inch, preset (max 99.9999 or 999.999) min/max/delta, tolerances, resolution, direction of measurement, multiplication factor, automatic or manual switch off, key lock | |
| Measuring Force | S 12.5 | S 25 |
| Standard (N) | 0.65 – 0.9 | 0.65 – 1.15 |
| Low ¹ (N) | 0.4 – 0.55 | 0.45 – 0.9 |
| High ¹ (N) | 1.0 – 1.6 | 0.9 – 1.8 |
