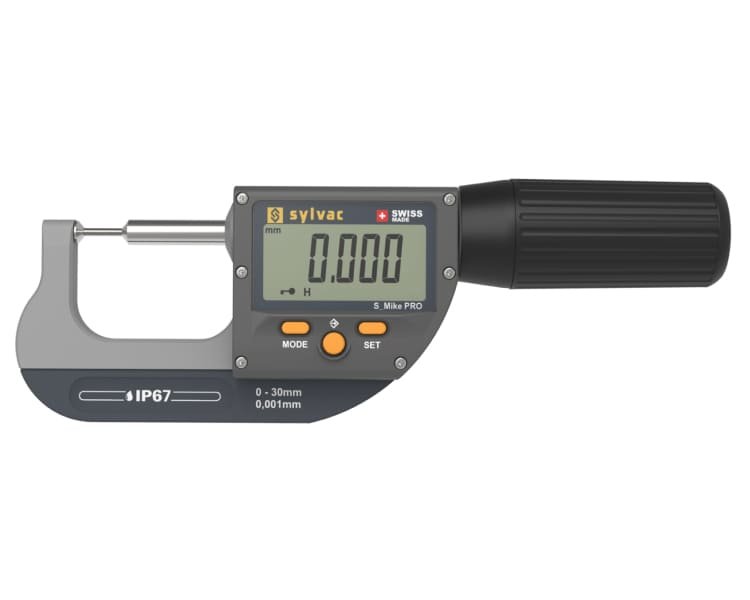

Professional Micrometer S_MIKE Pro Cylindrical Ø2 Sylvac

The Sylvac Professional Micrometer S_MIKE Pro Cylindrical Ø2 offers high-speed, accurate measurements with multiple measuring ranges and a display resolution of 0.001 mm. Featuring advanced connectivity options and stable, reliable performance, it’s ideal for quality control and precision manufacturing tasks.

44 people are viewing this product right now

🔥 11 items sold in last 3 hours

Categories: Calipers, Hand Tools, Measurement

Estimated delivery:May 27, 2026 - May 29, 2026

Description

Professional Micrometer S_MIKE Pro Cylindrical Ø2 S Sylvac

The Sylvac Professional Micrometer S_MIKE Pro Cylindrical Ø2 provides high-speed, accurate measurements with various ranges and a 0.001 mm display resolution.

Features

High-Speed and Accurate Measurements

This micrometer comes in 3 measuring ranges (0-25mm, 25-60mm, 60-95mm), with a display resolution of 0.001 mm.

Advanced Connectivity

This micrometer features a Proximity data output on all models, excepts 803.0307 that features an integrated Bluetooth® system, enabling quick and easy wireless data transfer.

Stable, Reliable and Repeatable

Precise and solid system featuring a ratchet that cancels operator influence and guarantees excellent repeatability, making this micrometer ideal for precision manufacturing.

Convenient Features

SIS Absolu System: Automatically wakes up when spindle is moved, enters sleep mode after 10 minutes of inactivity, position memorized in sleeping mode.

Built to Last

2mm cylindrical anvils made of tungsten carbide. This micrometer is designed to withstand heavy-duty work with a protection rating of IP67, even when connected.

Flexible and Cost Saving

With 2 selectable measuring forces 5N/10N (versions 903.030X) in one instrument. Customizable with diameter keys above 2mm upon request. Available in Bluetooth.

Overview

	803-0301	903-0601	903-1001	803-0307
EAN	7640125716498	7640125711080	7640125711103	7640125715989
Measuring range (mm)	0-25	25-60	60-95	0-25
Max. Error MPEյ¹ (µm)	3	4	5	3
Repeatability² (µm)	1	1	1	1
Anvils types	Ø2

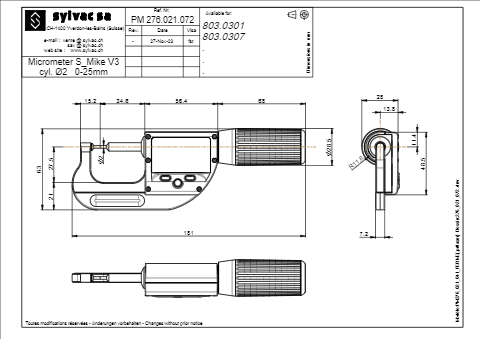

A (mm)	34.6	70.6	106.6	34.6
B (mm)	27.5	43	60	27.5
C (mm)	68	74	74	68
D (mm)	15.2	16.2	17.2	15.2
E (mm)	63	86	106	63
F (mm)	181	230	269	181
G (mm)	7.2	9	9	7.2
Output data	USB / RS 232			Bluetooth®
Prot. rating accor. to IEC 60529	IP67 even connected
Setting by PC	⬤
Adjustable measuring force	5N / 10N	10N		5N / 10N
Non-rotating spindle	⬤
Fast movement	⬤
Preset function	⬤
Smart Inductive Sensor	⬤
