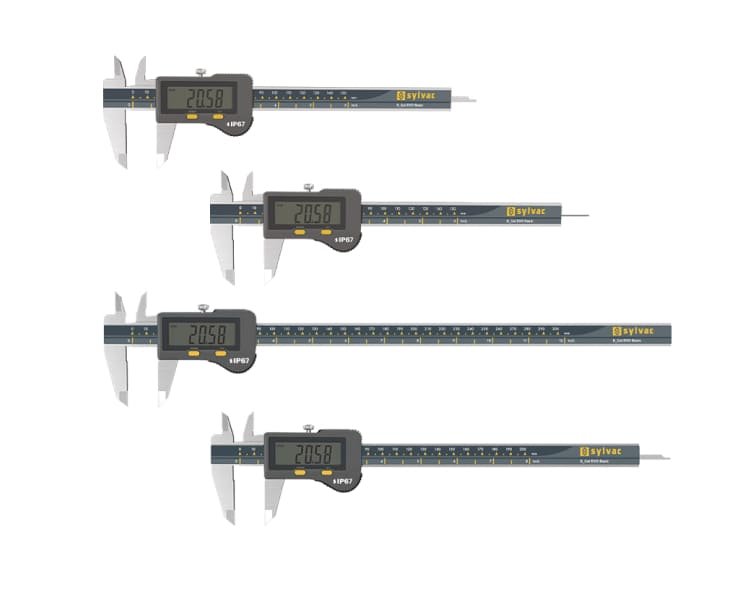

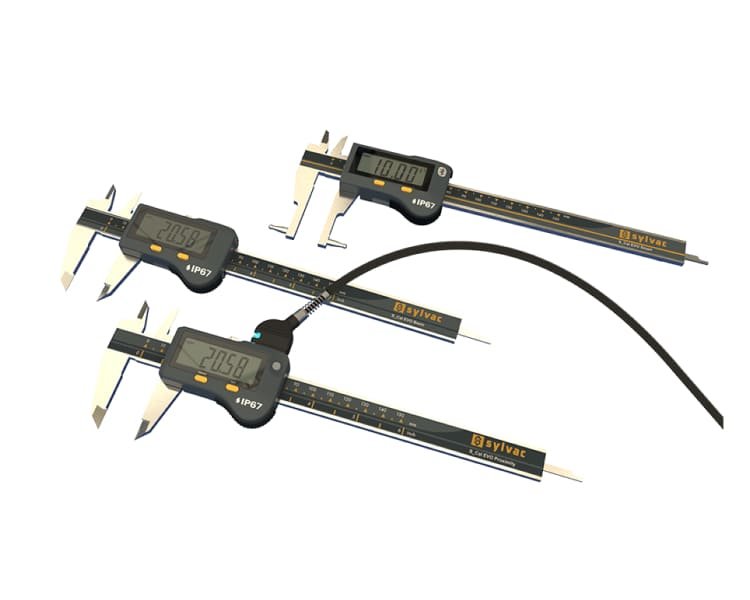

Caliper S_CAL Evo Basic Sylvac
The Sylvac S_CAL EVO BASIC caliper combines robust construction with smart design, featuring a 3.5 mm thick stainless steel frame and IP67 rating for durability. It offers a variety of configurations and measuring ranges up to 300mm, ensuring versatility for different needs. The extra-large display enhances readability, while intelligent power management with an automatic wake-up and sleeping mode optimizes battery life and efficiency in demanding environments.
39 people are viewing this product right now
🔥 6 items sold in last 3 hours
Caliper S_CAL Evo Basic Sylvac
The Sylvac S_CAL EVO BASIC caliper combines robust construction with smart design,
featuring a 3.5 mm thick stainless steel frame and IP67 rating for durability.
Features
Overview
| 810-1502 | 810-1507 | 810-1522 | 810-1532 | |
| EAN | 7640125682090 | 7640125714098 | 7640125682304 | 7640125682366 |
| Measuring range (mm) | 150 | 200 | 300 | |
| Max. Error G – external measurements EMPE (µm) | 20 ¹ | 30 ¹ | ||
| Max. Error – internal measurements SMPE (µm) | 20-30 ² | 30 ² | 40 ² | |
| A (mm) | 234.5 | 290.5 | 388 | |
| B (mm) | 40 | 50 | 64 | |
| C (mm) | 11 | 14 | ||
| D (mm) | 16 | 19 | ||
| E (mm) | 16 x 3.5 | 16 x 4 | ||
| Depth rod (mm) | ▬ 4 x 1.4 | Ø 1.5 | ▬ 4 x 1.4 | – |
| Protection rating according to IEC 60529 | IP67 | |||
