Digital Indicator S_DIAL Pro Smart Sylvac

The Sylvac Digital Indicator S_DIAL Pro Smart ensures high accuracy with a 0.0001 mm display resolution and minimal measuring error. Its Bluetooth® technology and various data outputs offer flexibility, while its durable construction and customizable features ensure long-lasting performance in various applications.

24 people are viewing this product right now

🔥 5 items sold in last 3 hours

Categories: Calipers, Hand Tools, Measurement, Micrometers

Estimated delivery:May 27, 2026 - May 29, 2026

Description

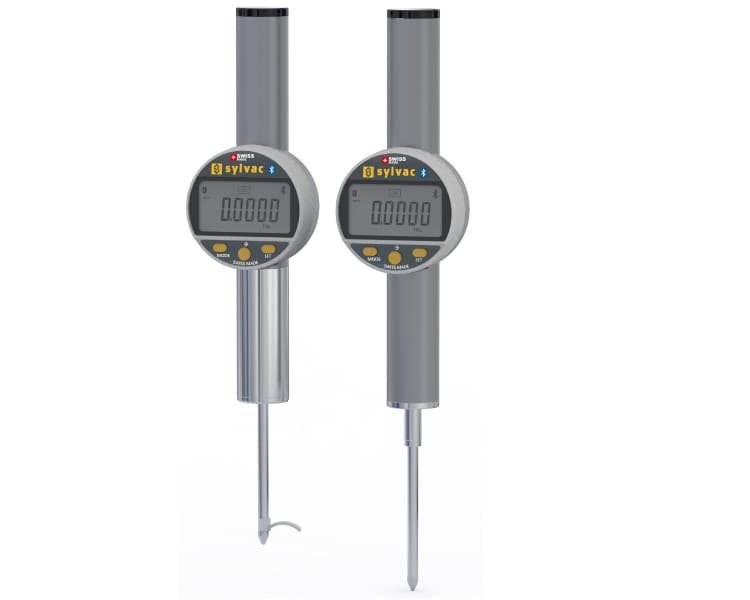

Digital Indicator S_DIAL Pro Smart Sylvac

The Sylvac Digital Indicator S_DIAL Pro Smart delivers high accuracy with a 0.0001 mm resolution and minimal error. It features Bluetooth® technology for flexible data output, durable construction, and customizable features.

Features

High accuracy over the entire measuring range

A high-resolution display with 0.0001 mm resolution and tolerance status indication delivers accurate measurements, while measuring error less than 1.2 μm over 50 mm ensures precision.

Flexibility & Efficiency

With Bluetooth® technology and proximity and power data outputs, this comparator can be used without batteries when connected by cable, providing flexible power options for efficient use.

Built to Last

The robust Ø 59.5 mm housing with a 270° rotatable design is built to withstand tough conditions, and the comparator’s protection class of IP54 ensures durable performance.

Customizable Measuring

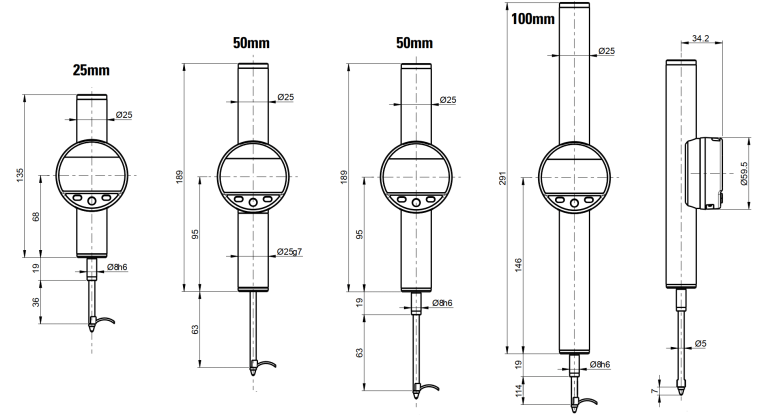

Select from a variety of measuring ranges, including 25, 50, and 100 mm, and choose a model with a clamping stem of ø8 or ø25 (depending on model) for customized integration options.

Wide Range of Features

A broad selection of functions, including MIN/MAX/DELTA, and a central button with a selectable favorite function, make this comparator convenient and easy to use.

Overview

	805-8501	805-8502	805-8601	805-8701
EAN	7640125697681	7640125697698	7640125697704	7640125697735
Measuring range (mm)	25		50
Resolution (mm)	0.0001
Max. Error fe (µm)	1.0		1.2
Repeatability (µm)	0.2
Output data	Bluetooth® wireless technology / USB / RS232
Programmable by PC	⬤
Clamping	ø8 h6
Spring	⬤	¹	⬤	¹
Measuring force (N)	0.75 – 1.0 ²	0.3 ²	0.85 – 1.2 ²	0.4 ²
IP rating	IP51
Standard functions (customizable by PC)	mm/inch, ref I/II, preset (max 99.9999) min/max/delta, tolerances, resolution, measuring direction, multiplier, automatic extinction/manual, keylock

	805-8602	805-8702	805-8661
EAN	7640125697711	7640125697742	7640125697728
Measuring range (mm)	50		100
Resolution (mm)	0.0001
Max. Error fe (µm)	1.2		1.8
Repeatability (µm)	0.2
Output data	Bluetooth® wireless technology / USB / RS232
Programmable by PC	⬤
Clamping	ø25 g7		ø8 h6
Spring	⬤	¹	⬤
Measuring force (N)	0.85 – 1.2 ²	0.4 ²	0.9 – 1.3 ²
IP rating	IP51
Standard functions (customizable by PC)	mm/inch, ref I/II, preset (max 99.9999) min/max/delta, tolerances, resolution, measuring direction, multiplier, automatic extinction/manual, keylock
