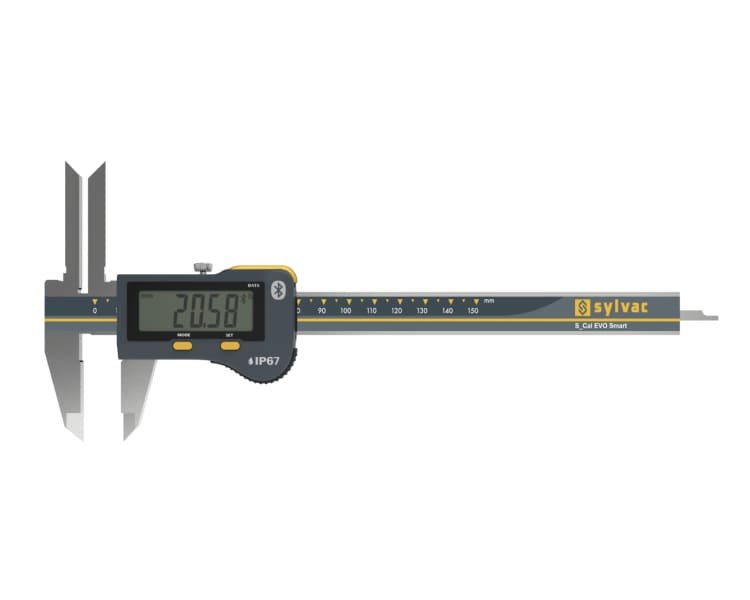

Caliper S_CAL Evo Smart Deep Measurement Sylvac

The Sylvac S_CAL Evo Smart Deep Measurement Caliper, with 45mm long jaws, is designed for deep internal measurements. Designed for deep internal measurements. It features Bluetooth® Smart data transmission, an IP67-rated stainless steel frame, and an extra-large display.

CALIPER S_CAL EVO SMART DEEP MEASUREMENT

Features

01
Enhanced Efficiency

Maximize productivity with a swift maximum speed of displacement of 2.5m/sec and benefit from the automatic wake-up feature when moving the electronic on its frame and enjoy.

02
Built to Last

Crafted with a mechanical frame in 3.5 mm thick hardened and ground stainless steel, our IP67 caliper ensures durability and longevity, providing reliable performance.

03
User-Friendly Design

Experience effortless measurement reading with the new extra-large display unit, boasting 11.5mm high digits for exceptional clarity, reducing errors and enhancing efficiency.

04
Seamless Data Aquisition

Integrated Bluetooth® Smart data transmission, allowing you to transmit measurements wirelessly, quickly and error-free for enhanced productivity.

05
Extended Reach

The 45mm long jaws allow for easy deep internal measurements.

Overview

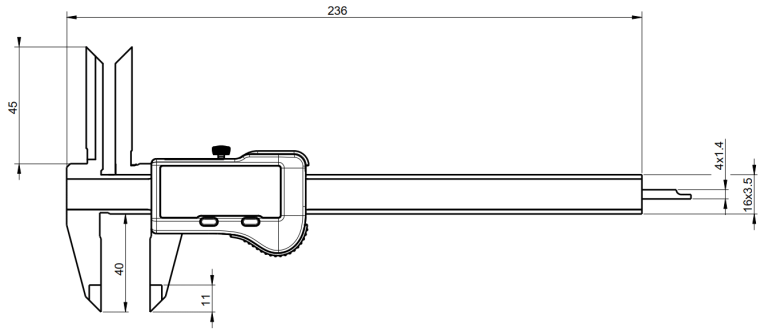

technical-drawing-caliper-s-cal-evo-smart-deep-measurement
 810-1603
EAN7640125687095
Measuring range (mm)150
Max. Error G – external measurements EMPE (µm)20 ¹
Max. Error – internal measurements SMPE (µm)20-30 ²
Depth rod (mm)▬ 4 x 1.4
Protection rating according to IEC 60529IP67
Output dataBluetooth® wireless technology
FunctionsZero setting, Preset (max 999.99), mm/inch, Hold
Smart Inductive System (SIS)
