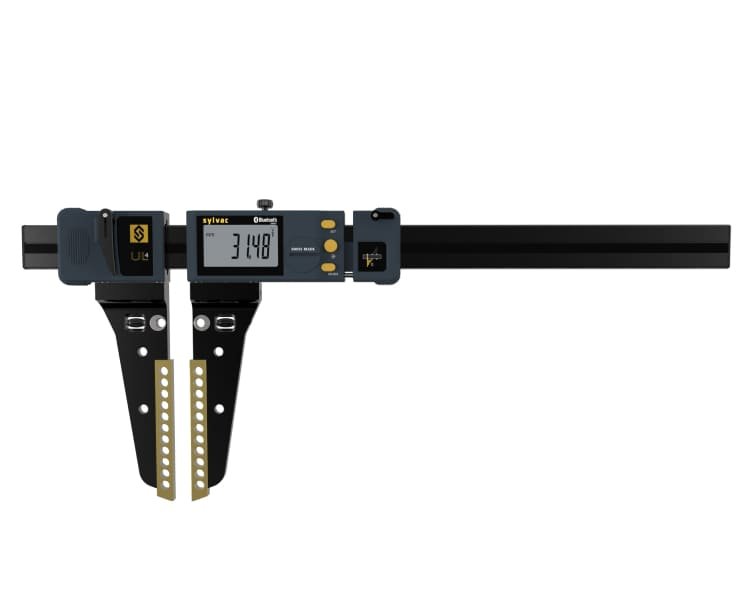

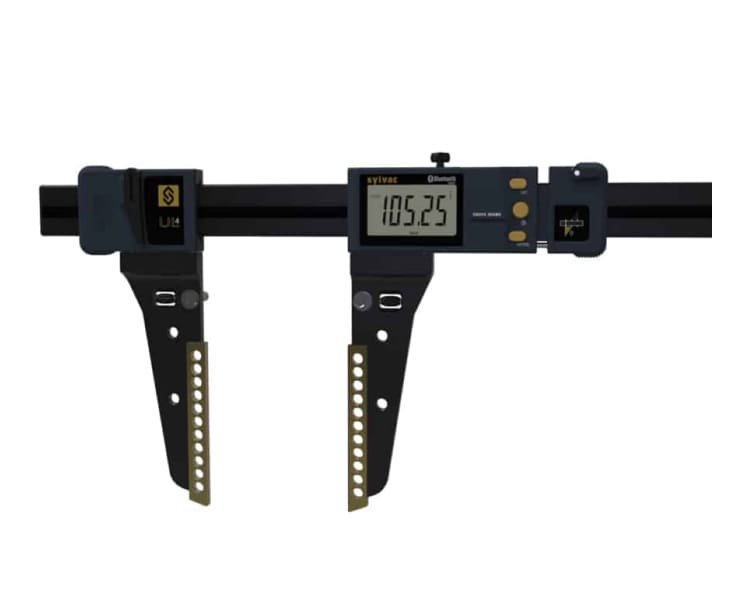

Ultra Light Caliper UL4 Sylvac

The Sylvac Ultra Light Caliper UL4 boasts an impressive measuring range of 400 to 3000 mm, combined with unmatched portability. Crafted with a special aluminum frame reinforced with stainless steel guide rods, it ensures durability and stability. Equipped with Bluetooth® Smart for seamless data transmission and featuring an XXL display unit for excellent readability, it offers enhanced productivity and user-friendly operation.

8 people are viewing this product right now

🔥 12 items sold in last 3 hours

Categories: Calipers, Hand Tools, Measurement

Estimated delivery:May 27, 2026 - May 29, 2026

Description

Ultra Light Caliper UL4 Sylvac

The Sylvac Ultra Light Caliper UL4 offers a measuring range of 400 to 3000 mm and exceptional portability. Its durable design features a special aluminum frame reinforced with stainless steel guide rods.

Features

Unprecedented Size, Unmatched Portability

Our large calipers offer impressive measuring ranges from 400 to 3000 mm, making them perfect for accurately measuring large dimensions.

Seamless Data Aquisition

Integrated Bluetooth® Smart data transmission, allowing you to transmit measurements wirelessly, for enhanced productivity. Also features a Proximity data output.

Built to last

Crafted with a frame made of special aluminum profile reinforced with 4 stainless steel guide rods, our IP67 callipers are built to withstand the demands of rigorous use while maintaining stability and accuracy.

User-Friendly Design

The XXL display unit, with digits 20 mm high, offers excellent readability. With three buttons, including a central button with a selectable favorite function, operating this light calliper becomes effortless.

Controlled force

To ensure accurate and consistent measurements, our calipers are equipped with an integrated force control device. This feature allows the operator to verify and apply the same force to all measurements.

Overview

	811-1404	811-1406	811-1410	811-1415
EAN	7640125713190	7640125713206	7640125697759	7640125713213
Model (mm)	400	600	1000	1500
Max. Error (µm)	30	40	50	90
Repeatability (µm)	20
Resolution (mm)	0.01
A (mm)	0-478	0-683	0-1093	0-1608
B (mm)	796	1001	1411	1926
C (mm)	27-505	27-710	27-1110	27-1635
Measuring Force (N)	7.5 – 11.5 (±20%)
Output data	Bluetooth® wireless technology / RS232 / USB
IP67 Protection	●
Preset max.	±9999.99 mm / ±399.9995 IN
Weight (kg)	1.5	1.6	1.9	2.3
Setting by PC	●
2 references	●
Min/Max function	●
Tolerance limit indicators	●

	811-1420	811-1425	811-1430
EAN	7640125697766	7640125697773	7640125697780
Model (mm)	2000	2500	3000
Max. Error (µm)	120	150	200
Repeatability (µm)	30
Resolution (mm)	0.01
A (mm)	0-2123	0-2638	0-3153
B (mm)	2441	2956	3471
C (mm)	27-2150	27-2665	27-3180
Measuring Force (N)	7.5 – 11.5 (±20%)
Output data	Bluetooth® wireless technology / RS232 / USB
IP67 Protection	●
Preset max.	±9999.99 mm / ±399.9995 IN
Weight (kg)	2.6	2.9	3.3
Setting by PC	●
2 references	●
Min/Max function	●
Tolerance limit indicators	●
