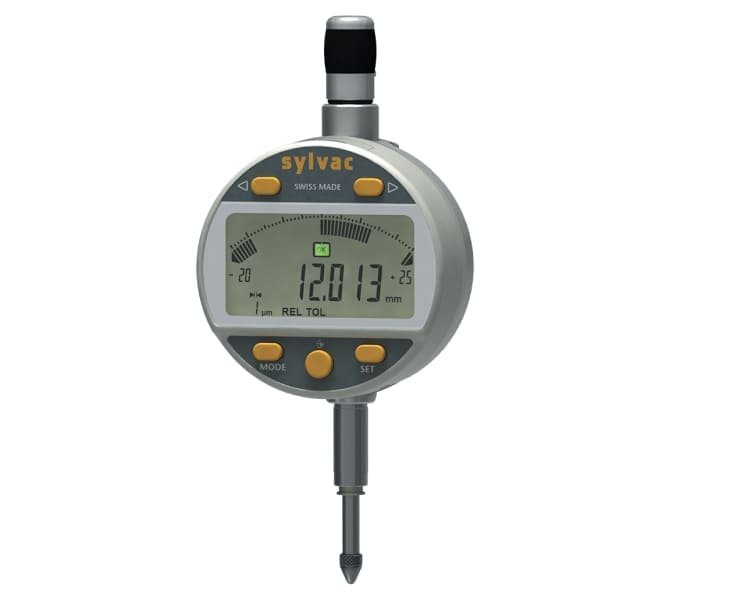

Digital Indicator S_DIAL Work Analog & Analog Smart Sylvac
The Sylvac Digital Indicator S_DIAL Work Analog & Analog Smart combines adaptive analog display with digital precision, offering resolutions of up to 0.2 μm per segment and 0.001 mm respectively. Robust construction, intelligent efficiency, advanced connectivity, and versatile measuring ranges ensure precise readings across various applications.
8 people are viewing this product right now
🔥 6 items sold in last 3 hours
Digital Indicator S_DIAL Work Analog & Analog Smart Sylvac
The Sylvac Digital Indicator S_DIAL Work Analog & Analog Smart blends an adaptive analog display with digital precision, achieving resolutions up to 0.2 μm per segment and 0.001 mm.
Features
Overview
| 805-5307 | 805-5507 | 805-6308 | |
| EAN | 7640125697506 | 7640125697537 | 7640125698923 |
| Measuring range (mm) | 12.5 | 25 | 12.5 |
| Resolution (mm) | 0.001 | ||
| Max. Error fe (µm) | 3 | 4 | 3 |
| Repeatability (µm) | 2 | ||
| IP rating | IP54 | ||

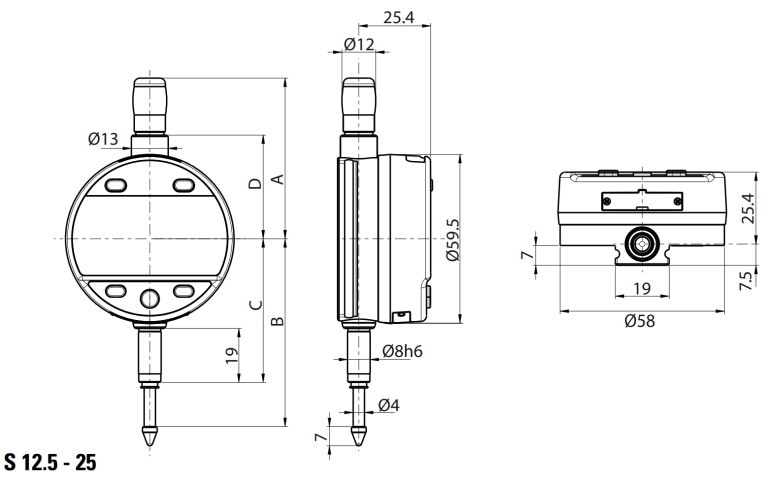

| A (mm) | 56.7 | 69.4 | 56.7 |
| B (mm) | 66.1 | 78.5 | 66.1 |
| C (mm) | 50.5 | ||
| D (mm) | 36.6 | 49.4 | 36.6 |
| Output data | USB / RS232 | Bluetooth® / USB / RS232 | |
| Programmable by PC | ⬤ | ||
| Standard functions (customized by PC) | mm/inch, preset (max 999.999) min/max/delta, tolerances, resolution, direction of measurement, multiplication factor, automatic or manual switch off, key lock | ||
| Measuring Force | S 12.5 | S 25 |
| Standard (N) | 0.65 – 0.90 | 0.65 – 1.15 |
| Low ¹ (N) | 0.4 – 0.55 | 0.45 – 0.9 |
| High ¹ (N) | 1.0 – 1.6 | 0.9 – 1.8 |
