The DY-410VS~510VS variable speed lathe combines precision engineering with robust construction. With spindle speed ranges tailored for different workloads, extensive threading capability (inch, metric, DP, and module pitches), and high rigidity, it is suitable for diverse machining tasks. Its motor power and wide swing capacity provide both strength and accuracy.

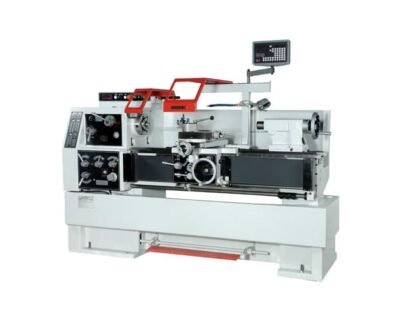

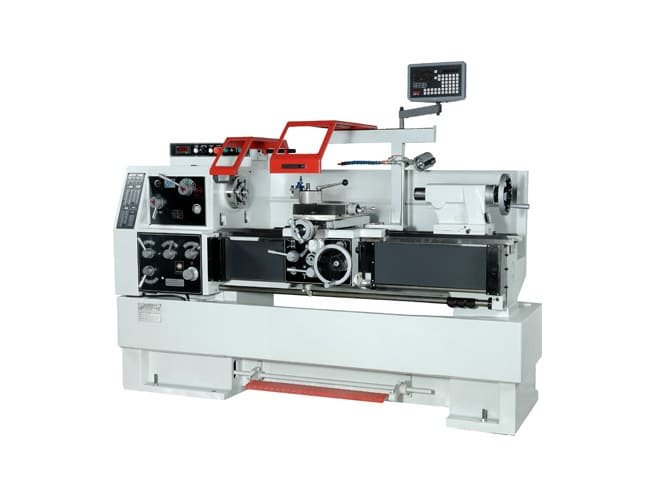

Annn Yang Variable Speed Lathe DY-410VS~510VS

Designed for productivity and precision, the ANNN YANG DY-410VS~510VS gives operators full control over machining. From fine threading to heavy cutting, its variable speed system adapts easily to different materials and tasks. Strong build quality, reliable performance, and future-ready design make it a dependable solution for modern manufacturing.

Features

Variable Speed Spindle

Multiple speed ranges (low, medium, high) allow flexibility for both light and heavy machining.

Wide Threading Capability

Supports inch, metric, DP, and module threads, making it versatile for global applications.

Rigid Construction

Strong bed and headstock ensure stability and accuracy under heavy workloads.

High Power Motor

Equipped with powerful main motor (up to 12.5 HP) for efficient heavy-duty cutting.

Precision Tailstock

Large quill diameter and MT taper provide support for accurate, long workpieces.

Overview

Category	Specification	Unit	DY-410VS	DY-510VS
SWING	Distance Between Centers	mm	1000 / 1500	1100 / 1600 / 2100 / 3100
	Swing Over Bed	mm	410	510
	Swing Over Cross Slide	mm	230	320
	Swing Over Gap	mm	640	760
	Height of Center (Over Bed)	mm	205	255
BED	Width	mm	305	330
HEADSTOCK	Spindle Nose & Bore	–	D1-6, Ø54	D1-8, Ø80 / 102 (OPT.)
	Spindle Speed – Low	rpm	25 ~ 350	15 ~ 300 / 50 ~ 220
	Spindle Speed – Medium	rpm	70 ~ 1000	50 ~ 650 / 120 ~ 650
	Spindle Speed – High	rpm	180 ~ 2700	140 ~ 2500 / 220 ~ 1800
FEEDS – THREAD	Leadscrew	–	Ø35 mm, 4TPI or 6 pitch	Ø35 mm, 4TPI or 6 pitch
	Number of Feed Changes	–	32	32
	Longitudinal Feed Range	mm/rev	0.04 ~ 1.0	0.04 ~ 1.0
	Cross Feed Range	mm/rev	0.02 ~ 0.5	0.02 ~ 0.5
	Inch Threads	kinds	45 (2 ~ 72 TPI)	45 (2 ~ 72 TPI)
	Metric Threads	kinds	41 (P0.2 ~ 14)	41 (P0.2 ~ 14)
	D.P. Threads	kinds	21 (DP 8 ~ 44)	21 (DP 8 ~ 44)
	Module Pitches	kinds	18 (M0.3 ~ 3.5)	18 (M0.3 ~ 3.5)
TOOL SLIDE	Cross Slide Travel	mm	240	260
	Compound Rest Travel	mm	95	127
TAILSTOCK	Quill Travel	mm	120	120
	Quill Diameter	mm	65	75
	Taper of Center	–	MT#4	MT#5
MOTOR	Main Motor	HP	7.5 / 10 (OPT.)	10 / 12.5 (OPT.)
	Coolant Pump	HP	1/8	1/8
DIMENSIONS	Length	mm	2400 / 2900	2470 / 2970 / 3470
	Width	mm	1100	1100
	Height	mm	1800	1880
	Net Weight	kg	1700 / 2000	2000 / 2300 / 2800 / 3600
