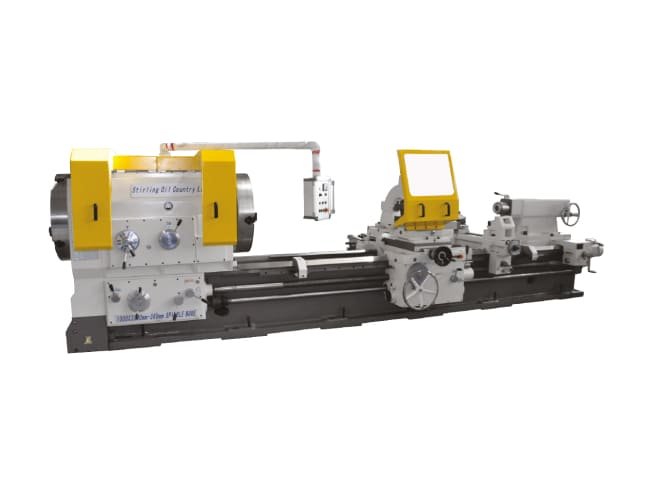

Chester Lathe Machine Stirling Oil Country Series

Chester Lathe Machine Stirling Oil Country Series

The Chester Stirling Oil Country (OC) Series heavy‐duty lathes are designed for large spindle bore, substantial swing, and extreme centre-to-centre distances up to 18 metres. With robust A2-20 spindle nose, hardened guideways, and powerful main motors (25-40 HP), they deliver durability and precision for demanding pipe, valve, or casing machining in harsh environments.

38 people are viewing this product right now

🔥 8 items sold in last 3 hours

Category: Lathe Machine

Brand: Chester Estimated delivery:June 15, 2026 - June 17, 2026

Description

The OC Series includes models such as Stirling OC28, OC36, OC46 offering centre height 500-625 mm, swing over bed between 1000-1250 mm, and massive distances between centres from 1.5 to 18 metres. Spindle bores range 280-460 mm, with spindle nose A2-20, MT290/MT470 taper reduction sleeves depending on model. Speeds are low (≈ 3-315 rpm) to accommodate heavy work, supported by large cross-slide travel, huge bed widths and tailstock quills for deep support.

Chester Lathe Machine Stirling Oil Country Series

When you need to handle huge pipe sections, thick valve bodies or oil country casing, the OC Series is built for it. Massive swing, large spindle bore, long distance between centres—everything engineered to resist deflection under load. Standard accessories like steady & follow rests, coolant systems, massive tool capacity make it ready for tough jobs straight out of the cradle.

Features

Huge Spindle Bore & Big Swing

Spindle bore up to 460 mm and swing over bed up to 1250 mm allow turning of large diameter work with ample clearance.

Long Centre-to-Centre Capacity

Ability to handle long workpieces (pipe, shafts) with distances between centres up to 12-18 m depending on model.

Heavy-Duty Headstock & Hardened Bed

Wide bed widths (600-970 mm), hardened and precision ground guideways, robust cross slide travel ensure rigidity and long life under heavy cutting loads.

Low Speed Ranges for Deep Cuts

Spindle speed ranges very low, e.g. 3-315 rpm (or similar) across models, allowing high torque for large diameter turning and threading.

Comprehensive Accessory Package

Comes standard with 2 × 4-jaw independent chucks, steady & follow rests, taper turning attachment, live/dead centres, tool-box, work lamp, coolant system; optional DRO, outboard support etc.

Overview

Model	Stirling OC28	Stirling OC36	Stirling OC46
Centre Height	500 mm	500 mm	625 mm
Swing over Bed	1000 mm	1000 mm	1250 mm
Distance Between Centres	1,500-12,000 mm	1,500-16,000 mm	1,500-18,000 mm
Swing over Cross Slide	700 mm	650 mm	890 mm
Swing in Gap	1,250 mm	1,250 mm	1,500 mm
Spindle Bore	280 mm	360 mm	460 mm
Spindle Speed Range	5-315 rpm	6.3-315 rpm	3.15-315 rpm
Main Motor	18.5 kW (25 HP)	22 kW (30 HP)	30 kW (40 HP)
Bed Width	600 mm	755 mm	970 mm
Tailstock Quill Diameter / Travel	120 mm / 300 mm	160 mm / 300 mm	160 mm / 300 mm
Net Weight	6,800 kg	14,000 kg	18,000 kg
