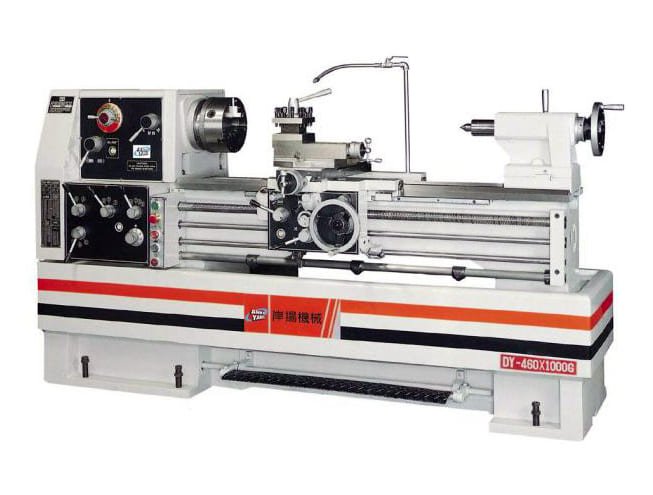

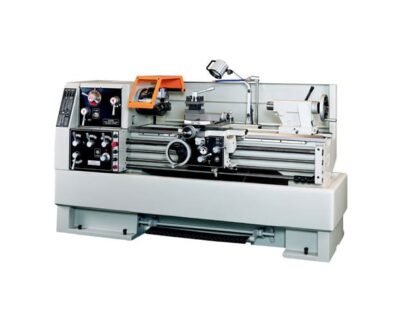

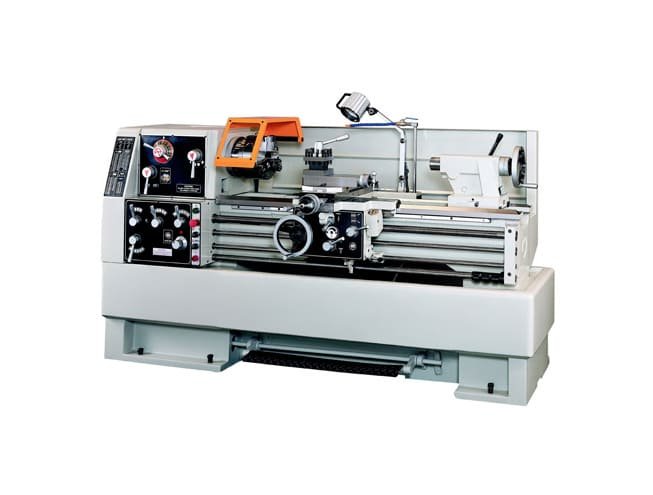

Annn Yang Conventional Lathe DY-410G ~ 510G
The Annn Yang Conventional Lathe DY‑410G ~ DY‑510G is a reliable manual lathe designed for medium‑scale metalworking and fabrication. With robust Meehanite cast bed and precision headstock gearing, it delivers smooth, stable turning and threading for routine workshop tasks.
22 people are viewing this product right now
🔥 4 items sold in last 3 hours
Built by Annn Yang, the DY‑410G and DY‑510G lathe range offers versatile manual machining with wide bed support and multiple swing capacities. Featuring durable spindle lubrication, accurate lead screw feeds, and easy operator control, it excels in turning, threading, and facing applications.
Annn Yang Conventional Lathe DY-410G ~ 510G
The DY‑410G to DY‑510G conventional lathes combine heavy‑duty construction with adjustable spindle speeds and standard coolant pump. These machines provide dependable performance for workshop and industrial use, allowing operators to make precise cuts and threads with confidence.
Features
Overview
| Category | Specification Item | Unit | DY-410G | DY-460G | DY-510G |
|---|---|---|---|---|---|
| SWING / CENTER | Distance Between Centers | mm | 1100 / 1600 / 2100 / 3100 | same | same |
| Swing Over Bed | mm | 410 | 460 | 510 | |
| Swing Over Cross Slide | mm | 230 | 270 | 320 | |
| Swing Over Gap | mm | 660 | 710 | 760 | |
| Height of Center (Over Bed) | mm | 205 | 230 | 255 | |
| BED | Bed Width | mm | 330 | 330 | 330 |
| HEADSTOCK | Spindle Nose / Bore | – | D1-6 / 54 mm | D1-6 / 63 mm | D1-8 / 80 mm (102 mm optional) |
| Spindle Speed (rpm) | rpm | ~36-2000 | same | ~36-1500 (for larger bore / nose) | |
| FEEDS & THREADS | Leadscrew | – | Ø35 mm, 4 TPI or 6 pitch | same | same |
| Number of Feed Changes | – | 32 | 32 | 32 | |
| Longitudinal Feed Range | mm/rev | 0.04-1.0 | same | same | |
| Cross Feed Range | mm/rev | 0.02-0.5 (with rapid) / 0.04-1.0 (without) | same | same | |
| Inch Threads | kinds | 37 (2-56 TPI) | same | same | |
| Metric Threads | kinds | 41 (P0.2-14) | same | same | |
| D.P. Threads | kinds | 19 (D.P. 8-44) | same | same | |
| Module Pitches | kinds | 18 (M0.3-3.5) | same | same | |
| TOOL SLIDE | Cross Slide Travel | mm | 240 | 240 | 260 |
| Compound Rest Travel | mm | 95 | 95 | 127 | |
| TAILSTOCK | Quill Travel | mm | 120 | 120 | 130 |
| Quill Diameter | mm | 65 | 65 | 75 | |
| Taper of Center | – | MT#4 | MT#4 | MT#5 | |
| MOTOR / COOLANT | Main Motor | HP | 5 / 7.5 / 10 (optional) | same | same |
| Coolant Pump | HP | 1/8 | same | same | |
| DIMENSIONS & WEIGHT | Packing Size (L×W×H) | mm | varies with centers e.g. 2370×1100×1700 etc. | similarly larger | similarly larger |
| Net Weight / Gross Weight | kg | e.g. ~2000 / 2150 | ~2800 / ~3000 | ~3600 / ~3850 |
