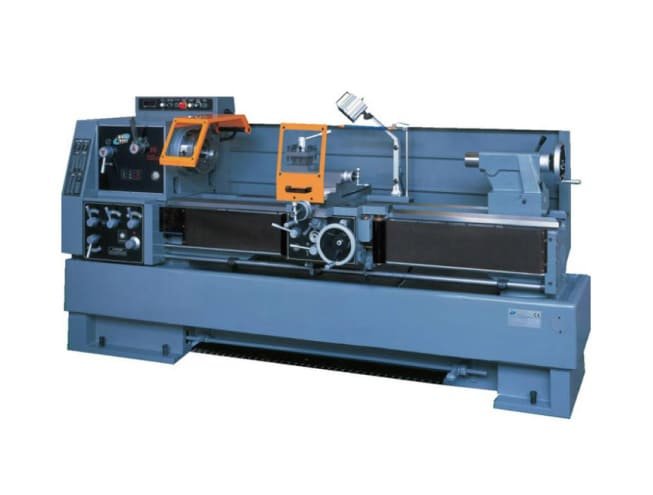

Chester Lathe Machine Commander Series

The Chester Commander Series lathe combines superior rigidity and precision with a spacious working envelope. With a large spindle bore, full gap capability, hardened & ground bedways, and versatile speeds (forward & reverse), it delivers reliable performance for heavy turning and long centre work. Designed for demanding shop and industrial use.

17 people are viewing this product right now

🔥 3 items sold in last 3 hours

Category: Lathe Machine

Brand: Chester Estimated delivery:June 15, 2026 - June 17, 2026

Description

The Commander Series features centre heights around 400 mm, swing over bed up to 800-1000 mm, and swing in gap allowing clearance for large workpieces. Equipped with a robust headstock, hardened & ground bedways, a large spindle bore (100-103 mm), and power feeds for both longitudinal and cross axes. Accessories include chucks, steady rests, tailstock quill, coolant systems, and optional DRO. Built for high strength, accuracy, and durability.

Chester Lathe Machine Commander Series

When precision meets power, the Commander Series stands out. Tackle large diameters, long shafts, or thick materials with confidence thanks to its vast swing, tough spindle bore, full gap front, and hardened bed—every component built to resist deflection. With forward/reverse speeds and ease of operation, it’s made for pro shops that demand heavy turning performance without compromise.

Features

Large Spindle Bore (Ø100-103 mm)

Allows bulky tooling and turning through large workpiece cores; increases versatility for heavy duty jobs.

Hardened & Ground Bedways

Provides rigidity, low wear, stable accuracy under load for long-term precision.

Full Gap Capability with Large Swing

Front gap allows large diameter workpieces without obstruction; swing over bed ~800-1000 mm gives wide clearance.

Forward & Reverse Speed Ranges + Power Feeds

Multiple speed options (forward & reverse) and powered longitudinal/cross feed to improve surface finish and productivity.

Comprehensive Accessories & Optional Upgrades

Includes steady/follow rests, chucks, tailstock with big quill, coolant, optional digital readout/DRO, enhancing usability.

Overview

Specification Item	Typical Value / Detail
Centre Height	400 mm
Swing over Bed	800-1000 mm
Swing in Gap	Large (1000 mm)
Spindle Bore	100-103 mm
Speed Ranges	Multiple forward & reverse gears / motor speeds
Power Feeds	Longitudinal & cross feed powered
Bed Width	Substantial — wide, to support stability under load
Tailstock Quill Diameter & Travel	Large quill (90 mm) with decent travel
Main Motor Power	High HP / kW appropriate for heavy cutting (model-dependent)
Accessories	Chucks (3-jaw/4-jaw), steady and follow rests, coolant system, optional DRO/monitoring

Caliper S_CAL Evo Basic Sylvac

The Sylvac S_CAL EVO BASIC caliper combines robust construction with smart design,
featuring a 3.5 mm thick stainless steel frame and IP67 rating for durability.

Features

Versatile Options

Ergonomic caliper available in different measuring ranges of 150mm, 200mm, and 300mm,

Built to Last

Crafted with a mechanical frame in 3.5 mm thick hardened and ground stainless steel, our IP67 caliper ensures durability and longevity.

Enhanced Efficiency

Maximize productivity with a swift maximum speed of displacement of 2.5m/sec,

User-Friendly Design

Experience effortless measurement reading with the new extra-large display unit

Intelligent Power Management

enefit from the automatic wake-up feature (Absolute System S.I.S) when moving the electronic on its frame and enjoy the energy-saving sleeping mode (Absolute System S.I.S) after 20 minutes of inactivity.
