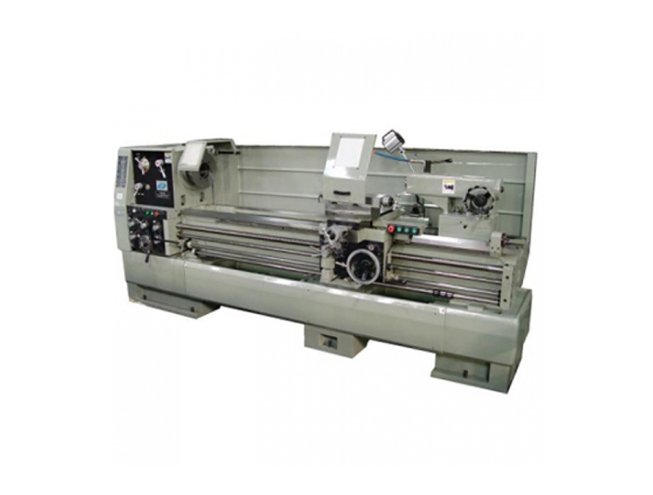

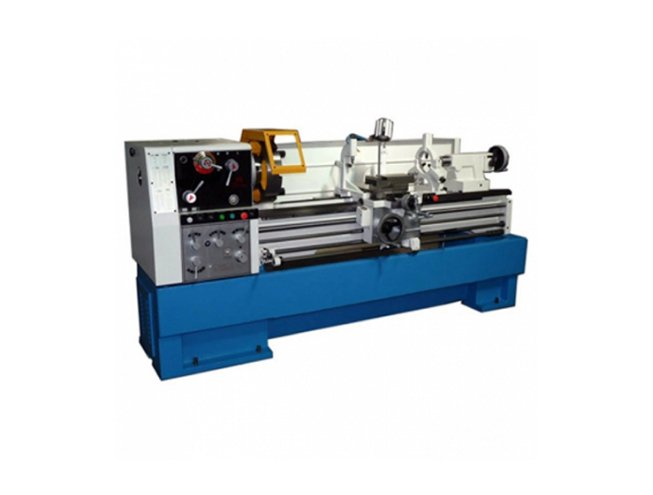

Annn Yang Clutch Lathe DY-460M~510M
Annn Yang Clutch Lathe DY-460M~510M is a heavy‑duty manual lathe engineered for precise turning and threading of complex workpieces. Its rugged construction and smooth clutch drive allow manual control with high rigidity and cutting stability, ideal for metalworking shops requiring reliable performance and long‑lasting service life.
48 people are viewing this product right now
🔥 3 items sold in last 3 hours
Designed for demanding fabrication tasks, this clutch lathe offers robust headstock gearing, precision bearings, and a wide bed for stable operations. With selectable distances between centers and versatile speed and feed options, it supports a range of turning, facing, and threading applications with consistent accuracy.
Annn Yang Clutch Lathe DY-460M~510M
The DY‑460M~510M lathe combines traditional manual control with durable mechanical design. Adjustable spindle speeds and feeds, comprehensive thread options (inch/metric), and optional larger spindle bore make it suitable for various industrial machining jobs, delivering precision and reliability at every setup.
Features
Overview
| Kategori | Spesifikasi | DY‑460M | DY‑510M |
|---|---|---|---|
| SWING & BED | Jarak Antar Center | 1100 / 1600 / 2100 / 3100 mm | 1100 / 1600 / 2100 / 3100 mm |
| Swing Over Bed | 460 mm | 510 mm | |
| Swing Over Cross Slide | 270 mm | 320 mm | |
| Swing Over Gap | 710 mm | 760 mm | |
| Tinggi Center (Over Bed) | 230 mm | 255 mm | |
| Lebar Bed | 330 mm | 330 mm | |
| HEADSTOCK | Spindle Nose | D1-8 | D1-8 |
| Lubang Spindle | 80 mm | 80 mm / 102 mm (Opsional) | |
| Kecepatan Spindle (rpm) | 36 ~ 1500 rpm | 36 ~ 1500 rpm | |
| Jumlah Kecepatan Spindle | 12 perubahan | 12 perubahan | |
| FEEDS & THREADS | Leadscrew | Ø35 mm, 4 T.P.I. atau 6 pitch | Ø35 mm, 4 T.P.I. atau 6 pitch |
| Jumlah Perubahan Feed | 32 | 32 | |
| Longitudinal Feed | 0,04 ~ 1,0 mm/rev | 0,04 ~ 1,0 mm/rev | |
| Cross Feed | 0,02–0,5 mm/rev (dengan rapid traverse) / 0,04–1,0 mm/rev (tanpa rapid traverse) | Sama | |
| Inch Threads | 37 jenis, 2 ~ 56 T.P.I | 37 jenis, 2 ~ 56 T.P.I | |
| Metric Threads | 41 jenis, P0,2 ~ 14 | 41 jenis, P0,2 ~ 14 | |
| D.P No. / Rentang | 19 jenis, D.P 8 ~ 44 | 19 jenis, D.P 8 ~ 44 | |
| Module Pitches No. / Rentang | 18 jenis, M 0,3 ~ 3,5 | 18 jenis, M 0,3 ~ 3,5 | |
| TOOL SLIDE | Cross Slide Travel | 260 mm | 260 mm |
| Compound Rest Travel | 127 mm | 127 mm | |

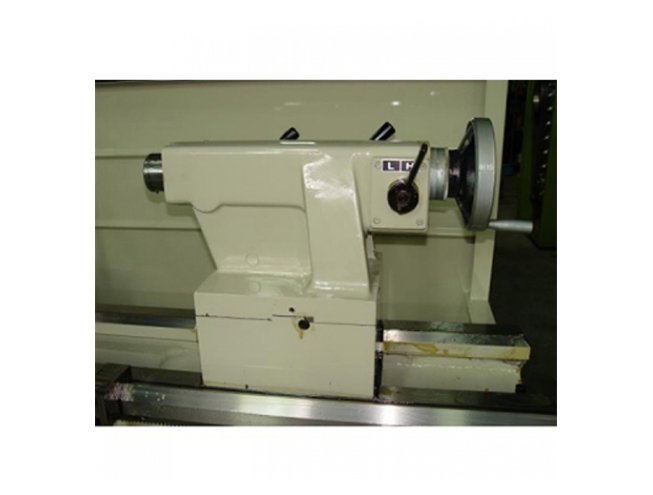

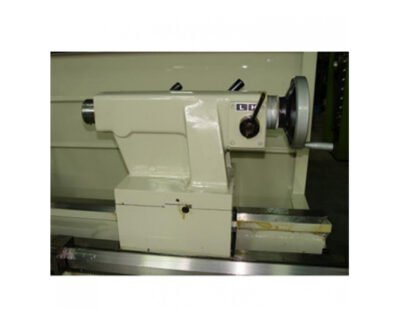

| TAILSTOCK | Quill Travel | 130 mm | 130 mm |
| Diameter Quill | 75 mm | 75 mm | |
| Taper Center | MT#5 | MT#5 | |
| MOTOR | Motor Utama | 10 HP / 12,5 HP (Opsional) | 10 HP / 12,5 HP (Opsional) |
| Pompa Pendingin | 1/8 HP | 1/8 HP | |
| UKURAN PACKING (P x L x T mm) | 1100 mm | 2370 x 1100 x 1750 | 2370 x 1100 x 1800 |
| 1600 mm | 2880 x 1100 x 1750 | 2880 x 1100 x 1800 | |
| 2100 mm | 3400 x 1100 x 1750 | 3400 x 1100 x 1800 | |
| 3100 mm | 4410 x 1100 x 1750 | 4410 x 1100 x 1800 | |
| BERAT (N.W / G.W perkiraan) | 1100–3100 mm | 2000–3600 / 2150–3850 kg | 2300–3600 / 2450–3850 kg |
| KAPASITAS BENDA KERJA (Spindle Bore 80 mm) | Chuck saja | 300 kg | 300 kg |
| Chuck + Tailstock | 800 kg | 800 kg | |
| Chuck + 1 Steady rest + Tailstock | 1000 kg | 1000 kg | |
| Chuck + 2 Steady rest + Tailstock | 1500 kg | 1500 kg | |
| KAPASITAS BENDA KERJA (Spindle Bore 102 mm, Opsional DY‑510M) | Chuck saja | – | 400 kg |
| Chuck + Tailstock | – | 900 kg | |
| Chuck + 1 Steady rest + Tailstock | – | 1100 kg | |
| Chuck + 2 Steady rest + Tailstock | – | 1600 kg |
