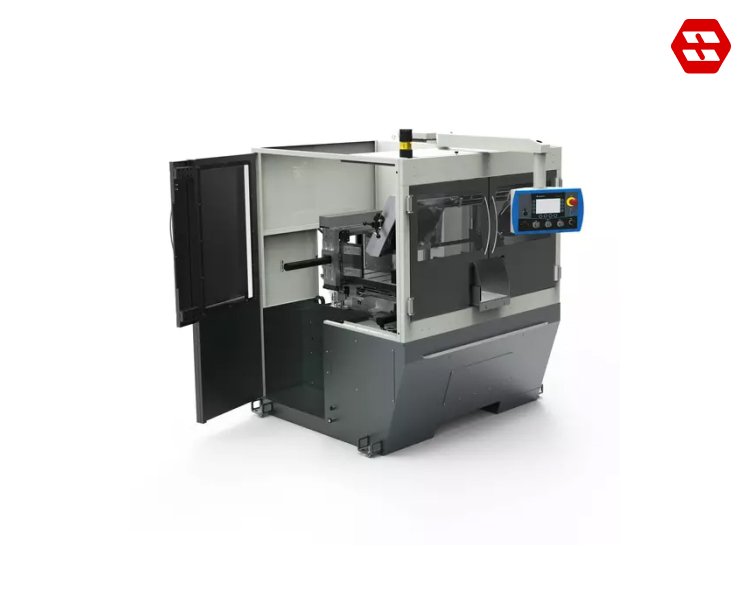

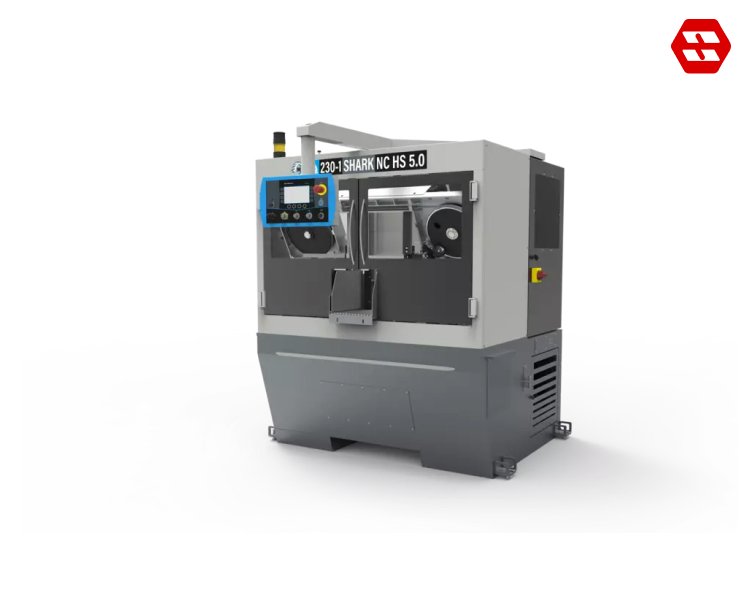

Automatic Bandsaw Machine SHARK 230-1 NC HS 5.0 MEP
The MEP SHARK 230-1 NC HS 5.0 is an electrohydraulic automatic dual-column bandsaw designed for precise 0° cuts on structural, stainless, and alloy steels, solids, and profiles. It features a Windows-based CNC controller with touch screen, automatic alignment, and variable blade speed for efficient production cutting.
44 people are viewing this product right now
🔥 11 items sold in last 3 hours
The SHARK 230-1 NC HS 5.0 industrial bandsaw machine delivers high-productivity metal cutting with semi-automatic and fully automatic cycles, programmable cutting jobs, and a compact footprint. Its hydraulic feed system and reinforced cast iron structure reduce vibration and improve cut quality in varied applications.
Automatic Bandsaw Machine SHARK 230-1 NC HS 5.0 MEP
MEP’s SHARK 230-1 NC HS 5.0 combines rugged dual-column design with advanced NC control, 7″ touch interface, and infinitely adjustable blade speed from 15 to 100 m/min. With automatic feed and alignment features, it supports repeated precision sawing in engineering and fabrication shops.
Features
Overview
| Specification | Details |
|---|---|
| Cutting Capacity (0°) | Up to Ø 230 mm round; 230 × 230 mm profiles. |
| Maximum Vice Opening | 235 mm (varies by configuration). |
| Minimum Cutting Length | 10 mm. |
| Blade Size | 2950 × 27 × 0.9 mm. |
| Blade Speed Range | 15 – 100 m/min (variable). |
| Motor Power | 2.2 kW three-phase. |
| Controller | MEP 50 Windows-based CNC with 7″ touch screen. |
| Operation Modes | Automatic and semi-automatic. |

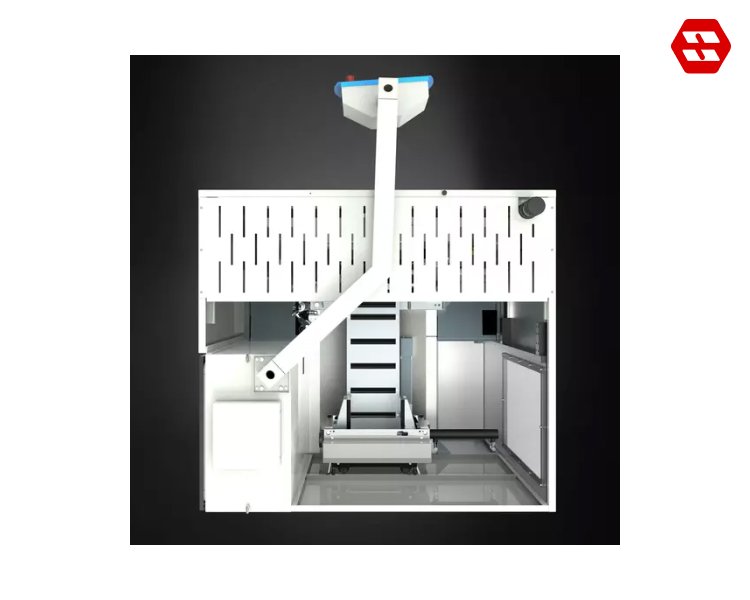

| Machine Footprint | 2.5 m² compact layout. |
| Safety Compliance | Guarding per EN13898/2007. |
| Approx. Weight | 1175 kg (varies by configuration). |
