Bandsaw Machine HBE860A Performance BEHRINGER
Price range: Rp15 through Rp20
Mesin yang dirancang untuk pemotongan presisi dengan fitur-fitur canggih. Dengan konstruksi kokoh dan kemampuan performa tinggi, alat berat ini memberikan hasil pemotongan yang konsisten dan berkualitas tinggi yang cocok untuk berbagai industri. Efisiensinya menjadikannya ideal untuk memotong berbagai bahan dengan akurat. Mesin ini cocok untuk lingkungan manufaktur yang bertujuan untuk mengoptimalkan produktivitas secara konsisten.
33 people are viewing this product right now
🔥 3 items sold in last 3 hours
HBE860A Performance

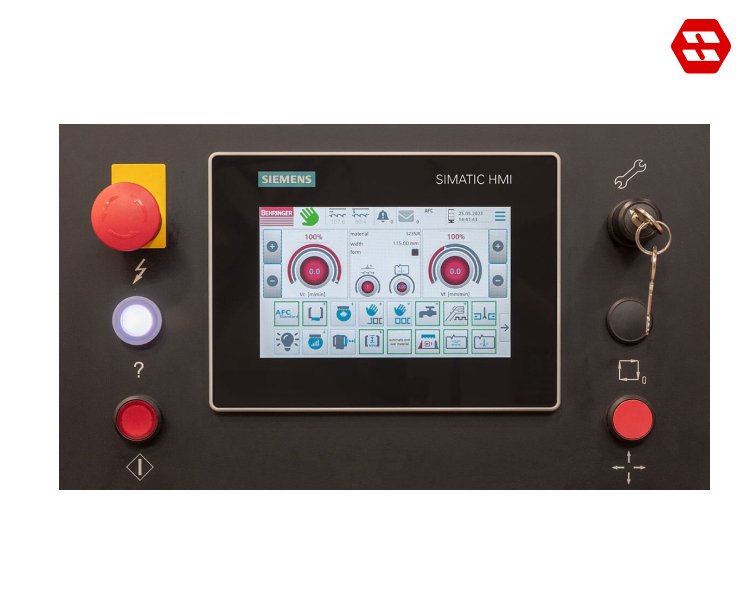

Intuitive BehrCtrl10 Touch Control

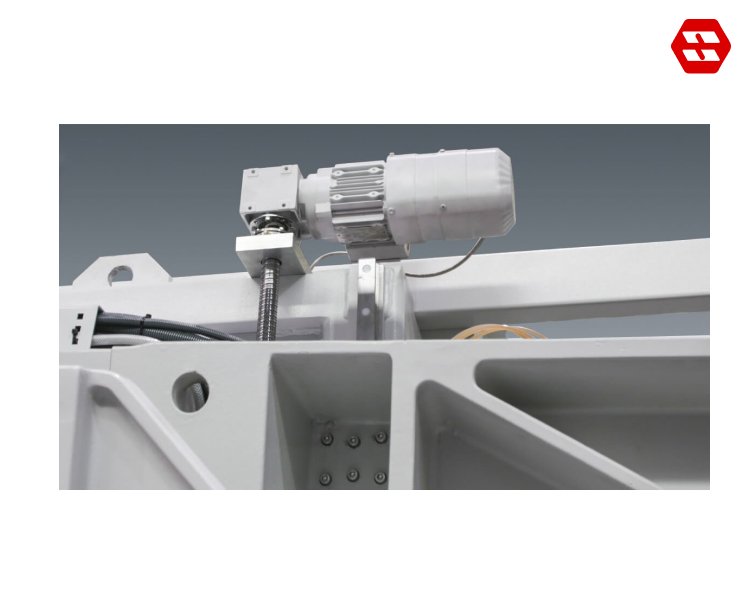

Servo-Downfeed With Cutting Pressure Control

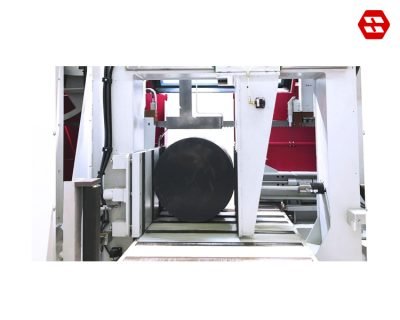

Massive Feed Gripper With Ball Screw

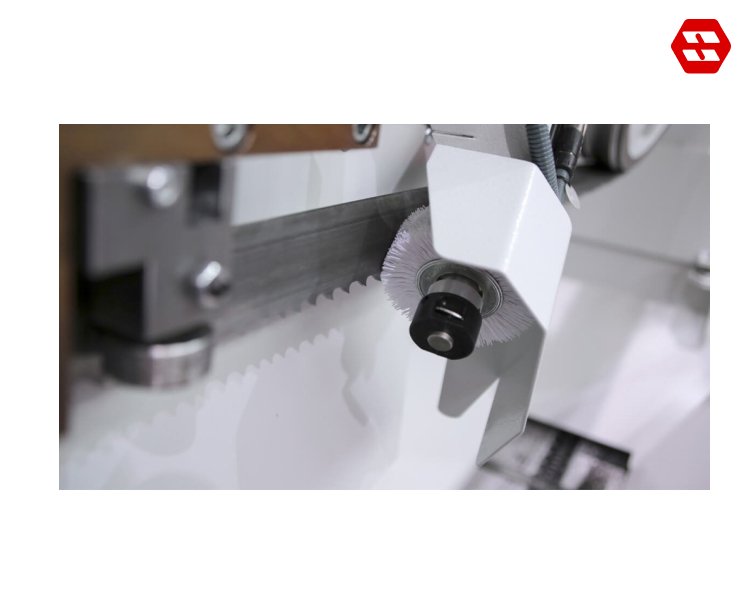

Electrically Driven Chip Brush
Features of The Production Bandsaw
HBE860A Performance
Technical Data Production Bandsaw HBE860A Performance
| Cutting Range | |
| Cutting range 90° round | 860 mm |
| Cutting range 90° flat | 860 x 860 mm |
| Smallest dimension to be sawn round | 20 mm |
| Smallest dimension to be sawn flat | 20 x 20 mm |
| Performance Characteristics | |
| Feeding length single stroke | 500 mm |
| Drive power | 5.5 kW |
| Blade speed | 10 – 110 m/min |
| Saw blade dimensions | 9,875 x 54 (67) x 1.6 mm |
| Rest piece length in automatic operation | 55 mm |
| Total power | 12 kW |
| Saw feed | servo-feed via ball screw |
| Material feed | ball screw |
| Material clamping | hydraulic |
| Saw blade cleaning | electrically driven chip brush |
| Dimensions and Weight | |
| Length | 2,525 mm |
| Width | 4,800 mm |
| Height | 3,550 mm |
| Weight | 9,000 kg |
| Material support height | 800 mm |
