Bandsaw Machine HBM540ALU Performance Automatic BEHRINGER

Price range: Rp15 through Rp20

Mesin ini dirancang khusus untuk memotong aluminium dan material non-besi lainnya dengan presisi. Dengan fitur otomatisasi canggih, alat berat ini meningkatkan efisiensi pemotongan dan memastikan hasil yang konsisten dan berkualitas tinggi. Desainnya yang kokoh dan kemampuan khusus menjadikannya cocok untuk industri yang memerlukan pemotongan presisi pada logam non-besi.

41 people are viewing this product right now

🔥 12 items sold in last 3 hours

or
Save to wishlist
Save to compare
SKU: N/A
Categories: , ,
Estimated delivery:May 27, 2026 - May 29, 2026

HBM540ALU Performance Automatic

Aluminium bandsaw HBM540ALU

HBM High Performance Aluminium Sawing Unit

HBM high performance aluminium sawing unit 1

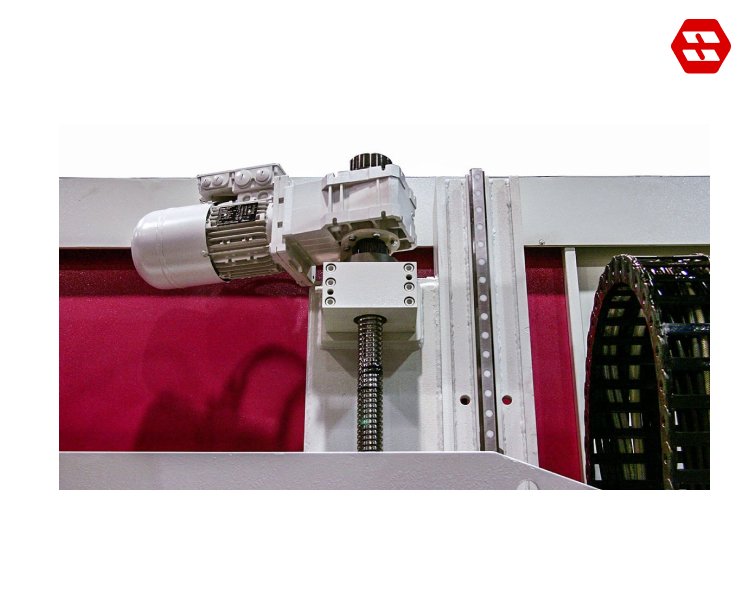

Servo Feed System For Short Non-Productive Times

Servo feed system for short non-productive times 1

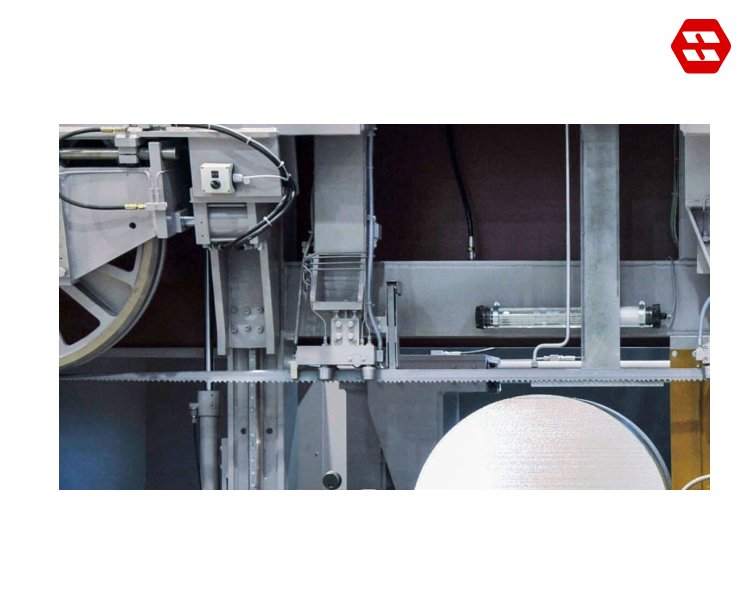

Roller Band Guides With Integrated Spray Lubrication

Roller band guides with integrated spray lubrication 1

Features of The Production Bandsaw HBM540ALU

Technical Data Production Bandsaw HBM540ALU

Cutting Range
Cutting range 90° round540 mm
Cutting range 90° flat630 x 540 mm
Smallest dimension to be sawn round20 mm
Smallest dimension to be sawn flat20 x 15 mm
Performance Characteristics
Feeding length single stroke500 mm
Drive power22 kW
Blade speed300 – 1,300 m/min
Saw blade dimensions7,500 x 34 x 1.1 mm
Rest piece length in automatic operation50 mm
Total power29 kW
Saw feedservo-feed via ball screw
Material feedball screw
Material clampinghydraulic
Saw blade cleaningelectrically driven chip brush
Dimensions and Weight
Length2,650 mm
Width4,385 mm
Height2,700 mm
Weight5.200 kg
Material support height800 mm
