Production band saw HBM540A
HBM band guide with high-performance cooling 1
Duplex chip brush 1
Cast iron band guiding parts 5
High-performance sawing unit with BEHRINGER Speed-Cutting technology
  • Production band saw HBM540A
  • HBM band guide with high-performance cooling 1
  • Duplex chip brush 1
  • Cast iron band guiding parts 5
  • High-performance sawing unit with BEHRINGER Speed-Cutting technology

Bandsaw Machine HBM540A Performance Automatic BEHRINGER

Price range: Rp15 through Rp20

Mesin ini dirancang untuk pemotongan presisi dengan fitur otomatisasi canggih. Mesin ini memudahkan proses pemotongan untuk hasil yang konsisten dan berkualitas tinggi, sehingga meningkatkan efisiensi dalam industri. Konstruksinya yang kokoh dan kemampuan kinerja tinggi membuatnya cocok untuk berbagai pemotongan pada material. Mesin ini cocok untuk lingkungan manufaktur yang bertujuan untuk mengoptimalkan produktivitas.

35 people are viewing this product right now

🔥 4 items sold in last 3 hours

or
Save to wishlist
Save to compare
SKU: N/A
Categories: , ,
Estimated delivery:May 27, 2026 - May 29, 2026

HBM540A Performance Automatic

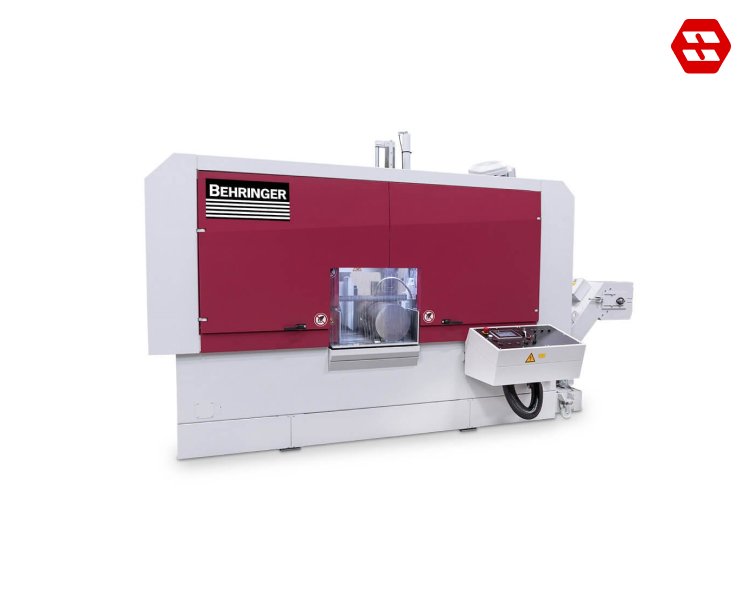

Production band saw HBM540A

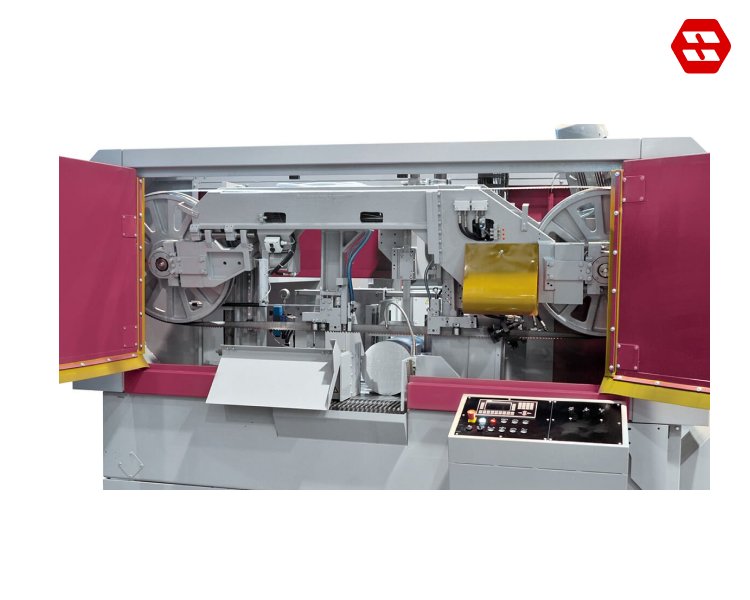

High-Performance Sawing Unit With BEHRINGER Speed-Cutting Technology

High-performance sawing unit with BEHRINGER Speed-Cutting technology

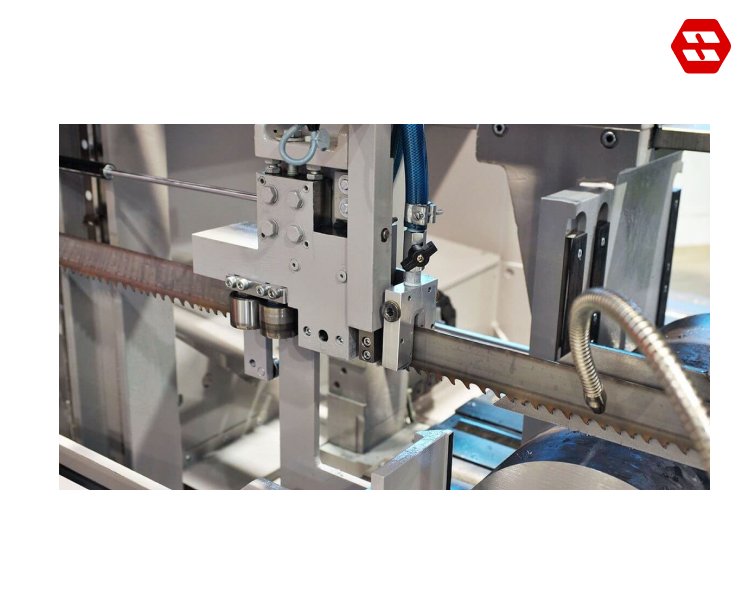

HBM Band Guide With High-Performance Cooling

HBM band guide with high-performance cooling 1

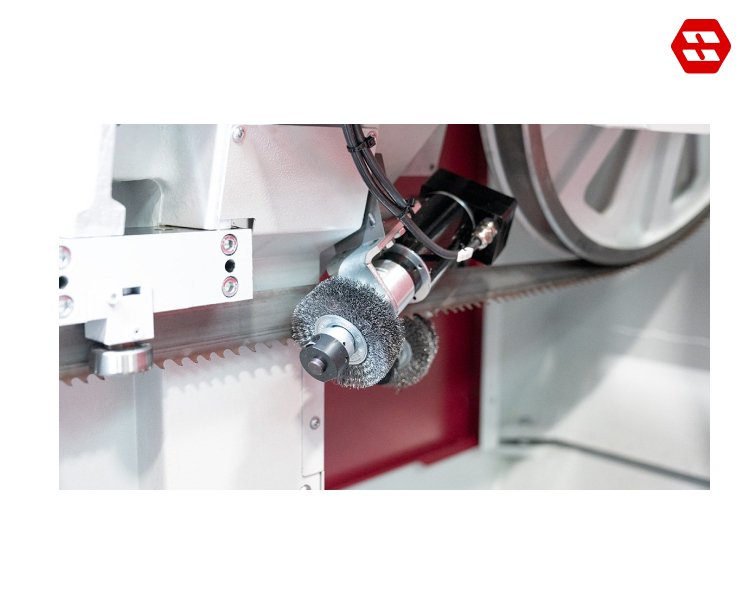

Duplex Chip Brush

Duplex chip brush 1

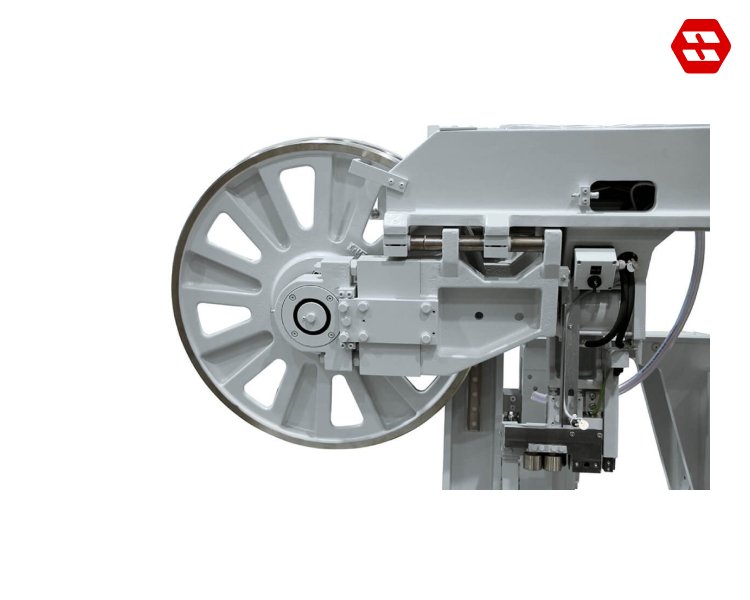

Cast Iron Band Guiding Parts

Cast iron band guiding parts 5

Features of The Production Bandsaw HBM540A

Technical Data Production Bandsaw HBM540A

Cutting Range
Cutting range 90° round540 mm
Cutting range 90° flat630 x 540 mm
Smallest dimension to be sawn round15 mm
Smallest dimension to be sawn flat12 x 12 mm
Performance Characteristics
Feeding length single stroke500 mm
Drive power7,5 kW
Blade speed13 – 130 m/min
Saw blade dimensions7,500 x 54 x 1.6 mm
Rest piece length in automatic operation40 mm
Total power12 kW
Saw feedservo-feed via ball screw
Material feedball screw
Material clampinghydraulic
Saw blade cleaningelectrically driven chip brush
Dimensions and Weight
Length2,650 mm
Width4,385 mm
Height2,700 mm
Weight5.100 kg
Material support height800 mm
