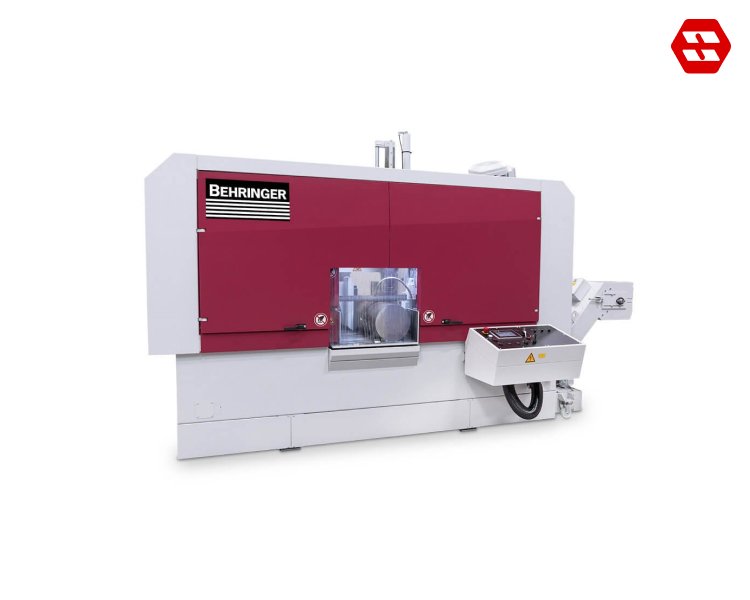

Bandsaw Machine HBM440ALU Performance Automatic BEHRINGER
Price range: Rp15 through Rp20
Mesin ini dikhususkan untuk memotong aluminium dan material non-ferrous lainnya dengan presisi dan efisiensi. Dilengkapi fitur otomatisasi canggih, mesin ini memudahkan proses pemotongan untuk hasil yang konsisten dan berkualitas tinggi. Konstruksinya yang kokoh dan desain yang disesuaikan membuatnya cocok untuk industri yang memerlukan pemotongan presisi pada aluminium dan logam non-besi.
23 people are viewing this product right now
🔥 9 items sold in last 3 hours
HBM440ALU Performance Automatic

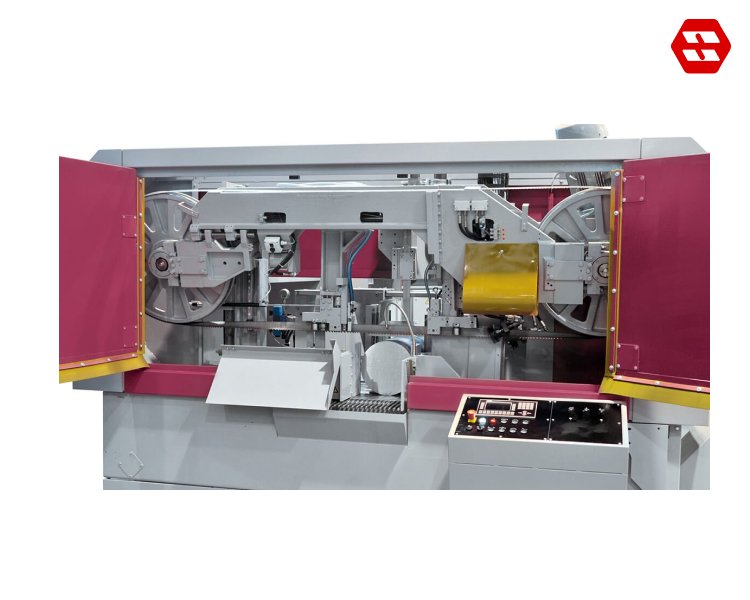

HBM High Performance Aluminium Sawing Unit

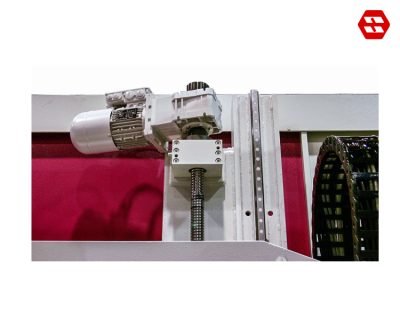

Servo Feed System For Short Non-Productive Times

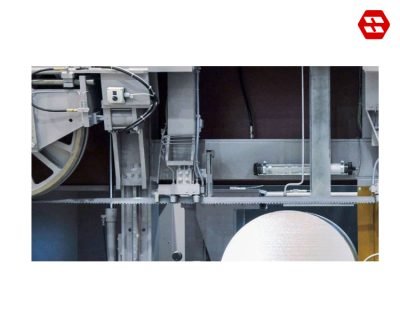

Roller Band Guides With Integrated Spray Lubrication
Features of The Production Bandsaw HBM440ALU
Technical Data Production Bandsaw HBM440ALU
| Cutting Range | |
| Cutting range 90° round | 440 mm |
| Cutting range 90° flat | 440 x 440 mm |
| Smallest dimension to be sawn round | 20 mm |
| Smallest dimension to be sawn flat | 20 x 15 mm |
| Performance Characteristics | |
| Feeding length single stroke | 600 mm |
| Drive power | 22 kW |
| Blade speed | 300 – 1,300 m/min |
| Saw blade dimensions | 7,200 x 34 x 1.1 mm |
| Rest piece length in automatic operation | 50 mm |
| Total power | 29 kW |
| Saw feed | servo-feed via ball screw |
| Material feed | ball screw |
| Material clamping | hydraulic |
| Saw blade cleaning | electrically driven chip brush |
| Dimensions and Weight | |
| Length | 2,650 mm |
| Width | 4,385 mm |
| Height | 2,700 mm |
| Weight | 4,700 kg |
| Material support height | 800 mm |
