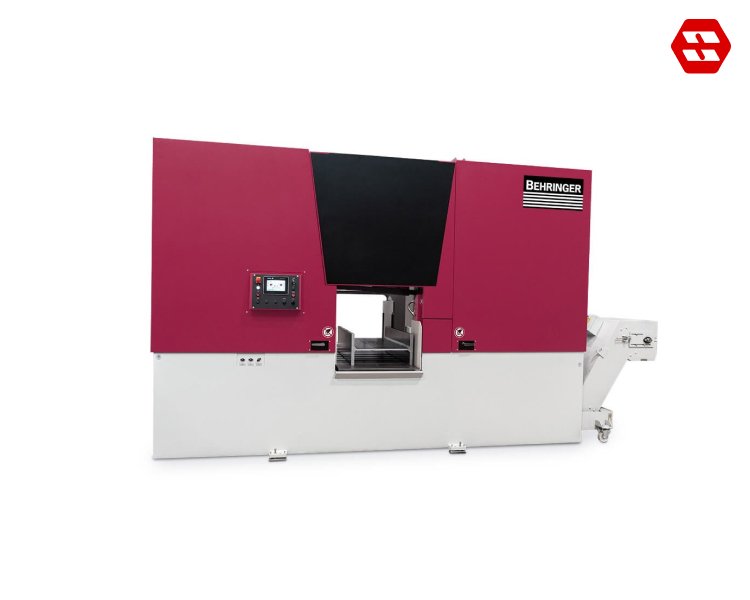

Production band saw HBE663A Performance

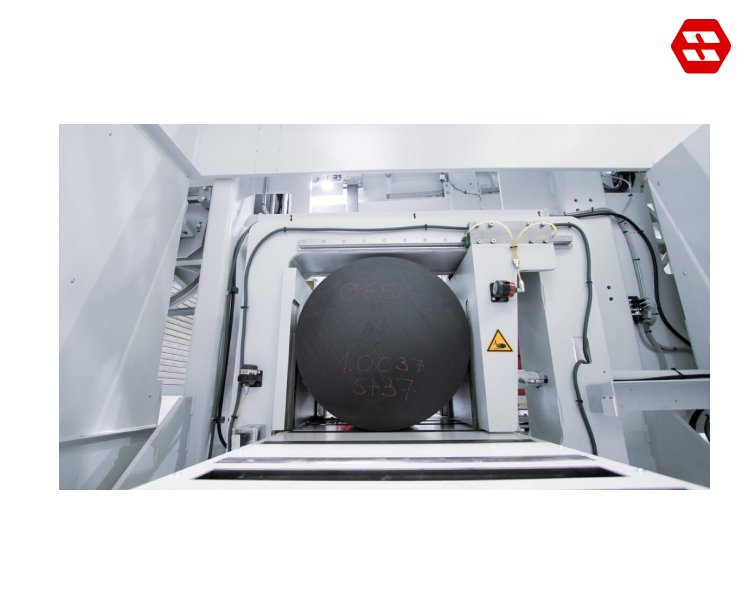

Massive feed gripper with ball screw

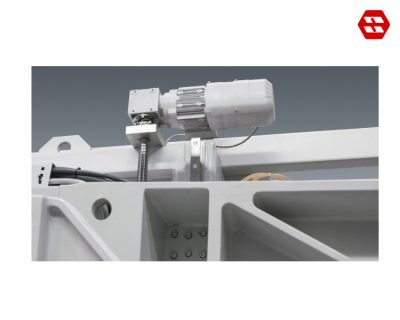

Servo-downfeed with cutting pressure control

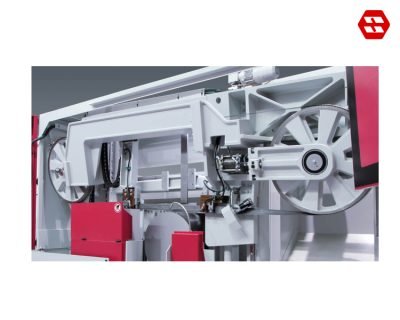

Cast iron band guiding parts

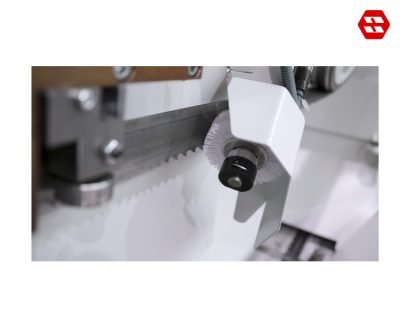

Electrically driven chip brush 5

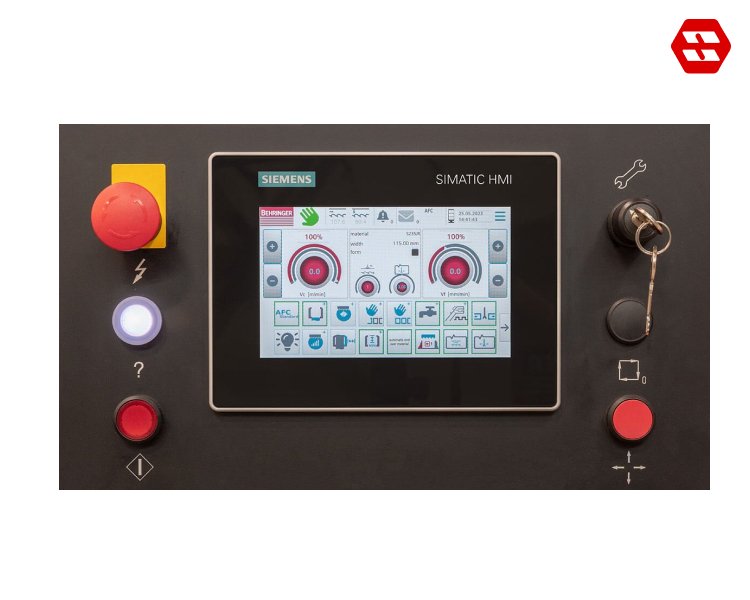

Intuitive BehrCtrl10 touch control 5
  • Production band saw HBE663A Performance
  • Massive feed gripper with ball screw
  • Servo-downfeed with cutting pressure control
  • Cast iron band guiding parts
  • Electrically driven chip brush 5
  • Intuitive BehrCtrl10 touch control 5

Bandsaw Machine HBE663A Performance BEHRINGER

Price range: Rp15 through Rp20

Mesin ini dirancang untuk pemotongan presisi dengan fitur dan efisiensi canggih. Konstruksinya yang kokoh dan kemampuan kinerja tinggi memastikan hasil pemotongan yang konsisten dan berkualitas tinggi. Dengan keserbagunaannya, ia dapat menangani berbagai material dengan akurat. Mesin ini cocok untuk lingkungan manufaktur yang bertujuan untuk mengoptimalkan produktivitas dan mencapai pemotongan presisi secara konsisten.

27 people are viewing this product right now

🔥 4 items sold in last 3 hours

or
Save to wishlist
Save to compare
SKU: N/A
Categories: , ,
Estimated delivery:May 27, 2026 - May 29, 2026

HBE663A Performance

Production band saw HBE663A Performance

Intuitive BehrCtrl10 Touch Control

Intuitive BehrCtrl10 touch control 3

Servo-Downfeed With Cutting Pressure Control

Servo-downfeed with cutting pressure control

Cast Iron Band Guiding Parts

Cast iron band guiding parts

Electrically Driven Chip Brush

Electrically driven chip brush 5

Features Of The Production Bandsaw
HBE663A Performance

Technical Data Production Bandsaw HBE663A Performance

Cutting Range
Cutting range 90° round660 mm
Cutting range 90° flat710 x 660 mm
Smallest dimension to be sawn round20 mm
Smallest dimension to be sawn flat20 x 20 mm
Performance Characteristics
Feeding length single stroke540 mm (option 1,500 | 3,000 mm)
Drive power5.5 kW
Blade speed10 – 110 m/min
Saw blade dimensions8,750 x 54 (67) x 1.6 mm
Rest piece length in automatic operation50 mm
Total power12 kW
Saw feedservo-feed via ball screw
Material feedball screw
Material clampinghydraulic
Saw blade cleaningelectrically driven chip brush
Dimensions and Weight
Length2,250 mm
Width4,400 mm
Height2,760 mm
Weight6,500 kg
Material support height800 mm
