HBM440A Performance Automatic

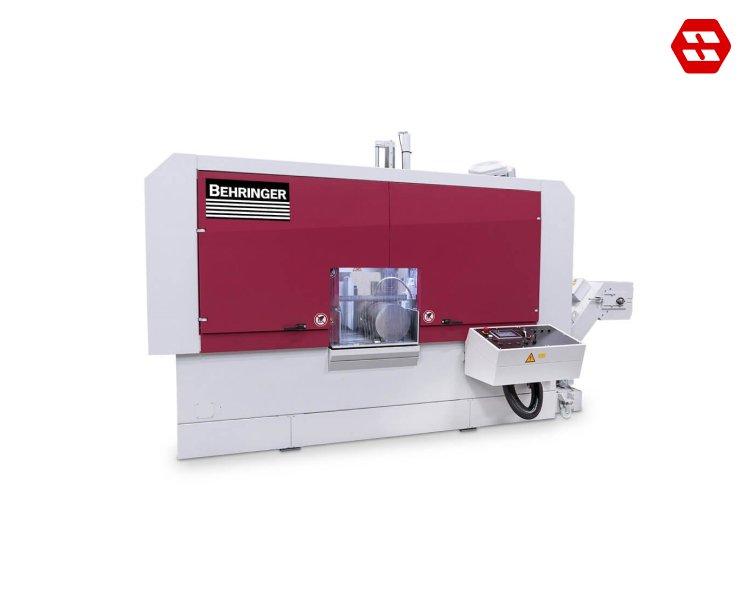

Production band saw HBM440A

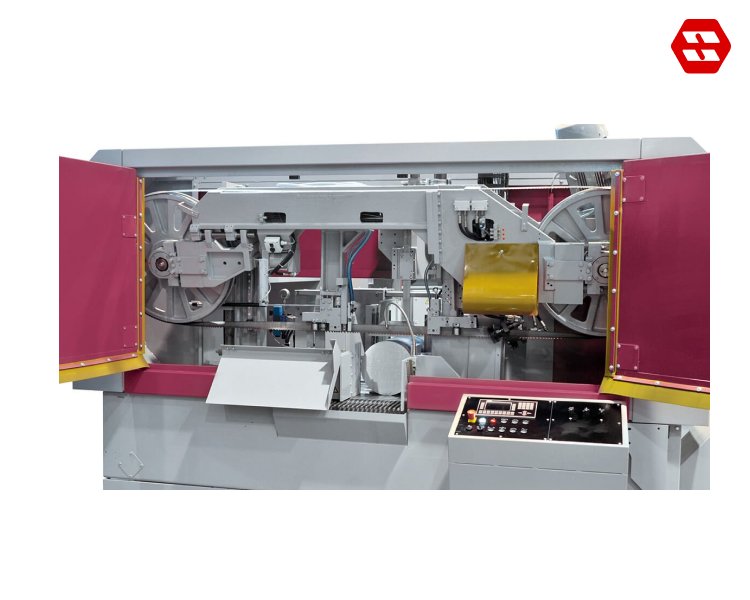

High-Performance Sawing Unit With BEHRINGER SpeedCutting Technology

High-performance sawing unit with BEHRINGER SpeedCutting technology

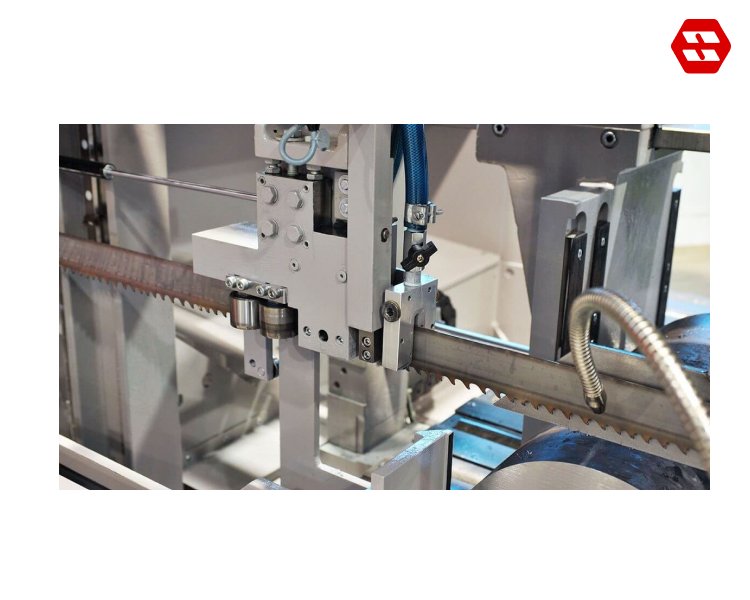

HBM Band Guide With High-Performance Cooling

HBM band guide with high-performance cooling

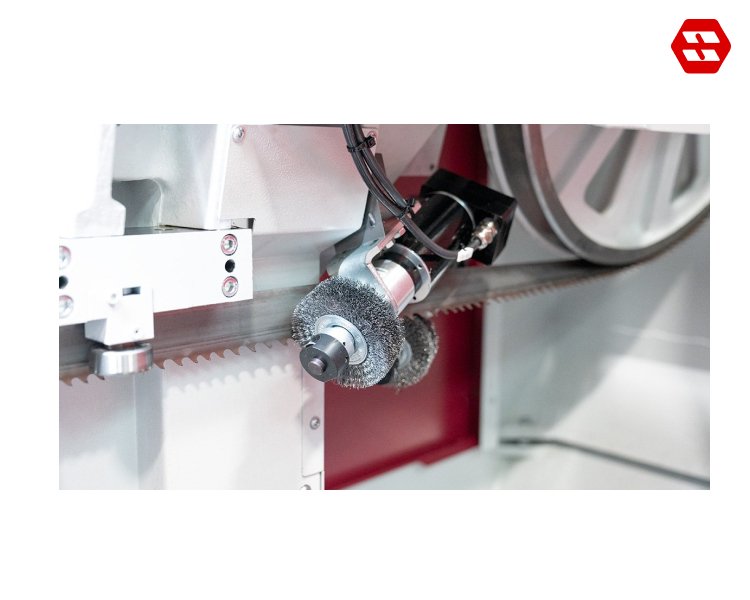

Duplex Chip Brush

Duplex chip brush

Cast Iron Band Guiding Parts

Cast iron band guiding parts 5

Features of The Production Bandsaw HBM440A

Technical Data Production Bandsaw HBM440A

Cutting Range
Cutting range 90° round440 mm
Cutting range 90° flat440  x 440 mm
Smallest dimension to be sawn round15 mm
Smallest dimension to be sawn flat12 x 12 mm
Dimensions and Weight
Length2,650 mm
Width4,385 mm
Height2,700 mm
Weight4,600 kg
Material support height800 mm
